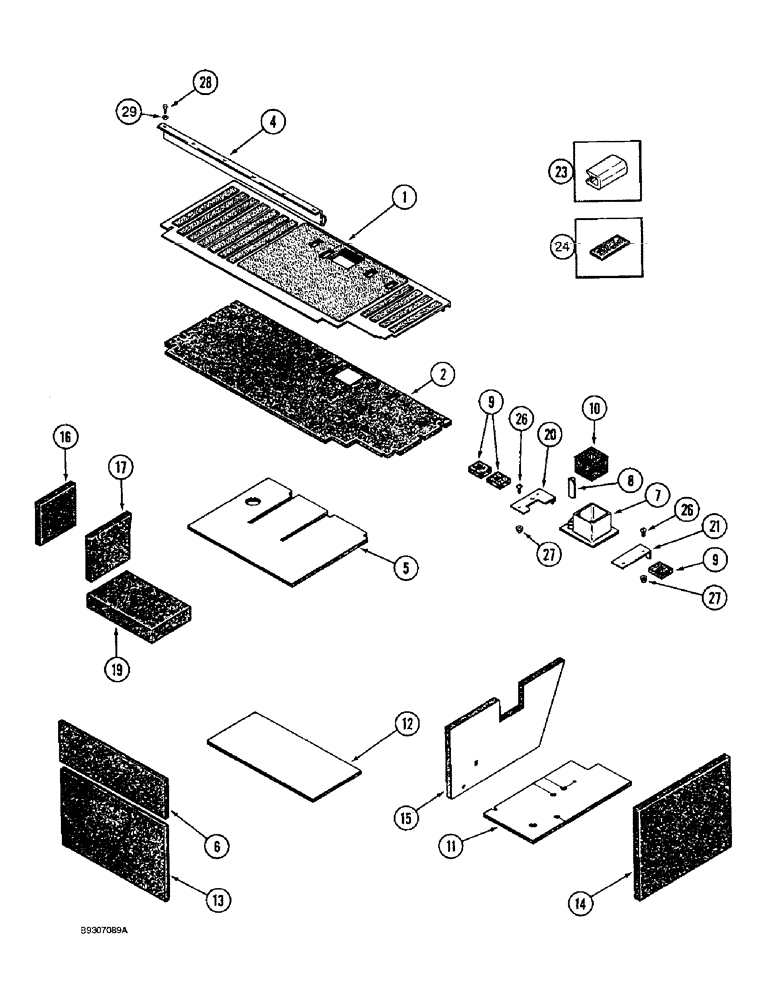

Запчасти Case IH 1644 (9G-10) - CAB, INSULATION AND FLOOR MAT (10) - CAB & AIR CONDITIONING

1

1329711C3

MAT

floor, replaces 1329711C3

1шт.

2

1326885C1

INSULATOR

PAD floor mat

1шт.

4

1338051C1

BRACKET

hold down floor mat, J type, 1352 mm

1шт.

5

98123C4

SHEET ASSY.

SUPPORT seat platform

1шт.

6

98008C2

INSULATOR

PAD center, rear support

1шт.

7

198075C1

INSULATOR

PAD steering pedestal

1шт.

8

187581C1

ANGLE

steering pedestal

1шт.

9

1321935C1

SEAL

pedal

3шт.

10

1324844C1

SEAL

steering pedestal

1шт.

11

196587C7

INSULATOR

PAD right hand cover, floor sound

1шт.

12

91793C2

INSULATOR

PAD center cover, floor sound

1шт.

13

91790C2

INSULATOR

PAD center rear sound

1шт.

14

1301219C2

SHEET

PAD insulation, right hand console sound, outer cover

1шт.

15

91797C1

INSULATOR

PAD right hand, inner

1шт.

16

196598C2

SHEET

PAD insulation, left hand, outer cover, console

1шт.

17

1322927C2

INSULATOR

PAD, left hand panel

1шт.

19

91792C3

SHEET ASSY.

PAD insulation, manual box sound

1шт.

20

1327567C1

PLATE

boot hold down, left hand

1шт.

21

1327568C1

PLATE

boot hold down, right hand

1шт.

23

1330107C2

STRIP

TRIM edge, 27-1/2 inch long, cut from 1330108CX bulk, rear inside, Serial Range: edge-cab

1шт.

24

101301A1

TAPE insulation, 24 inch (610 mm) long, cut from 1954475C1 bulk, 2 for L.H., 1 for R.H.

3шт.

23

98131C2

STRIP

TRIM edge, 12-1/2 inch (318 mm) long, cut from 1330108CX bulk

1шт.

26

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

6шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

28

275-1478

SELF-TAP SCREW,1/4" - 14 x 1/2"

hex, self tapping, 1/4-14 x 1/2 inch

4шт.

29

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

4шт.

1330108CX

SEAL,304.8mm L

TRIM edge, bulk 600 inch (15240 mm) long

1шт.

1954475C1

ROLL

TAPE bulk, 2- 1/2 (63.5) wide x 360 (9150) long x 1/8 inch (3 mm) thick

1шт.
