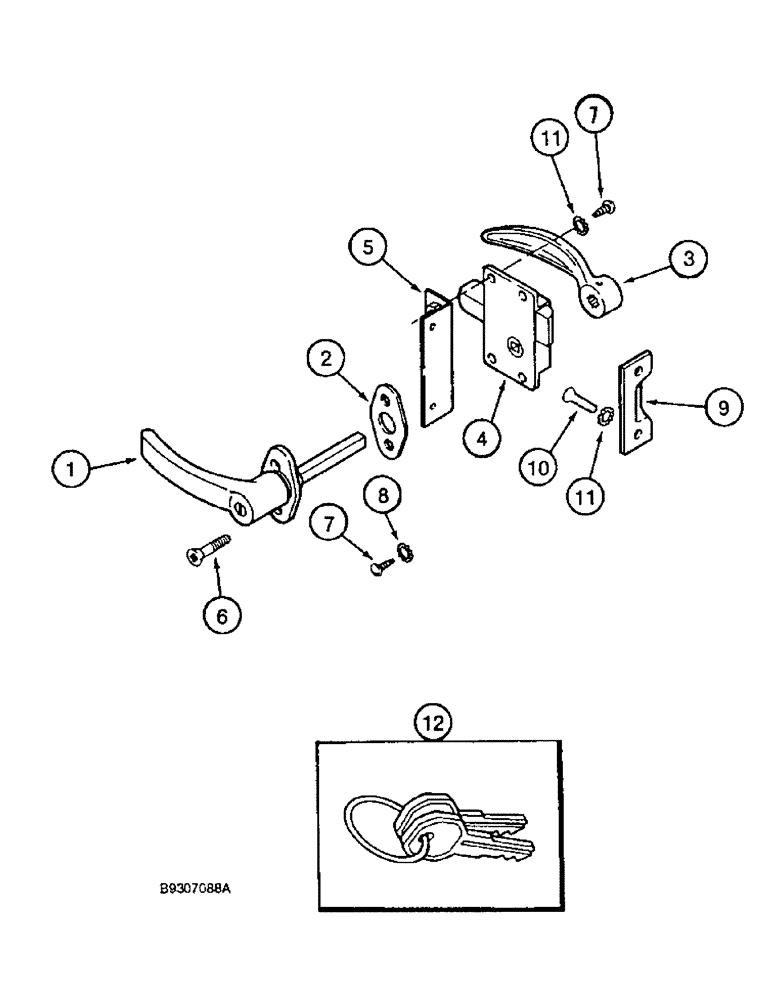

Запчасти Case IH 1644 (9G-08) - CAB, DOOR HANDLE (10) - CAB & AIR CONDITIONING

1329468C1

HANDLE

ASSEMBLY, door upper, order components, Includes: Ref. 1 - 4

1шт.

1

1329440C1

HANDLE

door outside lock

1шт.

2

1329441C1

GASKET

handle

1шт.

3

1329442C1

HANDLE

door, inside

1шт.

4

1329443C1

LATCH

door, inside

1шт.

5

1330184C1

BRACKET

ANGLE support latch

1шт.

6

489-11012

SCREW,Cross Oval Hd, #10"-32 x 3/4"

machine, oval Phillips No. 10 NF x 3/4 inch

2шт.

7

261-63512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

self tapping, pan Phillips No. 10 NF x 3/4 inch

6шт.

8

393-41020

LOCK WASHER,Ext Tooth, #10

external tooth lock, 3/16 inch

6шт.

9

392801R3

LATCH

STRIKER door catch

1шт.

10

442-1258

SCREW,Cross Oval Hd, 1/4"-20 x 1/2"

machine, oval Phillips 1/4 NC x 1/2 inch

2шт.

11

493-51026

LOCK WASHER,Ext Csk Tooth, 1/4"

countersunk, external tooth lock, 1/4 inch

2шт.

12

1970178C1

SET OF 2 KEYS

lock, set of 2

1шт.
