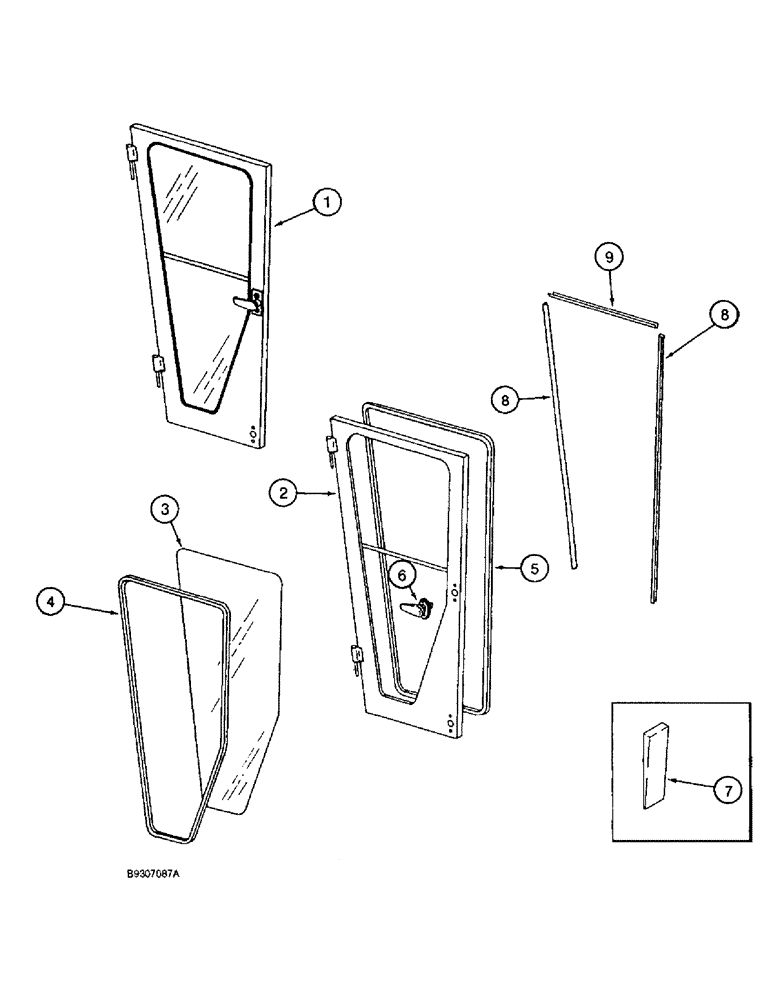

Запчасти Case IH 1644 (9G-06) - CAB, DOOR ASSEMBLY (10) - CAB & AIR CONDITIONING

1

1329477C3

DOOR

ASSEMBLY, cab, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

DOOR cab

1шт.

3

198184C1

GLASS

cab door

1шт.

4

180606C2

SEALING STRIP

SEAL, 130-1/2 (3315 mm) long, cut from 198131C2 bulk, door glass

1шт.

5

111606A1

SEAL, 162 inch (4115 mm) long, cut from 198522C1 bulk

1шт.

6

1329468C1

HANDLE

ASSEMBLY, door, see parts list Figure 9G-8

1шт.

7

111632A1

DOOR SEAL

RUBBER SEAL door wedge

4шт.

8

180618C1

STRIP

TRIM edge, 54 inch (1372 mm) long, cut from 1330108CX bulk, cab door opening

2шт.

9

180617C1

STRIP

TRIM edge, 26-1/8 inch, (664 mm) long, cut from 1330108CX bulk, cab door opening, upper

1шт.

198131C2

SEAL, GLASS

bulk, 120 inch (3048 mm) long

1шт.

198522C1

STRIP

SEAL bulk, 600 inch (15240 mm) long

1шт.

1330108CX

SEAL,304.8mm L

TRIM edge, bulk 600 inch (15240 mm) long

1шт.
