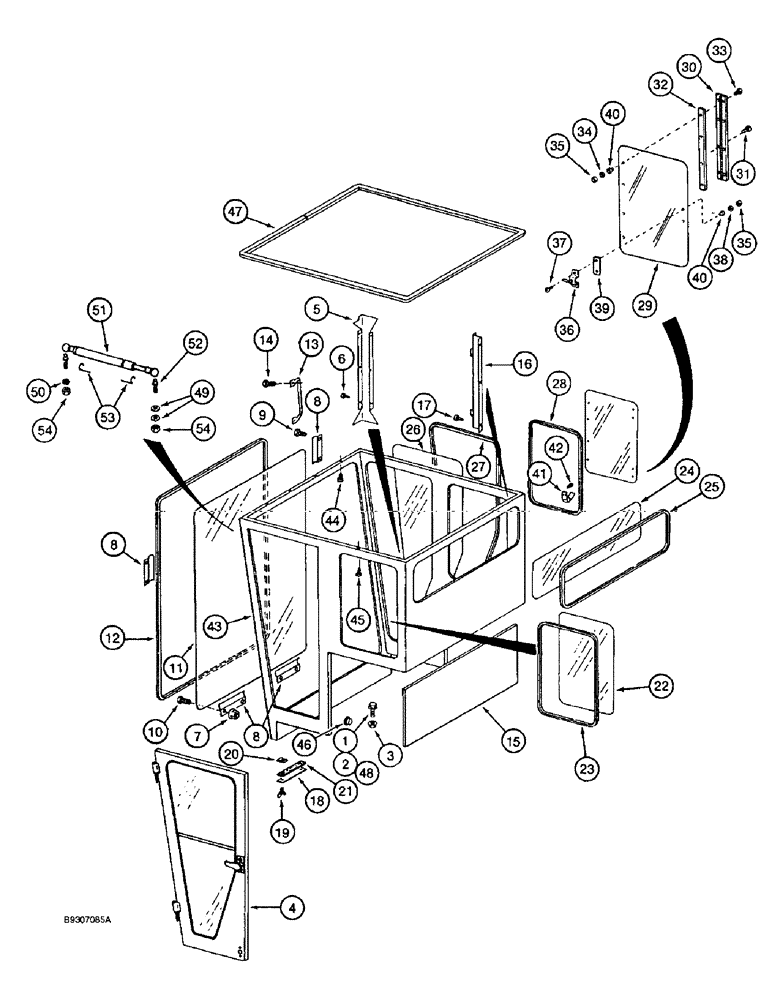

Запчасти Case IH 1644 (9G-02) - CAB, FRAME (10) - CAB & AIR CONDITIONING

REF

INSTRUCTION

CAB ASSEMBLY, ROPS, machinery Ref. order form Machinery Price List, with heater and air conditioning

1шт.

1

1327763C1

SCREW,Hex Wshr Hd, 3/8" - 16 x 3/4"

hex washer head, 3/8 NC x 3/4 inch

8шт.

2

1327764C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/4"

BOLT hex flange, polyseal, 3/8 NC x 1-1/4 inch

8шт.

3

1327765C1

LOCK NUT

hex flange, self locking, 3/8 inch NC

18шт.

4

1329477C3

DOOR

ASSEMBLY, cab, see parts list Figure 9G-6

1шт.

5

1276305C1

SUPPORT

hose cover, left hand

1шт.

6

261-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

self tapping, pan Phillips No. 10 NC x 3/8 inch

6шт.

7

1330064C1

FLANGE NUT

hex flange, self locking, polyseal, 5/16 inch NC

6шт.

8

196742C3

LARGE PLATE

PLATE, LARGE SUPPORT windshield retainer

5шт.

9

1987299C1

BOLT

BOLT hex, 5/16 NC x 3/4 inch

6шт.

10

1990501C1

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT hex, special locking, 5/16 NC x 1 inch

6шт.

11

1957276C1

GLASS

cab windshield

1шт.

12

180607C2

STRIP

TRIM edge, 225 inch (5715 mm) long, cut from 198131C2 bulk, windshield glass

1шт.

13

1321545C1

HANDLE

grab

1шт.

14

1990501C1

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT hex, special locking, 5/16 NC x 1 inch

2шт.

15

1321286C3

LINING

SHEET foam insulation, rear, acoustical

1шт.

16

1987173C1

PANEL ASSY.

SUPPORT filler, right hand

1шт.

17

261-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

self tapping, pan Phillips No. 10 NC x 3/8 inch

6шт.

18

1301129C1

DOOR

clean out cover

1шт.

19

377363R2

THUMB SCREW,1/4" - 20 x 3/4"

clean out cover

2шт.

20

1301128C2

SPRING NUT,U, 1/4" - 20 x 23.37mm, Gr 5

U type, 1/4 inch NC

2шт.

21

1301130C1

SEAL

seal, 9-11/16 inch, (246 mm) long, cut from 1300025C1 bulk hose

1шт.

22

198244C1

GLASS

left hand rear

1шт.

23

180604C2

STRIP

TRIM edge, 87 inch (2210 mm) long, cut from 198131C2 bulk trim cab, left hand rear glass

1шт.

24

198247C1

GLASS

cab rear

1шт.

25

180605C2

STRIP

TRIM edge, 123 inch, (3124 mm) long, cut from 198131C2 bulk

1шт.

26

198184C1

GLASS

cab

1шт.

27

180606C2

SEALING STRIP

130-1/2 (3315 mm) long, cut from 198131C2 bulk seal, cab right hand front glass

1шт.

28

SEAL 88 inch (2235 mm) long, cut from 1263038C1 bulk, weather, right hand rear window

1шт.

SEAL bulk, 600 inch (15240 mm) long

1шт.

STRIP seal, 12 inch (305 mm) long

1шт.

SEAL bulk, 300 inch (7620 mm) long

1шт.

REF

INSTRUCTION

CAB ASSEMBLY, Includes: Ref. 29 - 54

1шт.

29

1987172C1

GLASS

right hand rear window

1шт.

30

1301233C2

HINGE

right hand rear window

1шт.

31

261-6458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

self tapping, pan Phillips No. NF x 1/2 inch

4шт.

32

1301234C1

STRIP

SHIM hinge, right hand rear window

1шт.

33

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

4шт.

34

495-31022

WASHER,#10

4шт.

35

196922C1

LOCK NUT

hex, self locking, No. 10 window lock

1шт.

36

170404C1

HANDLE

right hand rear window lock

1шт.

37

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

2шт.

38

495-31022

WASHER,#10

2шт.

39

183585C1

STRIP

SHIM right hand rear window

1шт.

40

896274C1

BUSHING

window retainer cushion

6шт.

41

1281761C2

SPRING

window latch

1шт.

42

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

self tapping, pan Phillips No. 10-16 x 3/8 inch

2шт.

43

NSS

NOT SOLD SEPARAT

FRAME cab, order cab assembly

1шт.

44

1327768C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 38mm

self tapping, special, 5/16 inch

10шт.

45

1327545C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 32mm

self tapping, special

4шт.

46

1329797C1

PLUG

rubber tube

1шт.

47

180637C2

SEAL

TRIM edge, 220 inch (5588 mm) long, cut from 182747C1 bulk

1шт.

48

1330146C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/2"

hex washer head, special, 3/8 NC x 1-1/2 inch

2шт.

49

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

50

492-11031

LOCK WASHER,5/16"

1шт.

51

1280157C1

GAS STRUT

SPRING door control

1шт.

52

1340345C1

BALL STUD

BALL PIN STUD

2шт.

53

1304647C1

CLIP

retaining

2шт.

54

230-4215

NUT,5/16"-18, GA

1шт.

182747C1

DOOR SEAL

TRIM edge, bulk 600 inch (15240 mm) long

1шт.
