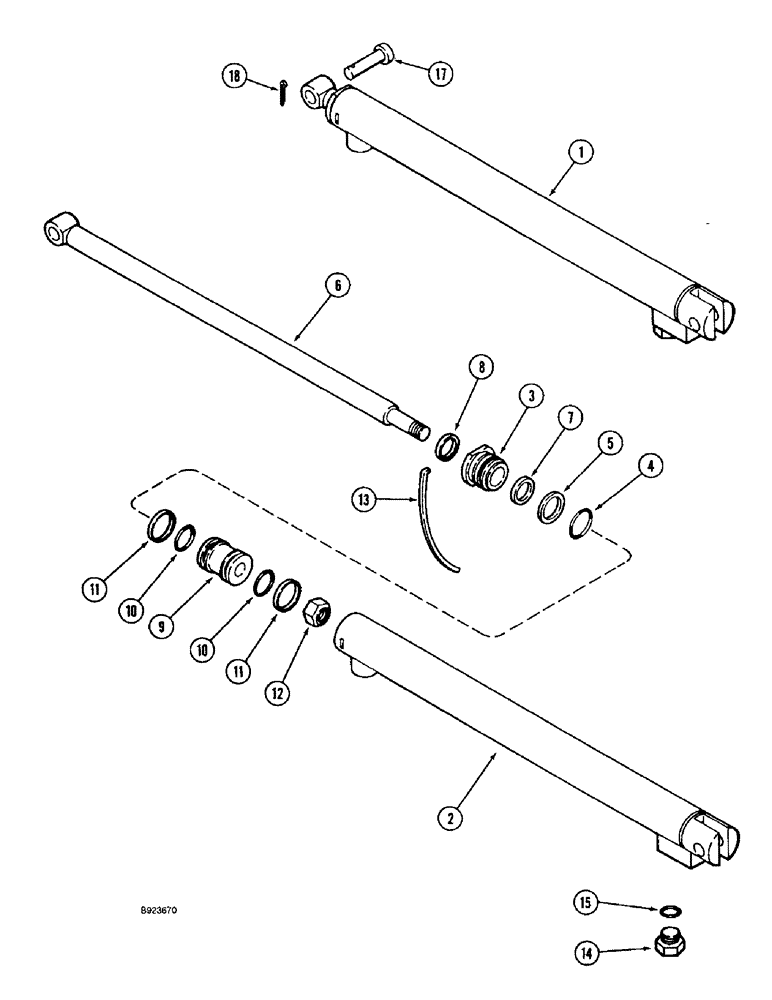

Запчасти Case IH 1644 (8-70) - UNLOADER TUBE SWING CYLINDER (07) - HYDRAULICS

1

1282488C92

CYLINDER ASSY.,Double Acting, 25.4mm Rod, 508.2mm Stroke

CYLINDER ASSEMBLY - 1-1/2 (38) ID x 20 inch (508mm) stroke htdraulic swing, Includes: Ref. 2 - 15

1шт.

1282488C92R

REMAN-HYD CYLINDER

1644 (1/93-12/94)

1шт.

1282488C92C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - cylinder

1шт.

3

1252291C1

HEAD

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16 x 1-1/2 inch, class 6

1шт.

Part of KIT, part number 1272677C94

1шт.

5

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

Part of KIT, part number 1272677C94

1шт.

6

1285720C1

ROD

ROD - piston

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

Part of KIT, part number 1272677C94

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

Part of KIT, part number 1272677C94

1шт.

9

1285719C1

PISTON

PISTON - cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

RING - 1-3/16 x 1-3/8 inch, class 5 seal 2

2шт.

Part of KIT, part number 1272677C94

1шт.

11

NSS

NOT SOLD SEPARAT

RING - seal

2шт.

Part of KIT, part number 1272677C94

1шт.

12

9411658

LOCK NUT,5/8"-11, GC

NUT - hex, self locking 5/8 inch NF, grade 8

1шт.

13

NSS

NOT SOLD SEPARAT

WIRE - retaining

1шт.

Part of KIT, part number 1272677C94

1шт.

14

9672438

PLUG,7/16" - 20 ORB

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - 1/4 inch, OD tube, class 6

1шт.

Part of KIT, part number 1272677C94

1шт.

17

28196R1

SPLIT PIN/SAFETY PIN

PIN - clevis 5/8 x 2-1/4 inch

2шт.

18

432-816

COTTER PIN,1/8" x 1"

2шт.

1272677C94

SEAL KIT

KIT seal includes Ref. 4, 5, 7, 8, 10, 11, 13, and 15

1шт.
