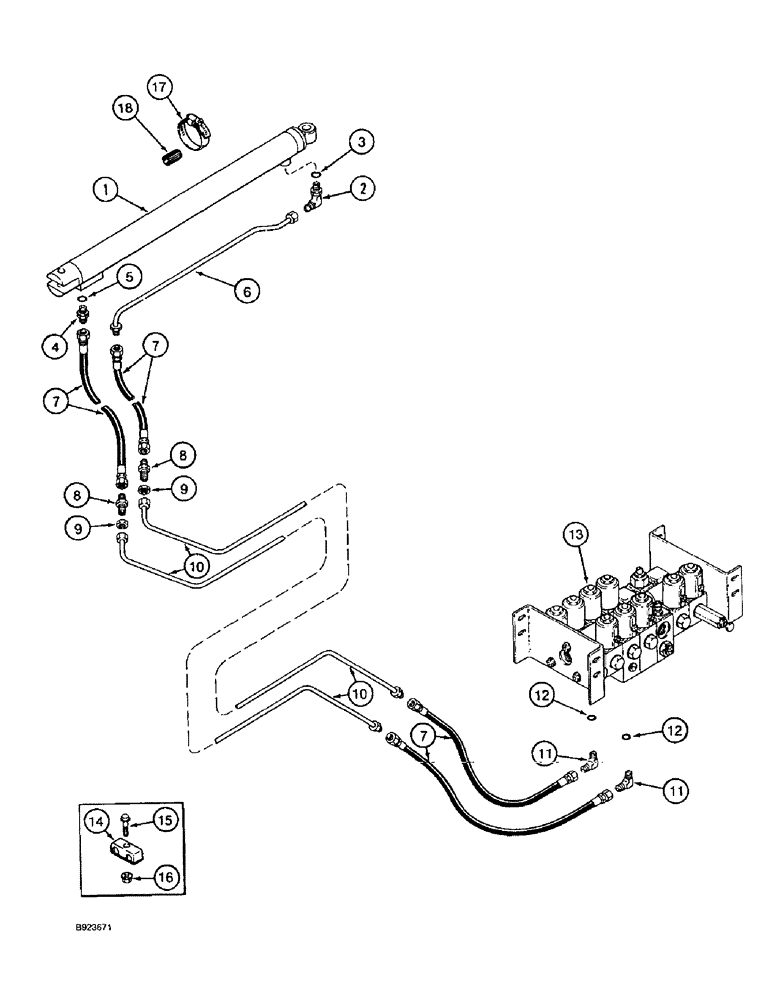

Запчасти Case IH 1644 (8-68) - UNLOADER TUBE SWING CYLINDER SYSTEM (07) - HYDRAULICS

1

1282488C92

CYLINDER ASSY.,Double Acting, 25.4mm Rod, 508.2mm Stroke

CYLINDER ASSEMBLY - 1-1/2 (38) ID x 20 inch (508 mm) stroke unloader swing, parts list Figure 8-70

1шт.

1282488C92R

REMAN-HYD CYLINDER

1644 (1/93-12/94)

1шт.

1282488C92C

CORE-HYD CYLINDER

Return Number

1шт.

2

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

ELBOW - 90 degree 7/16-20 inch flare x adj O-ring boss, Includes: Ref. 3

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

4

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER, Incl. Ref. 5

1шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

6

1317623C1

HYD TUBE,0.25" OD, 480, 45 mm Length

TUBE - unloader swing cylinder

1шт.

7

66880C1

HOSE,6.35mm ID x 508mm L, SAE 100R1

Unloader Swing

4шт.

8

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

ADAPTER - straight 7/16-20 inch flare x bulkhead flare

2шт.

9

218-1252

BHD LOCK NUT,Blkhd, 7/16"-20

NUT - hex, lock, bulkhead 7/16 inch NF

2шт.

10

196751C1

UNLOADING TUBE

TUBE - unloader swing cylinder

2шт.

11

218-5320

ELBOW,90 Degree, 7/16"-20, 37 Degree x 3/4"-16, O-Ring

ELBOW - 90 degree 7/16-20 flare x 3/4-16 inch adj O-ring boss, Includes: Ref. 12

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

O-RING, 8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list Figure 8-30 or 8-32

1шт.

14

183824C1

CLAMP

CLAMP - unloader swing tubes

2шт.

15

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

17

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

1шт.

18

163489C1

STRIP

INSULATOR - rubber 1/4 ID x 1-13/64 inch long

1шт.
