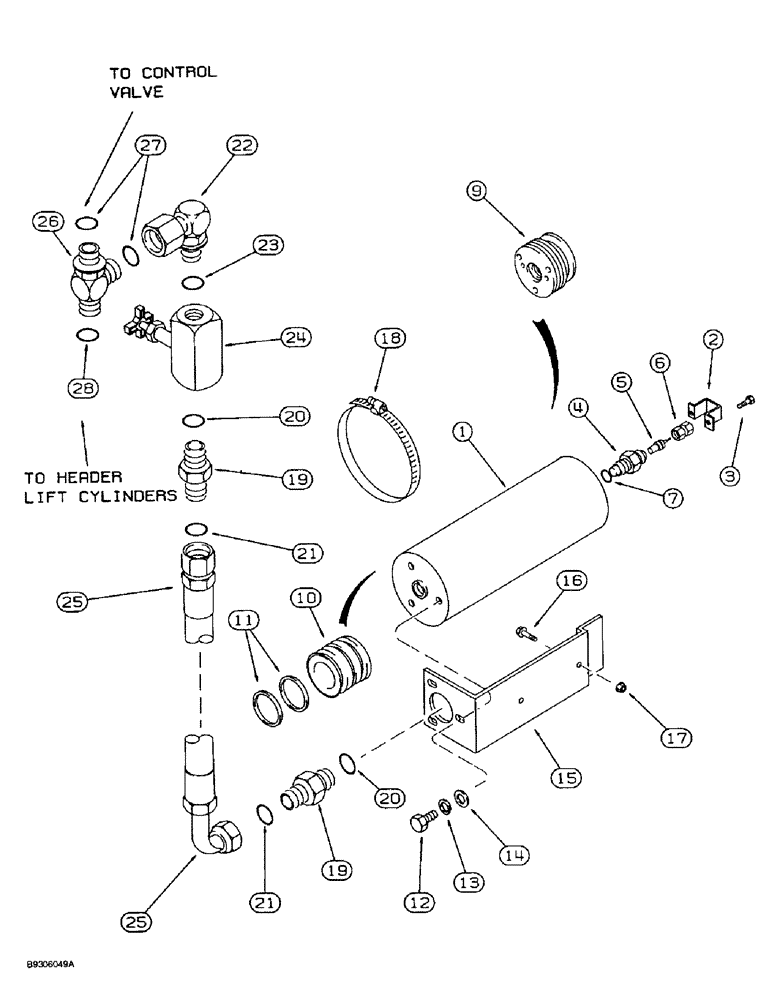

Запчасти Case IH 1644 (8-66) - ACCUMULATOR MOUNTING AND SYSTEM, ACCUMULATOR ASSEMBLY - (07) - HYDRAULICS

1978111C1

TANK

ACCUMULATOR ASSEMBLY - hydraulic with weld ends, no longer, availble, order 128191A1, accumulator assembly, ACCUMULATOR ASSEMBLY - 1978111C1, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - accumulator, ACCUMULATOR ASSEMBLY - 1978111C1

1шт.

2

1341920C1

PROTECTOR

GUARD - valve gas, ACCUMULATOR ASSEMBLY - 1978111C1

2шт.

3

276-14912

SELF-TAP SCREW,Hex Hd, 3/8" x 3/4"

SCREW - self tapping, hex head 3/8 NC x 3/4 inch, ACCUMULATOR ASSEMBLY - 1978111C1

1шт.

1978142C1

VALVE

VALVE ASSEMBLY - charge accumulator, ACCUMULATOR ASSEMBLY - 1978111C1, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - accumulator charging, ACCUMULATOR ASSEMBLY - 1978111C1

1шт.

5

1978143C1

PISTON

CORE - vavle, ACCUMULATOR ASSEMBLY - 1978111C1

1шт.

6

1978144C1

CAP

CAP - vavle, ACCUMULATOR ASSEMBLY - 1978111C1

1шт.

7

1978158C1

O-RING

O-RING - valve sealing, ACCUMULATOR ASSEMBLY - 1978111C1

1шт.

8

1341919C1

SEAL KIT

KIT - seal, accumulator not shown, ACCUMULATOR ASSEMBLY - 1978111C1

1шт.

128191A1

ACCUMULATOR,1.9L

ACCUMULATOR ASSEMBLY - hydraulic with threaded ends, replaces 1978111C1, ACCUMULATOR ASSEMBLY - 128191A1, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - accumulator, ACCUMULATOR ASSEMBLY - 128191A1

1шт.

2

1341920C1

PROTECTOR

GUARD - vavle gas, ACCUMULATOR ASSEMBLY - 128191A1

1шт.

3

276-14912

SELF-TAP SCREW,Hex Hd, 3/8" x 3/4"

SCREW - self-tapping, hes head 3/8 NC x 3/4 inch, ACCUMULATOR ASSEMBLY - 128191A1

2шт.

1978142C1

VALVE

VALVE ASSEMBLY - charge accumulator, ACCUMULATOR ASSEMBLY - 128191A1, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - accumulator charging, ACCUMULATOR ASSEMBLY - 128191A1

1шт.

5

1978143C1

PISTON

CORE - valve, ACCUMULATOR ASSEMBLY - 128191A1

1шт.

6

1978144C1

CAP

CAP - valve, ACCUMULATOR ASSEMBLY - 128191A1

1шт.

7

1978158C1

O-RING

O-RING - valve sealing, ACCUMULATOR ASSEMBLY - 128191A1

1шт.

8

1341919C1

SEAL KIT

KIT - seal, accumulator not shown, ACCUMULATOR ASSEMBLY - 128191A1

1шт.

9

S301363

GLAND

GLAND - accumulator, ACCUMULATOR ASSEMBLY - 128191A1

1шт.

10

S301364

PISTON

PISTON - accumulator, ACCUMULATOR ASSEMBLY - 128191A1

1шт.

11

S301365

RING

RING - wear, teflon, piston, ACCUMULATOR ASSEMBLY - 128191A1

2шт.

12

414-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

BOLT - hex 1/2 NF x 3/4 inch, MOUNTING AND SYSTEM

3шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

Mounting and system

3шт.

14

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

WASHER - flat 17/32 x 1-1/4 x 5/32, MOUNTING AND SYSTEM

3шт.

15

1979278C2

SUPPORT

SUPPORT - accumulator, MOUNTING AND SYSTEM

1шт.

16

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

Mounting and System

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Mounting and System

2шт.

18

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

Adj., Mounting and system

1шт.

19

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Adapter - straight, Mounting and System, Includes Ref. 20 and 21

2шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

O-RING, 8-1, 90 Duro, .644" ID x .087" Thk, Mounting and system

1шт.

21

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Mounting and system

1шт.

22

201-349

90 ELBOW,90 Degree Elbow, 13/16" - 16 Female ORFS x 3/4" - 16 Male ORB

ELBOW - 90 deg 13/16-16 swivel face seal x 3/4-16 inch adj O-ring boss, MOUNTING AND SYSTEM, Includes: Ref. 23

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

O-RING, 8-1, 90 Duro, .644" ID x .087" Thk, Mounting and system

1шт.

24

183510C1

VALVE

VALVE - needle, MOUNTING AND SYSTEM

1шт.

25

1989665C1

HOSE

HOSE - 32 inch (815mm) long accumulator, MOUNTING AND SYSTEM

1шт.

26

201-412

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

TEE - 13/16-16 face branch x face x 3/4-16 inch adj O-ring, MOUNTING AND SYSTEM, Includes: Ref. 27 and 28

1шт.

27

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Mounting and system

2шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

O-RING, 8-1, 90 Duro, .644" ID x .087" Thk, Mounting and system

1шт.
