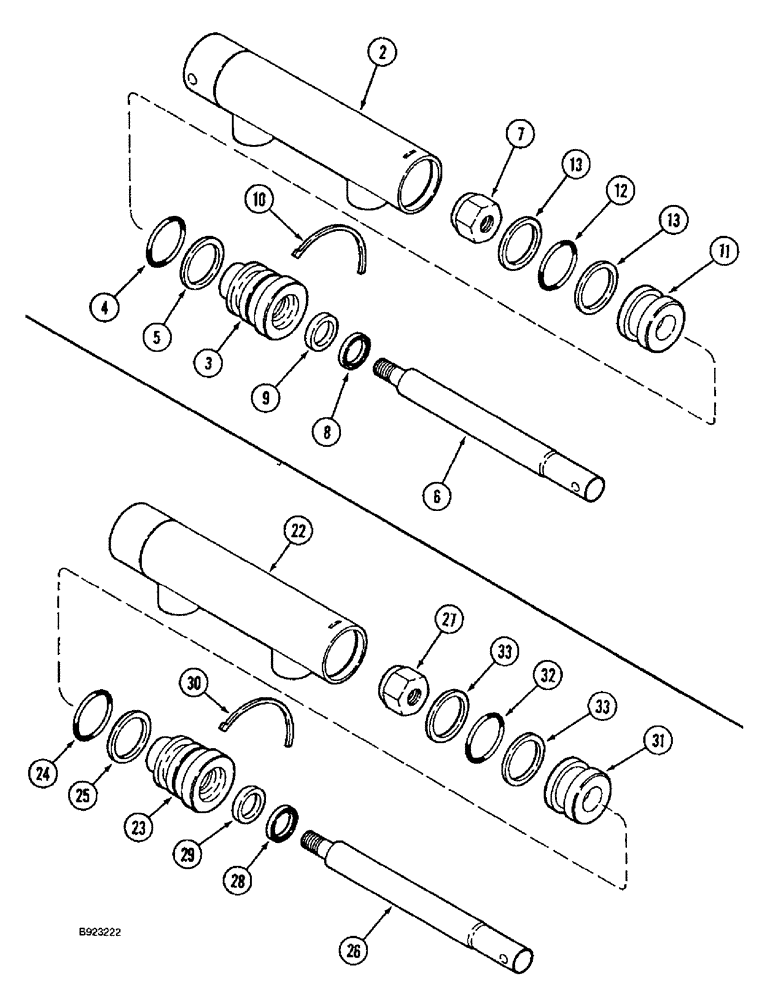

Запчасти Case IH 1644 (8-64) - FEEDER CLUTCH CYLINDER, SEPARATOR CLUTCH CYLINDER (07) - HYDRAULICS

133405C92

CYLINDER

CYLINDER ASSEMBLY - 2 (51) ID x 2-1/2 inch (63.5 mm) stroke feeder clutch, feeder clutch cylinder, Includes: Ref. 2 - 13

1шт.

87337239R

REMAN-HYD CYLINDER

1644 CASE IH AXIAL-FLOW COMBINE, CYLINDER ASSEMBLY - 2 (51) ID x 2-1/2 inch (63.5 mm) stroke feeder clutch, feeder clutch cylinder (1/93-12/94), Reman for New PN 133405C92

1шт.

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder, feeder clutch cylinder

1шт.

3

108641C1

GLAND

GLAND - cylinder, feeder clutch cylinder

1шт.

Part of KIT, part number 63884C92

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch, feeder clutch cylinder

1шт.

Part of KIT, part number 63884C92

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup, feeder clutch cylinder

1шт.

6

108639C1

PISTON ROD

ROD - piston, cylinder, feeder clutch cylinder

1шт.

7

232-41110

NUT,5/8"-11, GC

Feeder clutch cylinder

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - piston rod seal, feeder clutch cylinder

1шт.

Part of KIT, part number 63884C92

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston rod urethane, feeder clutch cylinder

1шт.

Part of KIT, part number 63884C92

1шт.

10

NSS

NOT SOLD SEPARAT

WIRE - retaining, feeder clutch cylinder

1шт.

Part of KIT, part number 63884C92

1шт.

11

108640C2

PISTON

PISTON - cylinder, feeder clutch cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch, feeder clutch cylinder

1шт.

Part of KIT, part number 63884C92

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - backup, O-ring, feeder clutch cylinder

2шт.

63884C92

SEAL KIT

KIT - seal O-ring and seal service, includes: Ref. 4, 5, 8, 9, 10, 12, feeder clutch cylinder

1шт.

133408C92

CYLINDER,Double Acting, 25.4mm Rod, 63.5mm Stroke

CYLINDER ASSEMBLY - 2 (51) ID x 12-1/2 inch (318 mm) stroke separator clutch, separator clutch cylinder, Includes: Ref. 22 - 33

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - cylinder, separator clutch cylinder

1шт.

23

108641C1

GLAND

GLAND - cylinder, separator clutch cylinder

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch, separator clutch cylinder

1шт.

Part of KIT, part number 63884C92

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER - backup, O-ring, separator clutch cylinder

1шт.

Part of KIT, part number 63884C92

1шт.

26

108639C1

PISTON ROD

ROD - piston, cylinder, separator clutch cylinder

1шт.

27

232-41110

NUT,5/8"-11, GC

Separator clutch cylinder

1шт.

28

NSS

NOT SOLD SEPARAT

WIPER - piston rod seal, separator clutch cylinder

1шт.

Part of KIT, part number 63884C92

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL - urethane, piston rod, separator clutch cylinder

1шт.

Part of KIT, part number 63884C92

1шт.

30

NSS

NOT SOLD SEPARAT

WIRE - retaining, separator clutch cylinder

1шт.

Part of KIT, part number 63884C92

1шт.

31

108640C2

PISTON

PISTON - cylinder, separator clutch cylinder

1шт.

32

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch, separator clutch cylinder

1шт.

Part of KIT, part number 63884C92

1шт.

33

NSS

NOT SOLD SEPARAT

WASHER - backup, O-ring, separator clutch cylinder

2шт.

63884C92

SEAL KIT

KIT - seal O-ring and seal service, inludes: Ref. 24, 25, 28, 29, 30, 32, separator clutch cylinder

1шт.
