(1644) - CASE IH AXIAL-FLOW COMBINE (1/93-12/94)
/
(07) - HYDRAULICS
/

(8-62) - FEEDER AND SEPARATOR CLUTCH VALVE, CONTROL CONCEPTS, MODULAR

Запчасти Case IH 1644 (8-62) - FEEDER AND SEPARATOR CLUTCH VALVE, CONTROL CONCEPTS, MODULAR (07) - HYDRAULICS

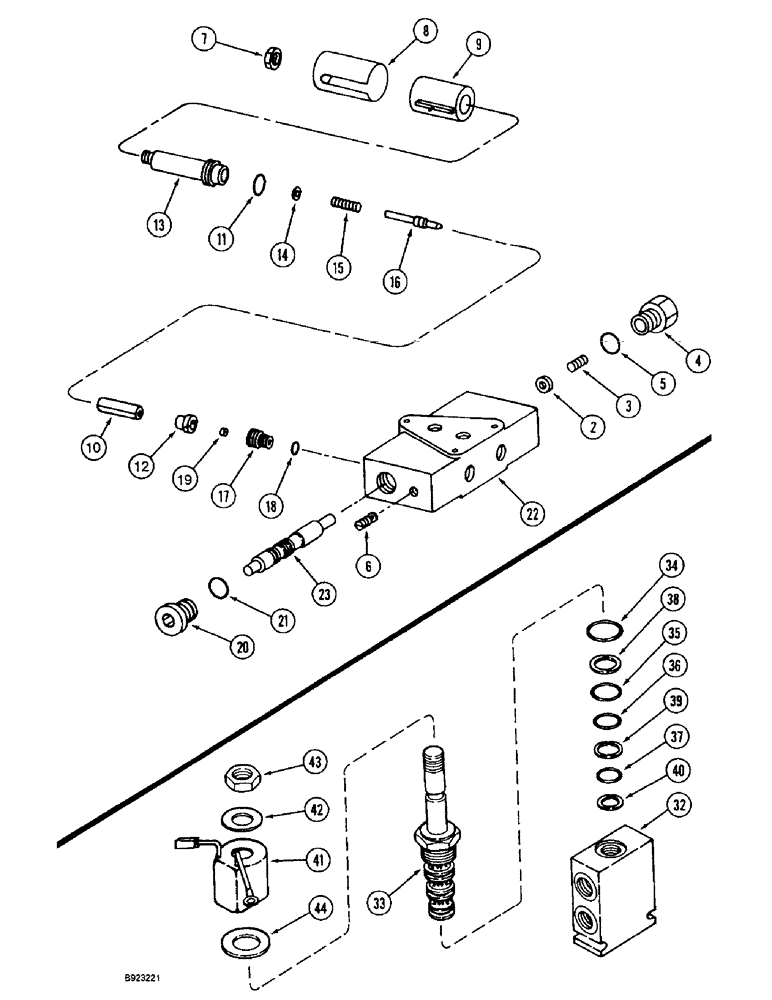

Схема запчастей Case IH 1644 - (8-62) - FEEDER AND SEPARATOR CLUTCH VALVE, CONTROL CONCEPTS, MODULAR (07) - HYDRAULICS
3
7
16
18
36
5
34
17
10
23
39
6
14
22
15
32
11
13
41
12
35
43
2
37
4
40
9
44
8
33
42
21
38
20
19

№

Артикул

Название

Примечание

Количество

1301171C91

VALVE

VALVE ASSEMBLY - feeder and separator clutch, control concepts, Includes: Ref. 2 - 23

1шт.

2

1301687C1

WASHER

RETAINER - spring, control concepts

1шт.

3

1301728C1

SPRING

SPRING - valve, control concepts

1шт.

4

1301686C1

CAP

PLUG - hex, special end, control concepts

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Control concepts

2шт.

6

1301631C1

PLUG,5/16" - 24 x 14.80mm, Slotted, HT

PLUG - valve body seal, control concepts

1шт.

7

107825

NUT,Stamped, 1/2"-20

NUT - hex 1/2 inch NF samped, control concepts

1шт.

8

1301632C1

CAP

COVER - coil, control concepts

1шт.

9

1301730C1

VALVE

COIL - valve , control concepts

1шт.

10

1301648C1

ARMATURE

ARMATURE - valve, control concepts

1шт.

11

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

Control concepts

1шт.

12

1301624C1

BUSHING

BUSHING - poppet, control concepts

1шт.

13

1301627C1

STUD

SLEEVE - poppet, control concepts

1шт.

14

1301642C1

WASHER

WASHER - spring retaining, control concepts

1шт.

15

1301729C1

SPRING

SPRING - poppet , control concepts

1шт.

16

1301647C1

POPPET

POPPET - valve, control concepts

1шт.

17

1301625C1

ORIFICE

ORIFICE - valve, control concepts

1шт.

18

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

Control concepts

1шт.

19

1301649C1

PLUG

PLUG - orifice , control concepts

1шт.

20

86625138

PLUG,7/18" - 14

Control Concepts, Includes Ref. 21

1шт.

21

529909R1

O-RING,1.78mm Thk x 2.54mm ID

O-RING - 7/64 ID x 1/4 inch wide, control concepts

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - valve, control concepts

1шт.

23

NSS

NOT SOLD SEPARAT

SPOOL - valve, control concepts

1шт.

187505C91

VALVE

VALVE ASSEMBLY - feeder and separator clutch, modular control, Includes: Ref. 32 - 44

1шт.

32

187851C1

BODY

BODY - valve, modular control

1шт.

33

187849C1

SOLENOID VALVE

VALVE - solenoid, 4-way, cartridge only, modular control, Includes: Ref. 34 - 40

1шт.

187850C1

SEAL KIT

KIT - seal replacement O-ring and washer, modular control, Includes: Ref. 34 - 40

1шт.

34

NSS

NOT SOLD SEPARAT

O-RING - upper, modular control

1шт.

35

NSS

NOT SOLD SEPARAT

O-RING - middle, large, modular control

1шт.

36

NSS

NOT SOLD SEPARAT

O-RING - middle, small, modular control

1шт.

37

NSS

NOT SOLD SEPARAT

O-RING - lower, modular control

1шт.

38

NSS

NOT SOLD SEPARAT

WASHER - backup, large O-ring, modular control

1шт.

39

NSS

NOT SOLD SEPARAT

WASHER - backup, small O-ring, modular control

1шт.

40

NSS

NOT SOLD SEPARAT

WASHER - backup, lower O-ring, modular control

1шт.

187852C1

SWITCH

KIT - solenoid coil, modular control, Includes: Ref. 41 - 44

1шт.

41

NSS

NOT SOLD SEPARAT

COIL AND HOUSING ASSEMBLY - solenoid, modular control

1шт.

42

NSS

NOT SOLD SEPARAT

PLATE - name, modular control

1шт.

43

NSS

NOT SOLD SEPARAT

NUT - valve, modular control

1шт.

44

NSS

NOT SOLD SEPARAT

PLATE - cover, modular control

1шт.

Выбрано товаров: 39
