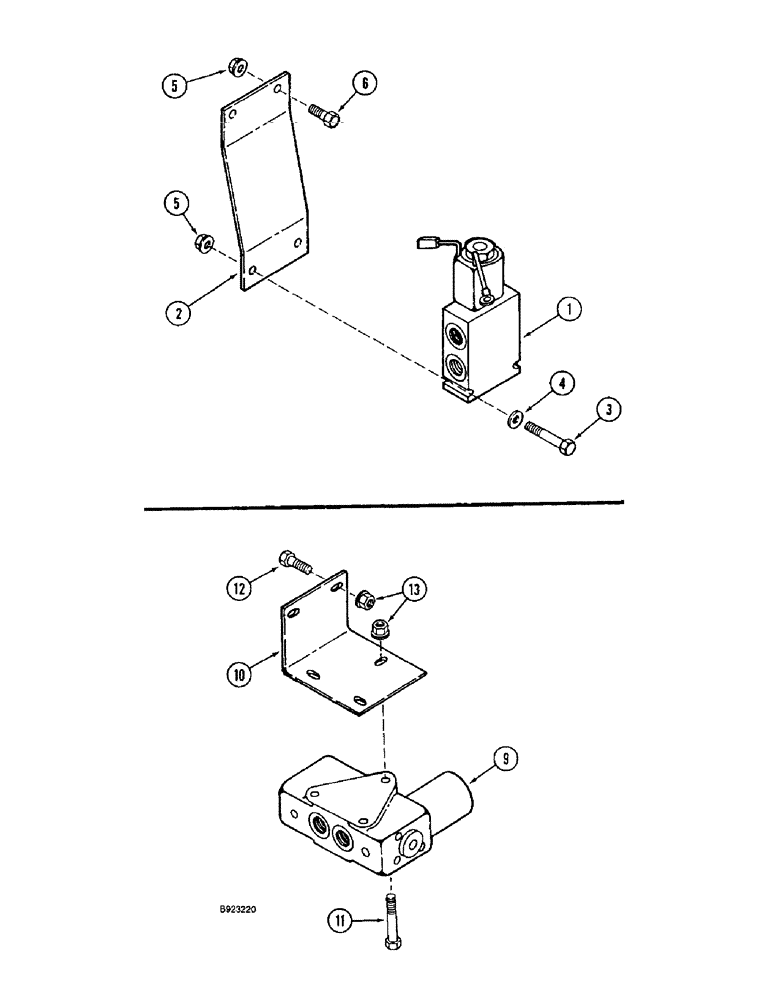

Запчасти Case IH 1644 (8-60) - SEPARATOR CLUTCH VALVE MOUNTING, MODULAR CONTROLS, CONTROL (07) - HYDRAULICS

1

187505C91

VALVE

VALVE ASSEMBLY - seaparator clutch, parts list Figure 8-62, modular controls

1шт.

2

187506C1

SUPPORT

SUPPORT - separator clutch valve, modular controls

1шт.

3

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Modular controls

2шт.

4

495-81113

WASHER,0.34" ID x 0.75" OD x 0.18" Thk

WASHER - flat 11/32 x 3/4 x 3/16 inch, modular controls

2шт.

5

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

Modular controls

4шт.

6

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Modular controls

2шт.

9

1301171C91

VALVE

VALVE ASSEMBLY - feeder and separator clutch parts list Figure 8-62, control concepts

1шт.

10

1301037C1

ANGLE

BRACKET - mounting, separator clutch parts list Figure 8-62, control concepts

1шт.

11

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

Control concepts

3шт.

12

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Control concepts

2шт.

13

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

5шт.
