(1644) - CASE IH AXIAL-FLOW COMBINE (1/93-12/94)
/
(07) - HYDRAULICS
/

(8-58) - SEPARATOR CLUTCH SYSTEM, CONTROL CONCEPTS, MODULAR CONTROLS

Запчасти Case IH 1644 (8-58) - SEPARATOR CLUTCH SYSTEM, CONTROL CONCEPTS, MODULAR CONTROLS (07) - HYDRAULICS

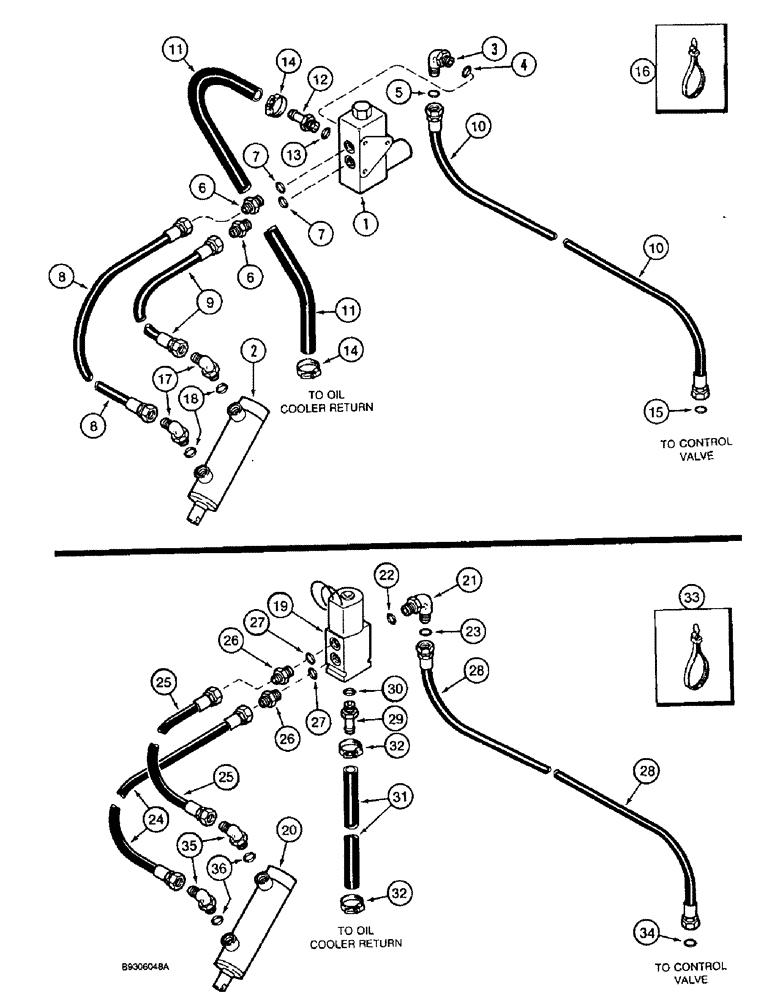

Схема запчастей Case IH 1644 - (8-58) - SEPARATOR CLUTCH SYSTEM, CONTROL CONCEPTS, MODULAR CONTROLS (07) - HYDRAULICS
36
11
1
31
28
4
6
27
23
20
30
29
6
2
25
3
7
9
28
22
25
10
13
15
7
16
27
8
24
32
26
14
11
14
8
21
26
19
34
32
10
12
5
18
33
35
17

№

Артикул

Название

Примечание

Количество

1

1301171C91

VALVE

VALVE ASSEMBLY - feeder and seperator clutch parts list Figure 8-62, Control Concepts

1шт.

2

133408C92

CYLINDER,Double Acting, 25.4mm Rod, 63.5mm Stroke

Cylinder ASSEMBLY - 2 (51) ID x 12-1/2 inch (318 mm) stroke hydraulic, parts list Figure 8-64, Control Concepts

1шт.

3

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Control Concepts, Includes: Ref. 4 and 5

1шт.

5

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Control Concepts

1шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Control Concepts, Incl. Ref. 7

2шт.

8

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

Separator clutch disengage, Control Concepts

1шт.

9

598931R91

HYDRAULIC HOSE,9.65 mm ID x 431.80 mm, SAE 100R1

HOSE - 17 inch (432 mm) long separator clutch engage, Control Concepts

1шт.

10

1541716C1

HOSE

HOSE - 35 incg (890 mm) long separator clutch pressure, Control Concepts

1шт.

11

187619C2

HOSE

HOSE - 22 inch (559 mm) long, cut from 364357C1 bulk hose see below, Control Concepts

1шт.

12

198036C1

SPARE PART ADAPTER - straight, special 3/8 inch barb end x 9/16 inch PT, Control Concepts, Includes: Ref. 13

1шт.

14

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

Adjustable, Control concepts

2шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Control Concepts

2шт.

16

702093C1

CABLE TIE

CABLE STRAP nylon, Control Concepts

1шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ELBOW - 90 degree 9/16-18 inch flare x adj O-ring boss, Control Concepts, Includes: Ref. 18

2шт.

19

187505C91

VALVE

VALVE ASSEMBLY - separator clutch, parts list Figure 8-62, Modular Controls

1шт.

20

133408C92

CYLINDER,Double Acting, 25.4mm Rod, 63.5mm Stroke

CYLINDER ASSEMBLY - 2 (51) ID x 12-1/2 inch (318 mm) stroke hydraulic, parts list Figure 8-64, Modular Controls

1шт.

21

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Modular Controls, Includes: Ref. 22 and 23

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Modular Controls

1шт.

24

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

Separator clutch disengage, Modular Controls

1шт.

25

598931R91

HYDRAULIC HOSE,9.65 mm ID x 431.80 mm, SAE 100R1

HOSE - 17 inch (432 mm) long seperator clutch engage, Modular Controls

1шт.

26

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Modular Controls, Incl. Ref. 27

2шт.

28

1541716C1

HOSE

HOSE - 35 inch (890 mm) long seperator clutch pressure, Modular Controls

1шт.

29

178036C1

CONNECTOR, ELEC

CONNECTOR ADAPTER - straight, special 3/8 inch barb end x 9/16 inch PT, Modular Controls, Includes: Ref. 30

1шт.

31

187619C2

HOSE

HOSE - 22 inch (559 mm) long cut from 364357C1 bulk hose see below, Modular Controls

1шт.

32

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

Adjustable, Modular controls

2шт.

33

702093C1

CABLE TIE

CABLE STRAP nylon, Modular Controls

1шт.

34

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Modular Controls

2шт.

35

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ELBOW - 90 degree 9/16-18 inch flare x adj O-ring boss, Modular Controls, Includes: Ref. 36

2шт.

364357C1

LARGE HOSE

HOSE,LARGE HOSE - bulk 3/8 (10) ID x 600 inch (15240 mm) long, Modular Controls

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Control concepts

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Control concepts

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Control concepts

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Control concepts

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Modular controls

1шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Modular controls

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Modular controls

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Modular controls

1шт.
