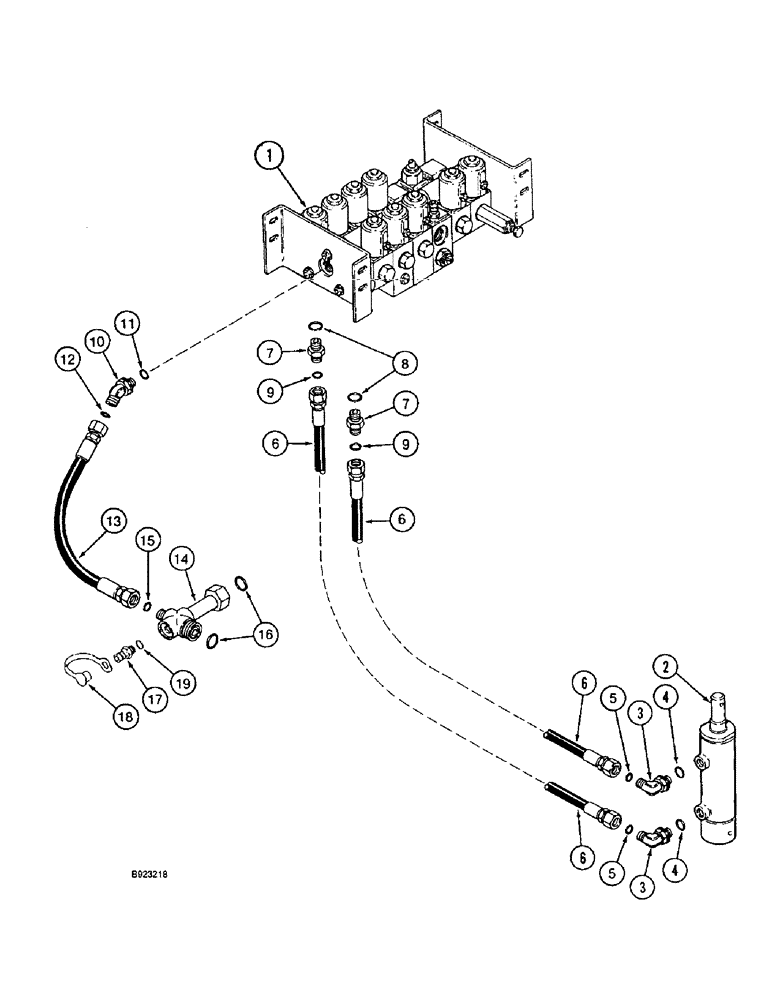

Запчасти Case IH 1644 (8-56) - FEEDER CLUTCH SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list Figure 8-30 or 8-32

1шт.

2

133405C92

CYLINDER

CYLINDER ASSEMBLY - 2 (51) ID x 2-1/2 inch (63.5 mm) stroke parts list Figure 8-64

1шт.

2

87337239R

REMAN-HYD CYLINDER

1644 CASE IH AXIAL-FLOW COMBINE, CYLINDER ASSEMBLY - 2 (51) ID x 2-1/2 inch (63.5 mm) (1/93-12/94), Reman for New PN 133405C92

1шт.

2

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

3

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Includes: Ref. 4 and 5

2шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - 3/8 ID x 1/16 inch wide

1шт.

6

1541793C1

HOSE

HOSE - 120 inch (3050 mm) long feeder clutch cylinder

2шт.

7

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ADAPTER - straight 11/16-16 face seal x 3/4-16 inch O-ring boss, Includes: Ref. 8 and 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - 3/8 ID x 1/16 inch wide

1шт.

10

201-321

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

ELBOW - 45 degree 13/16-16 face seal x 9/16-18 inch adj O-ring boss, Includes: Ref. 11 and 12

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

13

1541573C2

HOSE ASSY.

HOSE - 18-3/4 inch (475 mm) long feeder clutch valve

1шт.

14

1541633C2

TEE

TEE - special branch, feeder clutch valve, Includes: Ref. 15 and 16

1шт.

15

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

O-RING - 1/2 ID x 1/16 inch wide

1шт.

16

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

17

1541849C1

COUPLING

COUPLING ASSEMBLY - diagnostic, Includes: Ref. 18 and 19

1шт.

18

H434163

DUST CAP

Coupler

1шт.

20

299264C91

CLAMP

CLAMP - P-type hose, feeder clutch cylinder, not shown

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
