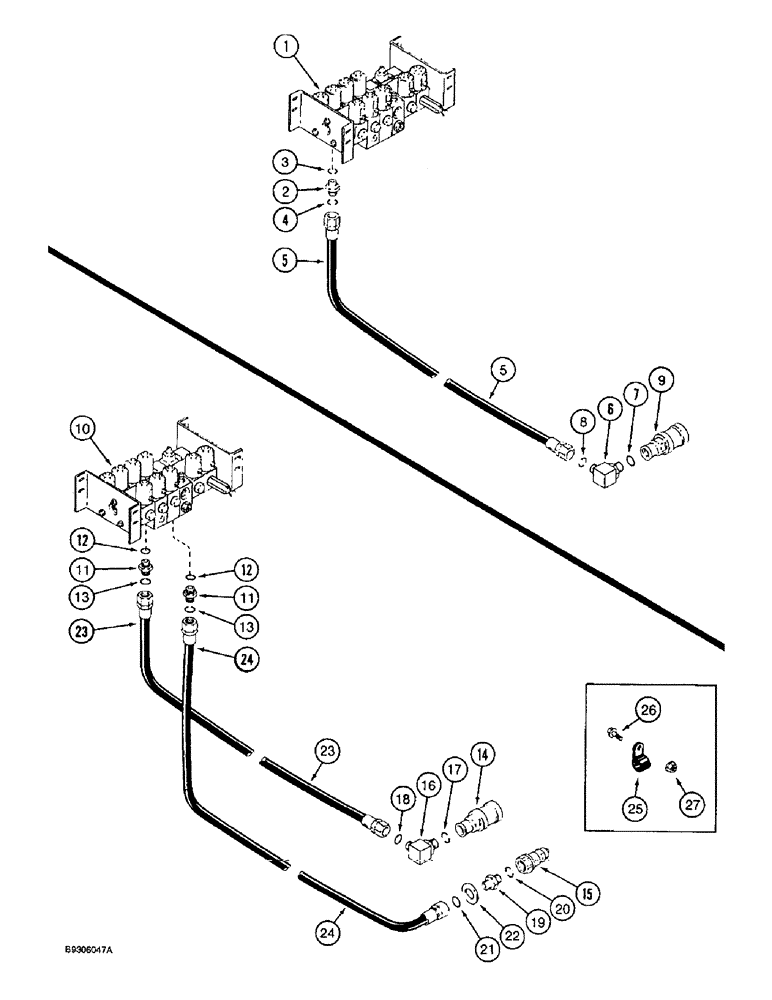

Запчасти Case IH 1644 (8-54) - REEL LIFT SYSTEM, REEL FORE AND AFT SYSTEM (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE ASSEMBLY control, parts list Figure 8-30
1шт.
2
201-125
HYD CONNECTOR,11/16"-16 ORFS x 7/16"-20 ORB
ADAPTER staright, 11/16"-16 face seal x 7/16"-20 O-ring boss, Includes: Ref. 3 and 4
1шт.
3
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
4
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
5
1989470C1
HOSE
114" (2895 mm) long reel lift
1шт.
6
201-362
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/8" - 14 Male ORB
ELBOW 90° 11/16"-16 face seal x 7/8"-14 adj. O-ring boss, Includes: Ref. 7 and 8
1шт.
7
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
8
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
9
1282338C91
COUPLING, QUICK, FEM
self-sealing, 7/8"-14
1шт.
10
REF
INSTRUCTION
VALVE ASSEMBLY control, parts list Figure 8-32, reel fore and aft system
1шт.
11
201-106
HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB
ADAPTER straight, 11/16"-16 face seal x 3/4"-16 O-ring boss, reel fore and aft system, Includes: Ref. 12 and 13
2шт.
12
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
Reel fore and aft system
1шт.
13
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Reel fore and aft system
1шт.
14
1282338C91
COUPLING, QUICK, FEM
self-sealing, 7/8"-14, reel fore and aft system
1шт.
16
201-362
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/8" - 14 Male ORB
ELBOW 90°, 11/16"-16 face seal x 7/8"-14 adj. O-ring boss, reel fore and aft system, Includes: Ref. 17 and 18
1шт.
17
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
Reel fore and aft system
1шт.
18
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Reel fore and aft system
1шт.
19
201-139
HYD CONNECTOR,11/16"-16 ORFS x 7/8"-14 ORB
ADAPTER straight, 11/16"-16 face seal x 7/8"-14 O-ring boss, reel fore and aft system, Includes: Ref. 20 and 21
1шт.
20
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
Reel fore and aft system
1шт.
21
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Reel fore and aft system
1шт.
22
1541792C1
WASHER
lock, red, special, reel fore and aft system
1шт.
23
1989470C1
HOSE
114" (2895 mm) long, reel fore and aft system
1шт.
24
1989471C1
HOSE
150" (3810 mm) long, reel fore and aft system
1шт.
25
515-23127
CLAMP,1/2", Insul, 3/8" Bolt
P-type, Reel fore and aft system
1шт.
26
409-7612
BOLT,3/8"-16 x 1.09" OAL
Reel fore and aft system
1шт.
27
231-5146
FLANGE NUT,3/8"-16
Reel fore and aft system
1шт.
Выбрано товаров: 27
