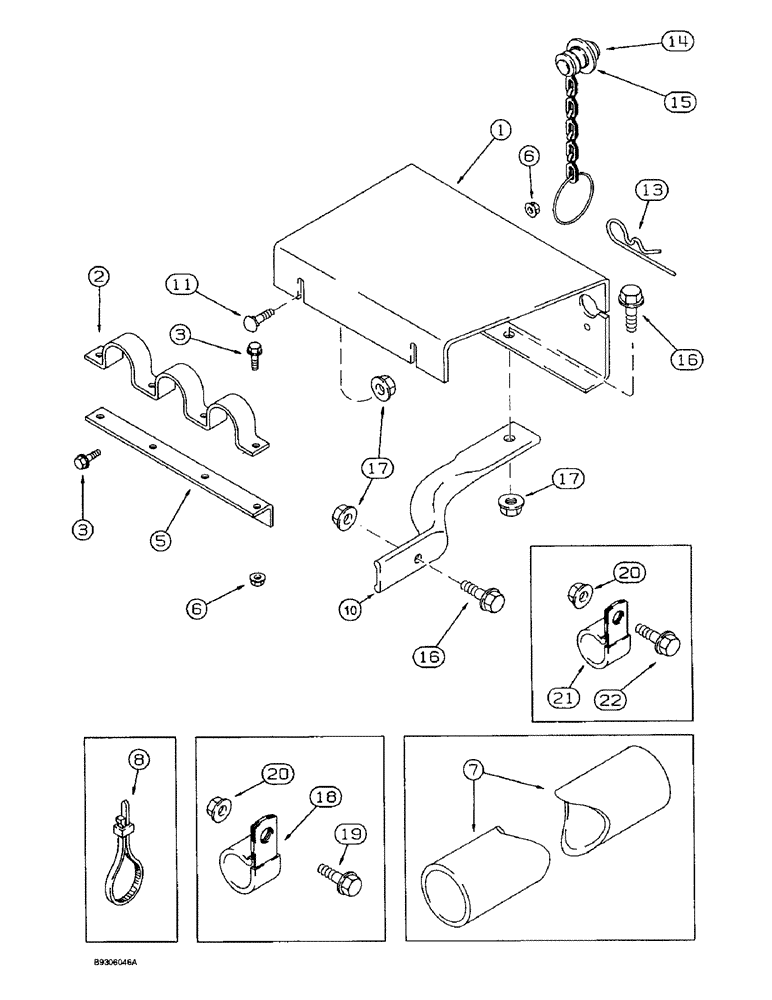

Запчасти Case IH 1644 (8-48) - REEL DRIVE, COUPLING MOUNTING (07) - HYDRAULICS

1

1957656C3

SUPPORT

feeder hoses

1шт.

2

1321990C1

CLAMP

coupling ISO

1шт.

3

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

BOLT hex flange, 1/4" NC x 3/4"

6шт.

5

1321989C2

SUPPORT

coupling

1шт.

6

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

7

1989500C1

SLEEVE

hose cordura

1шт.

8

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie 14" nylon

2шт.

10

1989477C1

SUPPORT

feeder hoses

1шт.

11

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

2шт.

13

432-620

COTTER PIN,3/32" x 1 1/4"

3/32" x 1 1/4"

4шт.

14

1954133C1

PLUG

coupling, dust, Includes: Ref. 15

1шт.

15

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

dust plug

1шт.

16

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

17

231-5146

FLANGE NUT,3/8"-16

4шт.

18

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

1-7/8" diameter

3шт.

19

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

1шт.

20

231-5146

FLANGE NUT,3/8"-16

4шт.

21

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

1шт.

22

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.
