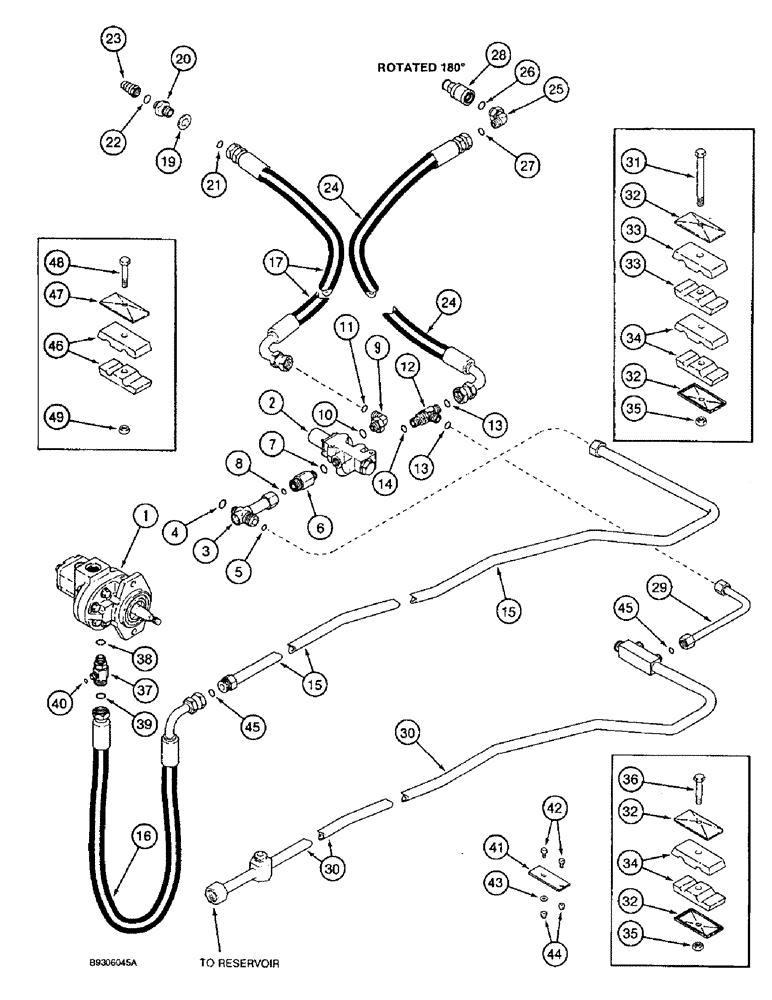

Запчасти Case IH 1644 (8-46) - REEL DRIVE SYSTEM (07) - HYDRAULICS

1

PUMP ASSEMBLY, reel drive parts list Figure 8-50

1шт.

2

VALVE ASSEMBLY, reel drive parts list Figure 8-52

1шт.

3

1541633C2

TEE

special branch, feeder clutch valve, Includes: Ref. 4 and 5

1шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

1541634C1

VALVE

ASSEMBLY relief, Includes: Ref. 7 and 8

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

3/4 ID x 1/16 inch wide

1шт.

9

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

90 degree 1-14 face seal x 7/8-14 inch adj. O-ring boss, Includes: Ref. 10 and 11

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

12

201-420

TEE,1"-14 x 7/8"-14 Run, ORFS

1-14 face branch x face x 7/8-14 inch adj. boss, Includes: Ref. 13 and 14

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

1541753C2

HYD TUBE,0.75" OD, 2225, 367 mm Length

reel drive, valve supply, includes 238-6018, Ref. 45 O-ring

1шт.

16

1980050C2

HOSE,15.88mm ID x 737mm L

29 inch (737 mm) long reel, Serial Range: pump-valve

1шт.

17

1989495C1

HOSE

136 inch (3455 mm) long reel motor supply

1шт.

19

1345266C1

WASHER

lock, white, special

1шт.

20

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes Ref. 21 and 22

1шт.

21

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

1272399C2

QUICK MALE COUPLING

self sealing, male 7/8 inch NF

1шт.

24

1989496C1

HOSE

102-1/2 inch (2605 mm) long reel drive motor return

1шт.

25

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

90 degree, 1-14 face seal x 7/8-14 inch, adj. O-ring boss, Includes: Ref. 26 and 27

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

28

1282338C91

COUPLING, QUICK, FEM

self sealing, 7/8-14 inch NF

1шт.

29

1989476C1

HYD TUBE

TUBE reel drive, return

1шт.

30

1989283C1

HYD TUBE

valve return

1шт.

31

424-564

BOLT,Hex, 5/16" - 18 x 4", Gr 2

BOLT hex, 5/16 NC x 4 inch grade 2

1шт.

32

1347127C1

PLATE

clamp

4шт.

33

1347072C1

CLAMP

3/4 inch OD tube

1шт.

34

1989362C1

CLAMP

two piece tube

3шт.

35

231-4115

NUT,5/16"-18, GB

2шт.

36

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

37

1541827C1

TEE

separator clutch, special, Includes: Ref. 38 - 40

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

39

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

40

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

41

196868C2

SUPPORT

PLATE

1шт.

42

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

43

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

1шт.

44

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

45

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

46

1541538C1

CLAMP

two piece, 3/4 inch OD tube

1шт.

47

1541537C1

PLATE

clamp

1шт.

48

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.

49

231-4144

NUT,1/4"-20, GB

1шт.
