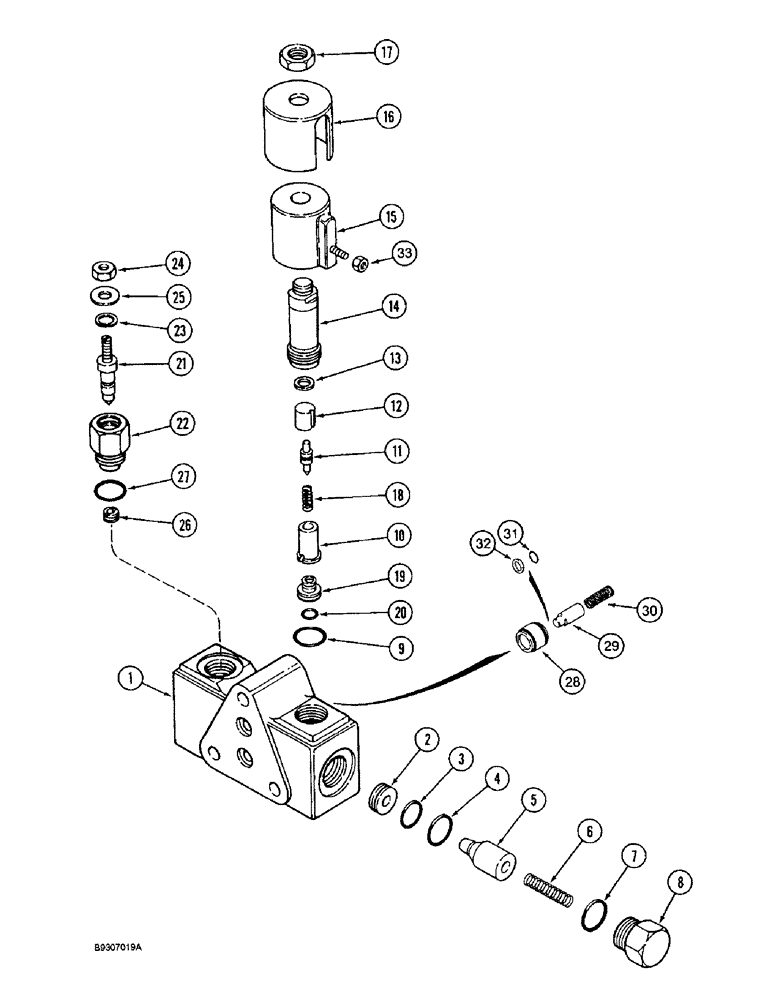

Запчасти Case IH 1644 (8-40) - HEADER LIFT VALVE (07) - HYDRAULICS

1542679C2

VALVE

VALVE ASSEMBLY - header lift, Includes: Ref. 1 - 33

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

1301657C1

PISTON

ORIFICE - valve poppet

1шт.

3

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

4

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

1шт.

5

107956A1

VALVE POPPET

POPPET - piston

1шт.

6

1301660C1

SPRING

SPRING - poppet

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

1301661C1

PLUG

PLUG - hex

1шт.

9

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

1шт.

10

1301646C2

BUSHING,6.35mm ID x 15.88mm OD x 25.8mm L

BUSHING - poppet

1шт.

11

1301644C2

SPOOL

POPPET - valve

1шт.

12

1301643C1

VALVE

ARMATURE - valve

1шт.

13

1301642C1

WASHER

WASHER - spring retaining backup

1шт.

14

1301641C2

TRANSMISSION SLEEVE

SLEEVE - poppet

1шт.

15

1301730C1

VALVE

COIL - valve

1шт.

16

1301632C1

CAP

COVER - coil

1шт.

17

107825

NUT,Stamped, 1/2"-20

NUT - hex 1/2 inch NF

1шт.

18

1301821C1

SPRING

SPRING - poppet

1шт.

19

107953A1

NEEDLE

ORIFICE - valve

1шт.

20

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

21

107953A1

NEEDLE

OVERRIDE ASSEMBLY - manual, includes O-ring and backup ring

1шт.

22

107955A1

PLUG

GUIDE - valve

1шт.

23

L31750

CIRCLIP,0.562", Int, #56

0.562", Int, #56

1шт.

24

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

25

107969A1

WASHER

WASHER - flat, special

1шт.

26

107962A1

SEAT

SEAT - valve

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

28

NSS

NOT SOLD SEPARAT

TUBE - through, valve

1шт.

29

107957A1

VALVE POPPET

POPPET - valve

1шт.

30

107959A1

SPRING

SPRING - poppet

1шт.

31

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

32

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

RING - backup

1шт.

33

225-20210

NUT,#10-32, Brass

1шт.
