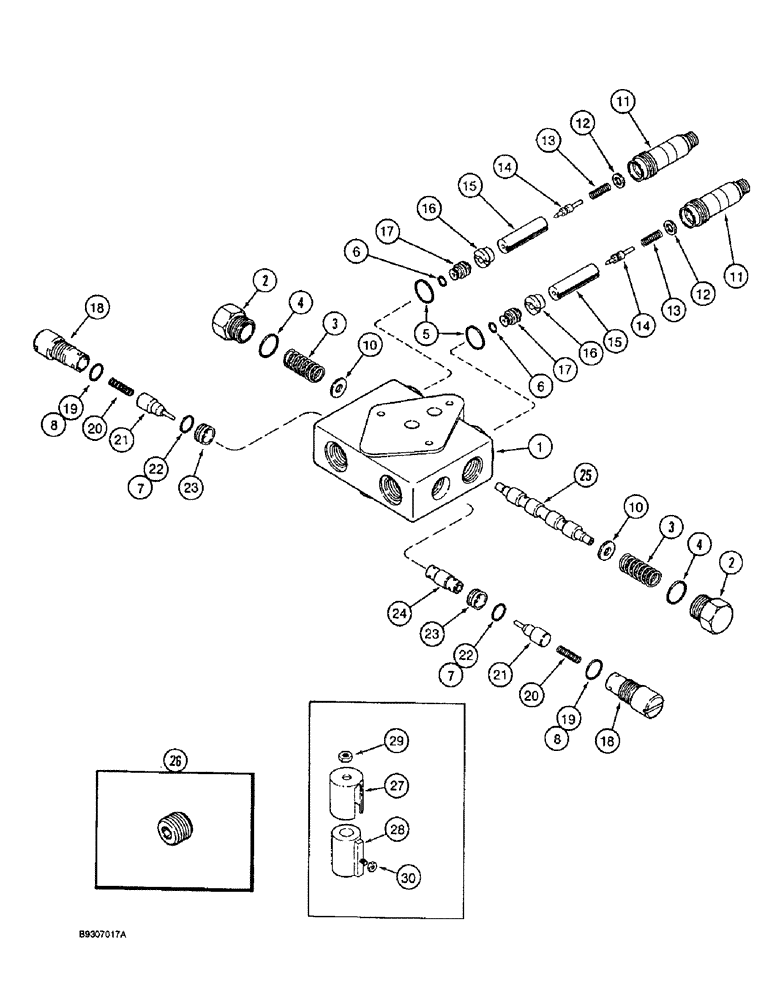

Запчасти Case IH 1644 (8-36) - DOUBLE PILOTED VALVE - 1267035C94, FOR UNLOADER AUGER SWING, REEL FORE/AFT PRIOR TO P.I.N. JJC97859 (07) - HYDRAULICS

1267035C94

VALVE

ASSEMBLY double piloted, order 124857A1, parts list Figure 8-37A (1-2), Serial Range: -JJC97859

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve, order 124857A1 valve

1шт.

2

1301686C1

CAP

PLUG hex, special end

2шт.

3

1301689C1

SPRING

spool plug

2шт.

1282278C2

SEAL KIT

valve seal, Includes: Ref. 4 - 9

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

5

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

2шт.

6

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

8

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

10

1301687C1

WASHER

RETAINER spring

2шт.

11

1301627C2

SLEEVE

poppet

2шт.

12

1301642C1

WASHER

retaining, spring

2шт.

13

1301640C1

SPRING

poppet

2шт.

14

110550A1

VALVE POPPET

2шт.

15

1301648C1

ARMATURE

valve

2шт.

16

1301624C1

BUSHING

poppet

2шт.

17

1301625C1

ORIFICE

valve

2шт.

1986831C2

PACKAGE

VALVE ASSEMBLY cross check, Includes: Ref. 18 - 23

2шт.

18

NSS

NOT SOLD SEPARAT

BODY check valve

1шт.

19

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING poppet

1шт.

21

1267160C2

VALVE

POPPET

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

NSS

NOT SOLD SEPARAT

SEAT valve

2шт.

24

1267162C1

VALVE

SPOOL shuttle

1шт.

25

NSS

NOT SOLD SEPARAT

SPOOL valve, order 124857A1, parts list Figure 8-37A

1шт.

26

1301637C1

ORIFICE

ORIFICE valve

2шт.

27

1301632C1

CAP

COVER coil

2шт.

28

1301633C1

COIL

valve

2шт.

29

107825

NUT,Stamped, 1/2"-20

hex, 1/2" NF stamped

2шт.

30

225-20210

NUT,#10-32, Brass

2шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Not used in this application, not shown

1шт.
