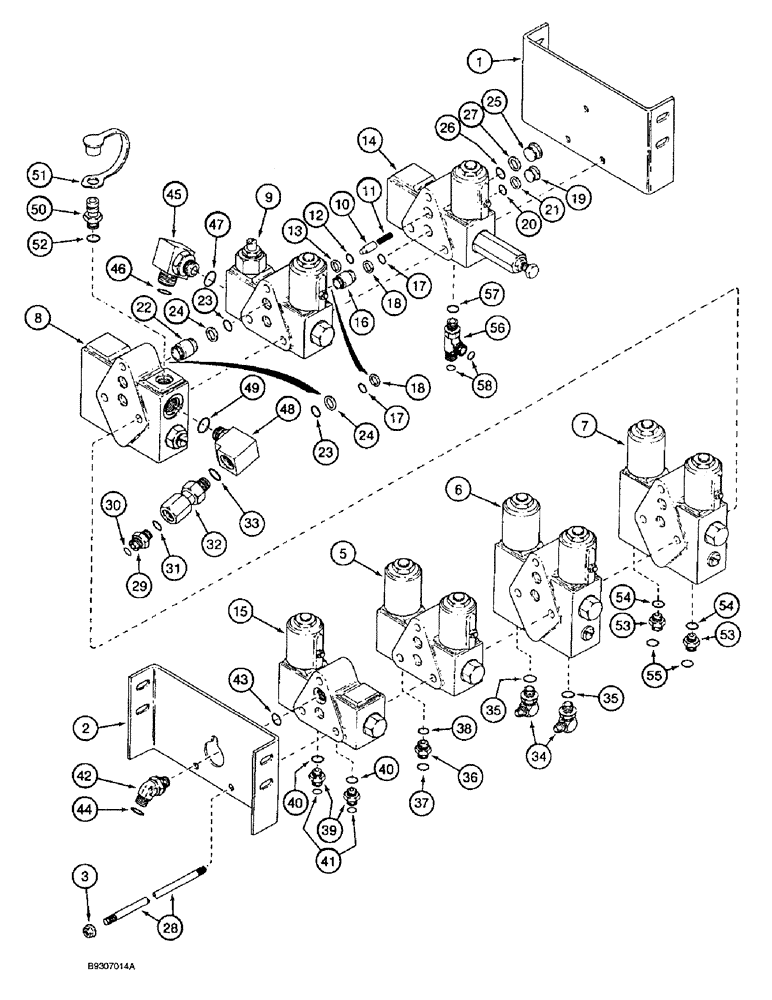

Запчасти Case IH 1644 (8-32) - CONTROL VALVE AND MOUNTING, WITH FORE AND AFT ATTACHMENT (07) - HYDRAULICS

1989497C5

VALVE ASSEMBLY control, not available for service, order individual components, Includes: Ref. 1 - 28

1шт.

1986776C3

VALVE ASSEMBLY control, not available for service, order individual components, Includes: Ref. 1 - 28

1шт.

1

1541613C1

SUPPORT

BRACKET valve mounting, front

1шт.

2

1989370C2

SUPPORT

BRACKET valve mounting, rear

2шт.

3

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

5

107981A2

VALVE

ASSEMBLY unload/single bi-directional, reel lift, parts list Figure 8-34

1шт.

6

1267035C94

VALVE

ASSEMBLY double piloted unloader swing, parts list Figure 8-36, no longer available, order 124857A1, Ref. 6, Serial Range: -JJC97859

1шт.

6

124857A1

VALVE

ASSEMBLY double piloted unloader swing, parts list Figure 8-37A, Start Serial: JJC97859

1шт.

7

1267035C94

VALVE

ASSEMBLY double piloted reel fore and aft, parts list Figure 8-36, no longer available, order 124857A1, Ref. 6, Serial Range: -JJC97859

1шт.

7

124857A1

VALVE

ASSEMBLY double piloted reel fore and aft, parts list Figure 8-37A, Start Serial: JJC97859

1шт.

8

1542678C1

VALVE

ASSEMBLY flow divider, parts list Figure 8-38

1шт.

9

1542679C2

VALVE

ASSEMBLY header lift, parts list Figure 8-40, Includes: Ref. 10 - 13

1шт.

10

107957A1

VALVE POPPET

raise check

1шт.

11

107959A1

SPRING

poppet

1шт.

12

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

13

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

backup large tube O-ring

2шт.

14

1542680C3

VALVE

ASSEMBLY header lower, parts list Figure 8-42, Replaces 1542680C2

1шт.

15

1542681C1

VALVE

ASSEMBLY feeder clutch, parts list Figure 8-44

1шт.

16

1301630C2

TUBE,.344" ID, .5" OD, 15" Length

through small, Includes: Ref. 17 and 18

9шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

18

L31330

BACK-UP RING,109mm ID x 128.81mm OD x 12mm Thk

backup

2шт.

19

1301634C2

PLUG

cap small, Includes: Ref. 20 and 21

4шт.

20

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

21

L31330

BACK-UP RING,109mm ID x 128.81mm OD x 12mm Thk

backup

1шт.

22

107984A1

PISTON

TUBE through large, includes seals, Includes: Ref. 23 and 24

1шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

24

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

backup large tube O-ring

2шт.

25

107985A1

PISTON

PLUG cap large, includes seals, Includes: Ref. 26 and 27

1шт.

26

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

27

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

backup large tube O-ring

2шт.

28

106440A1

STEM

ROD tie, valve sections used on models without field tracker attachment

3шт.

REF

INSTRUCTION

VALVE ASSEMBLY control, Includes: Ref. 29 - 58

1шт.

29

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes Ref. 30 and 31

1шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

31

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

32

1272346C1

FILTER

inline, Includes: Ref. 33

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

34

218-5320

ELBOW,90 Degree, 7/16"-20, 37 Degree x 3/4"-16, O-Ring

90 degree, 7/16 - 20 flare x 3/4 - 16 inch adj O-ring boss, Includes: Ref. 35

2шт.

35

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

36

201-125

HYD CONNECTOR,11/16"-16 ORFS x 7/16"-20 ORB

ADAPTER straight, 11/16 - 16 face seal x 7/16 - 20 inch O-ring boss, Includes: Ref. 37 and 38

1шт.

37

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

38

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

39

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ADAPTER straight, 11/16 - 16 face seal x 3/4 - 16 inch O-ring boss, Includes: Ref. 40 and 41

2шт.

40

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

41

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

42

201-321

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

45 degree, 13/16 - 16 face seal x 9/16 - 18 inch adj O-ring boss, Includes: Ref. 43 and 44

1шт.

44

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

45

201-350

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

90 degree, 1-3/16 - 12 face seal x 7/8 - 14 inch adj O-ring boss, Includes: Ref. 46 and 47

1шт.

46

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

47

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

48

1989475C3

TEE

special, Includes: Ref. 49

1шт.

49

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

50

1541849C1

COUPLING

ASSEMBLY diagnostic, Includes: Ref. 51 and 52

1шт.

51

H434163

DUST CAP

Coupler

1шт.

53

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ADAPTER straight, 11/16 - 16 face seal x 3/4 - 16 inch O-ring boss, Includes: Ref. 54 and 55

2шт.

54

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

55

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

56

201-412

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

13/16 - 16 face branch x face x 3/4 - 16 inch adj O-ring, Includes: Ref. 57 and 58

1шт.

57

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

58

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

43

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

52

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
