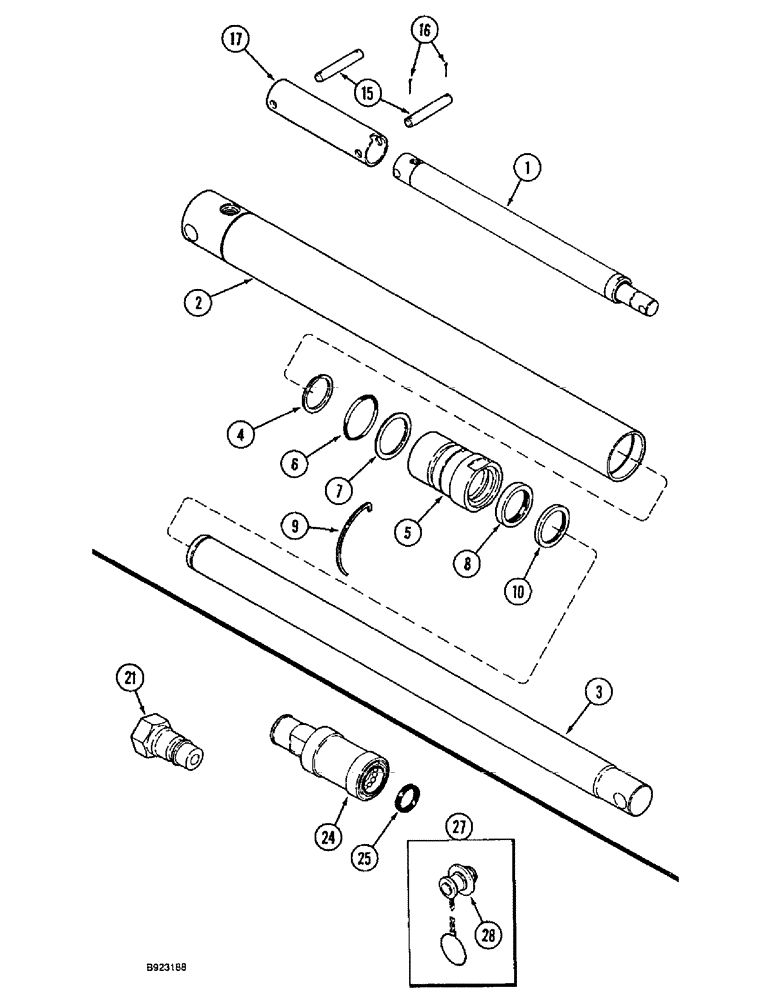

Запчасти Case IH 1644 (8-28) - HEADER LIFT CYLINDER, HYDRAULIC COUPLINGS (07) - HYDRAULICS

1

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSY., 2-5/8 (67) ID x 20-1/2 in. (521 mm) stroke, header lift, Includes: Ref. 2 - 10

1шт.

1

127779C94R

REMAN-HYD CYLINDER

1644 CASE IH AXIAL-FLOW COMBINE, ASSY., 2-5/8 (67) ID x 20-1/2 inch (521 mm) stroke, header lift (1/93-12/94)

1шт.

1

127779C94C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY cylinder

1шт.

3

127780C2

ROD

piston

1шт.

4

NSS

NOT SOLD SEPARAT

RING stop, piston rod

1шт.

Part of KIT, part number 224718C92

1шт.

5

142568C2

HEAD

GLAND cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING front head, 2-1/2 x 2-11/16 in.

1шт.

Part of KIT, part number 224718C92

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER, o-ring backup

1шт.

Part of KIT, part number 224718C92

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL, piston rod

1шт.

Part of KIT, part number 224718C92

1шт.

9

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

Part of KIT, part number 224718C92

1шт.

10

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of KIT, part number 224718C92

1шт.

15

573762R1

PIN,25.4mm OD x 130.97mm L

header lift cylinder, 1 x 5-5/32 in.

1шт.

15

195822C1

PIN,25.4mm OD x 228.6mm L

header lift cylinder, 1 x 9 in.

1шт.

16

1320845C1

TUBE,77.78 mm ID, 88.9 mm OD

cylinder extension

1шт.

17

1319896C1

SUPPORT ASSY.

SLEEVE, lift cylinder extension

1шт.

17

1319896C1

SUPPORT ASSY.

SLEEVE, lift cylinder extension for 54 in. feeder

1шт.

224718C92

SEAL KIT

KIT cylinder repair, includes Ref. 4, 6, 7, 8, 9 and 10

1шт.

21

1272399C2

QUICK MALE COUPLING

self sealing, male, 7/8 in. NF, hydraulic

1шт.

24

1282338C91

COUPLING, QUICK, FEM

self sealing, 7/8-14 in., hydraulic

1шт.

25

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

RING hydraulic coupling

1шт.

27

1954133C1

PLUG

coupling, dust, hydraulic, Includes: Ref. 28

1шт.

28

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

dust plug, hydraulic coupling

1шт.
