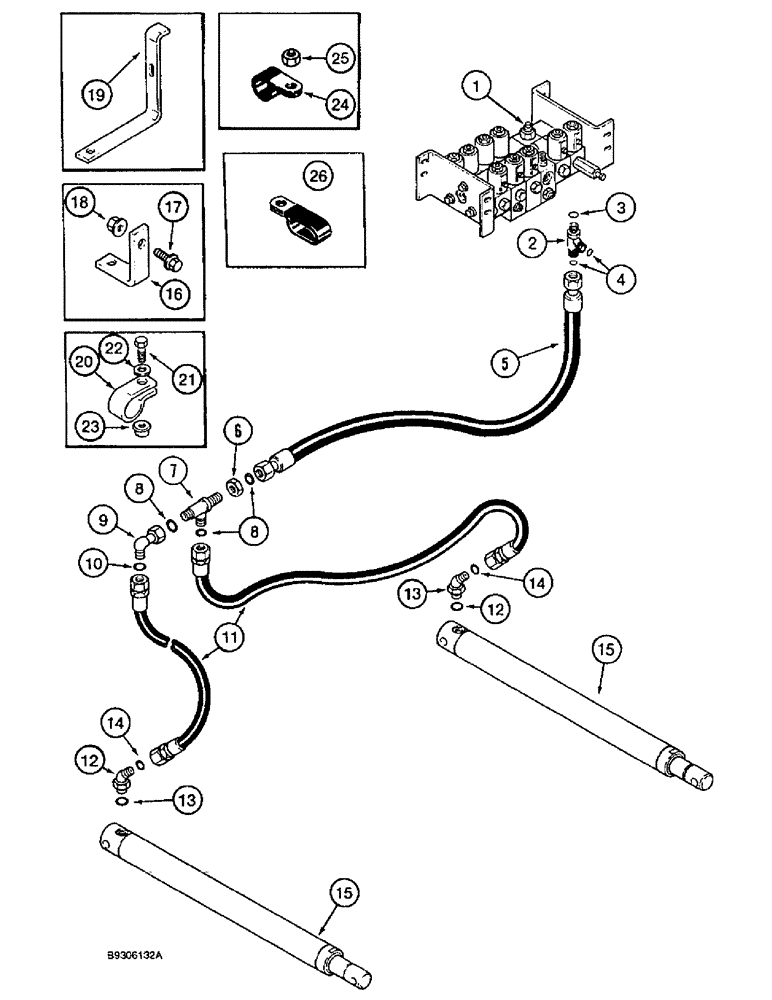

Запчасти Case IH 1644 (8-26) - HEADER LIFT CYLINDER SYSTEM, WITHOUT THIRD LIFT CYLINDER ATTACHMENT (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE ASSY. control, see Figure 8-30 or 8-32
1шт.
2
201-412
TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB
13/16-16 face branch x face x 3/4-16 in. adj. o-ring, Includes: Ref. 3 and 4
1шт.
3
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
4
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
2шт.
5
1989666C1
HOSE
96-7/8 in. (2460 mm) long, header cylinder supply
1шт.
6
201-903
TUBE NUT,Blkhd, 13/16"-16
1шт.
7
201-423
TEE,9/16"-18, Blkhd, Run, ORFS
13/16-16 in. face seal branch x face seal x bulkhead face seal, Includes: Ref. 8
1шт.
8
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
3шт.
9
201-320
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS
ELBOW, 90 deg., 13/16-16 in. face seal x swivel face seal, Includes: Ref. 10
1шт.
10
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
11
1989667C1
HOSE
header lift cylinder, 36 in. (915 mm) long
2шт.
12
201-348
ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB
Includes Ref. 13 and 14
2шт.
13
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
14
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
15
REF
INSTRUCTION
CYLINDER ASSY., hydraulic, see Figure 8-28
2шт.
16
1989343C1
ANGLE BAR
tube support
1шт.
17
409-7612
BOLT,3/8"-16 x 1.09" OAL
2шт.
18
231-5146
FLANGE NUT,3/8"-16
2шт.
19
1989653C1
SUPPORT
header cylinder, fitting
1шт.
20
299413C1
CLAMP
hose, header lift
1шт.
21
413-432
BOLT,Hex, 1/4" - 20 x 2", Gr 5
1шт.
22
495-11028
WASHER,1/4", SAE
(flat, 9/32 x 5/8 x 1/16")
1шт.
23
231-5144
SERRATED NUT,Flg, USR, 1/4"-20
1шт.
24
299269C91
CLAMP
retaining single, header lift and steering hose
1шт.
25
425-1410
JAM NUT,Jam, 5/8"-11, G5
hex, jam, 5/8 in. NC
1шт.
26
470375C1
CLAMP,1", Insul, 3/8" Bolt
double header lift and steering hoses
2шт.
Выбрано товаров: 26
