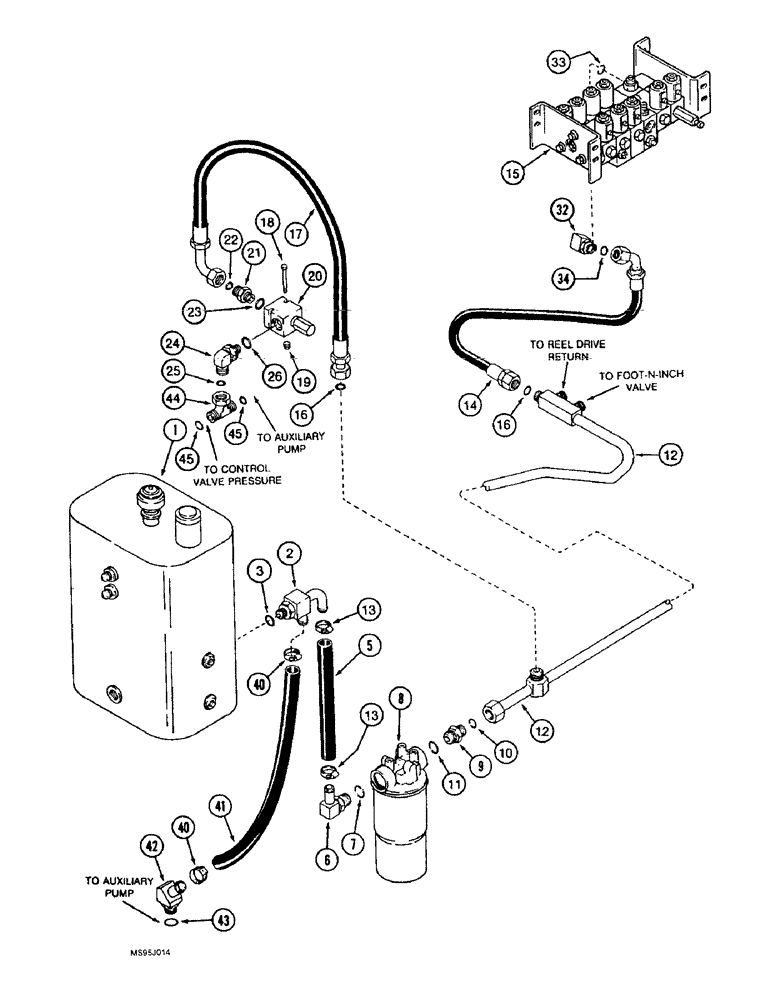

Запчасти Case IH 1644 (8-20) - HEADER LIFT RETURN SYSTEM (07) - HYDRAULICS

1

1343660C1

RESERVOIR

ASSY., hydraulic oil, 10 gallon, see Figures 8-02 and 8-02(1)

1шт.

2

1541642C1

TEE

special, beaded tube, Includes: Ref. 3

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

5

1541694C1

HOSE

reservoir to filter, 28-3/16 in. (715 mm) long, cut from 1541952C1 bulk hose, see below

1шт.

6

217-354

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/8" - 12 Male ORB

ELBOW, 90 deg., 1 stem end x 1-5/8-12 in. adj. o-ring boss, Includes: Ref. 7

1шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

8

REF

INSTRUCTION

FILTER ASSY., see Figure 8-10

1шт.

9

201-122

HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/8"-12 ORB

ADAPTER straight, 1-7/16-12 face seal x 1-5/8-12 in o-ring boss, Includes: Ref. 10 and 11

1шт.

10

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

11

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

2шт.

12

1989283C1

HYD TUBE

valve return

1шт.

13

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

Adjustable

2шт.

14

1989530C1

HOSE

valve stack drain, 33-7/8 in. (860 mm) long

1шт.

15

REF

INSTRUCTION

VALVE ASSY. control, see Figures 8-30 and 8-32

1шт.

16

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

17

1980050C2

HOSE,15.88mm ID x 737mm L

relief valve drain, 29 in. (737 mm) long

1шт.

18

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

hex, 1/4 NC x 2-3/4 in.

2шт.

19

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

20

1542686C1

VALVE

relief, 2500 psi

1шт.

21

201-141

HYD CONNECTOR,1 3/16"-12 ORFS x 3/4"-16 ORB

ADAPTER straight, 1-3/16-12 face seal x 3/4-16 in. o-ring boss, Includes: Ref. 22 and 23

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

24

201-358

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 3/4" - 16 Male ORB

90 deg., 1-3/16-12 face seal x 3/4-16 in. adj. o-ring boss, Includes: Ref. 25 and 26

1шт.

25

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

32

201-350

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

90 deg., 1-3/16-12 face seal x 7/8-14 in. adj. o-ring boss, Includes: Ref. 33 and 34

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

34

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

40

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

Adjustable

2шт.

41

1541692C1

FLEXIBLE HOSE

25-3/16 in. (640 mm) long, cut from 1541952C1 bulk hose, see below

1шт.

42

217-316

FITTING,45 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW, 45 deg., 1 stem end x 1-5/16-12 in. adj. o-ring boss, Includes: Ref. 43

1шт.

43

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

44

201-419

TEE,1 3/16"-12 ORFS x 1 3/16"-18 Sw Br

1-3/16-12 in. swivel face branch x face seal x face seal, Includes: Ref. 45

1шт.

45

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

1541952C1

HOSE,25.4mm ID x 7620mm L

bulk, 1 (25) ID x 300 in. (7620 mm) long, used for Ref. 5 and 41

1шт.
