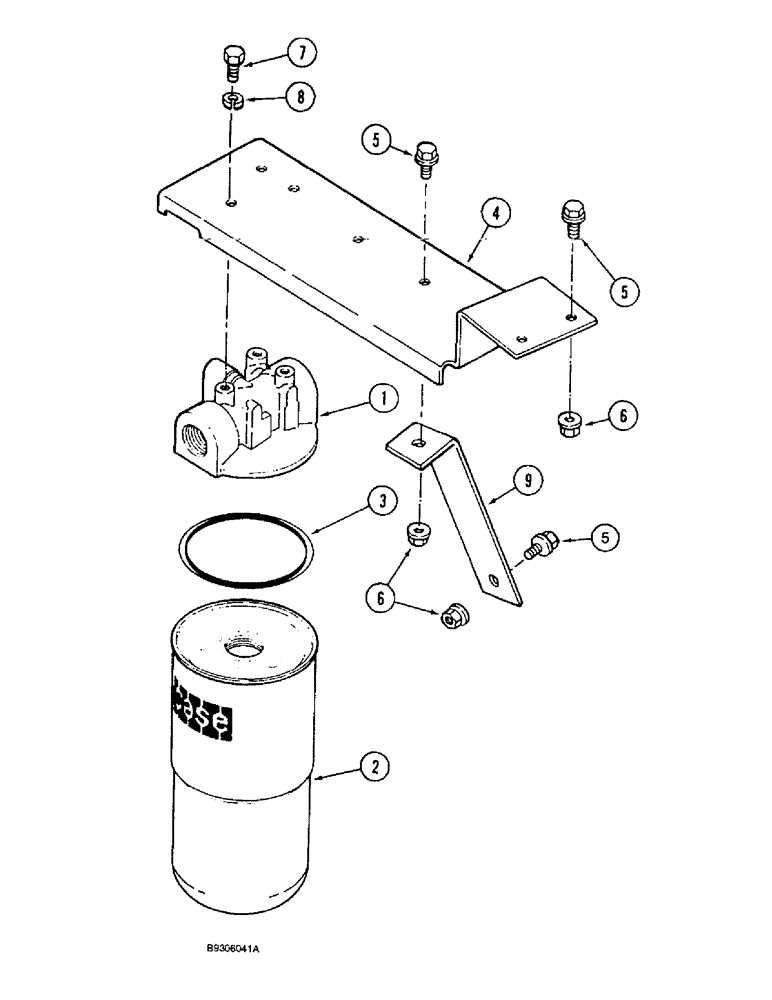

Запчасти Case IH 1644 (8-10) - HYDRAULIC CHARGE FILTER, CHARGE FILTER MOUNTING (07) - HYDRAULICS

87784C91

FILTER ASSY

hydraulic system, charge, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD filter

1шт.

2

A177605

HYDRAULIC OIL FILTER

ELEMENT

1шт.

Part of KIT, part number 1329214C1

1шт.

3

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

GASKET filter element

1шт.

Part of KIT, part number 1329214C1

1шт.

4

1347113C3

BRACKET

SUPPORT, charge filter, pump

1шт.

5

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self locking, special, 3/8 NC x 1 in., charge filter mounting

4шт.

6

231-5146

FLANGE NUT,3/8"-16

Charge filter mounting

4шт.

7

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

Charge filter mounting

3шт.

8

492-11038

LOCK WASHER,3/8"

Charge filter mounting

3шт.

9

1347116C2

SUPPORT

BRACKET, charge filter mounting

1шт.

1329214C1

HYDRAULIC OIL FILTER

KIT filter, includes Ref. 2 and 3

1шт.
