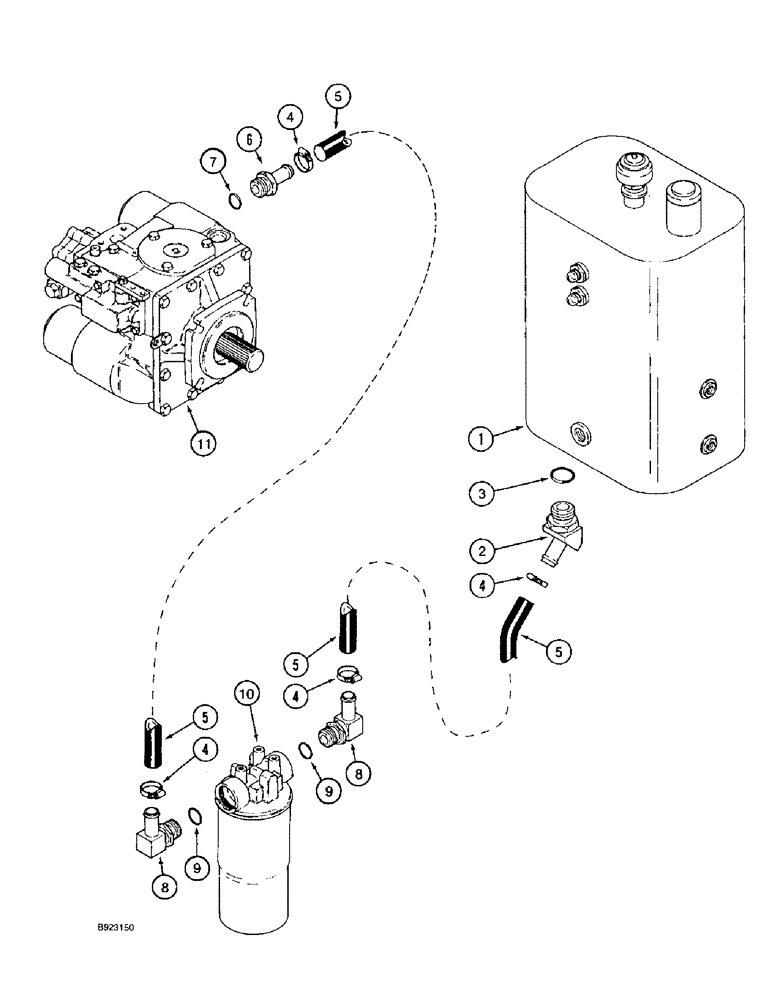

Запчасти Case IH 1644 (8-06) - HYDROSTATIC PUMP SYSTEM, RESERVOIR TO PUMP (07) - HYDRAULICS

1

1343660C1

RESERVOIR

ASSY., hydraulic oil, 10 gallon, see Figure 8-02 and 8-02(1)

1шт.

2

217-317

FITTING,45 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Adj., Incl. Ref. 3

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

4

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

Adjustable

4шт.

5

1541688C1

FLEXIBLE HOSE

charge pump suction, 26 in., 660 mm, long, cut from 1541953C1 bulk hose, see below

2шт.

6

217-184

FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

Includes Ref. 7

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Adjustable, Includes Ref. 9

2шт.

9

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

10

87784C91

FILTER ASSY

charge pump suction, see Figure 8-10

1шт.

11

REF

INSTRUCTION

PUMP ASSY., hydrostatic, see Figures 6-14 through 6-18

1шт.

1541953C1

HOSE

bulk, 1-1/4, 32 mm, ID x 300 in., 7620 mm, long

1шт.
