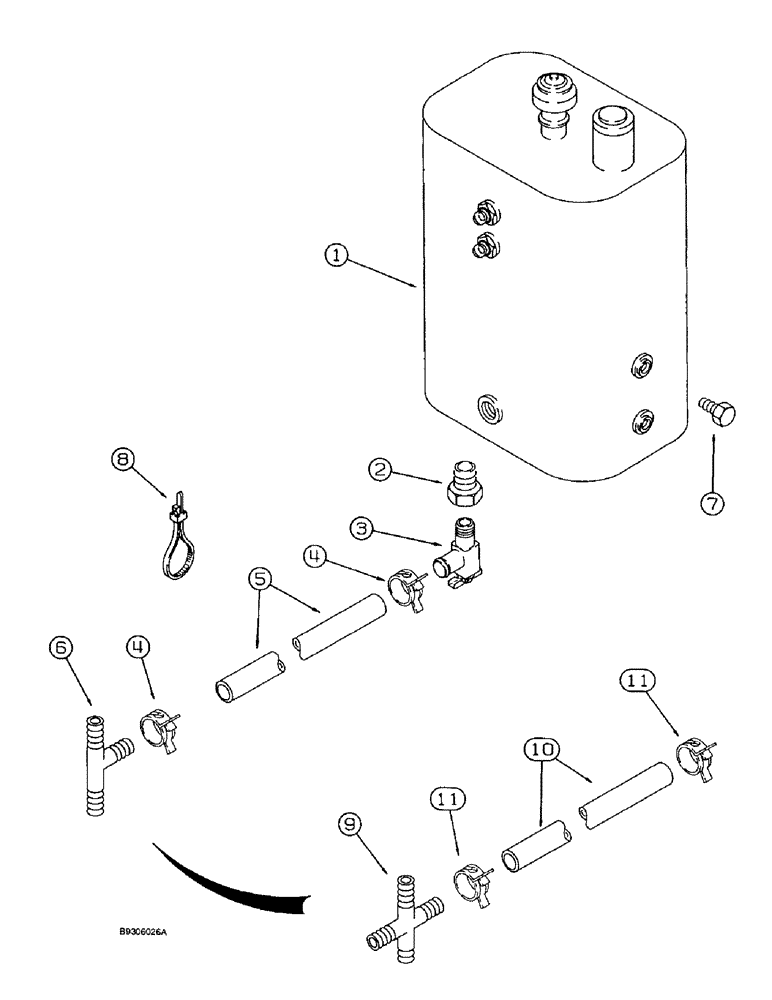

Запчасти Case IH 1644 (8-04) - HYDRAULIC RESERVOIR DRAIN (07) - HYDRAULICS

1

1343660C1

RESERVOIR

ASSY., hydraulic oil, 10 gallon, see Figure 8-02 and 8-02(1)

1шт.

2

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

1шт.

3

301803R1

SHUT-OFF VALVE

1шт.

4

1954736C1

HOSE CLAMP,#24

2шт.

5

1347032C2

HOSE,15.75 mm ID x 1350.00 mm

53-1/8 in., 1350 mm, long, cut from 1977295CX bulk hose, see below

1шт.

6

1977169C1

TEE

oil drain, if used, replaced by 119254A1 Ref. 9 clamp, 1977294C3 Ref. 10 hose, and 1954736c1 Ref. 4 clamp, see below

2шт.

7

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

2шт.

8

702093C1

CABLE TIE

CABLE STRAP nylon, retaining

2шт.

9

119254A1

CROSS

oil drain

1шт.

10

1977294C3

HOSE

22-7/8 in., 580 mm, long, cut from 1977295CX bulk hose, see below

1шт.

11

1954736C1

HOSE CLAMP,#24

Replaces 112700R1

2шт.

1977295CX

LARGE HOSE

HOSE,LARGE bulk, 5/8 (16) x 7/8 (22 x 600 in. (15240 mm), long

1шт.
