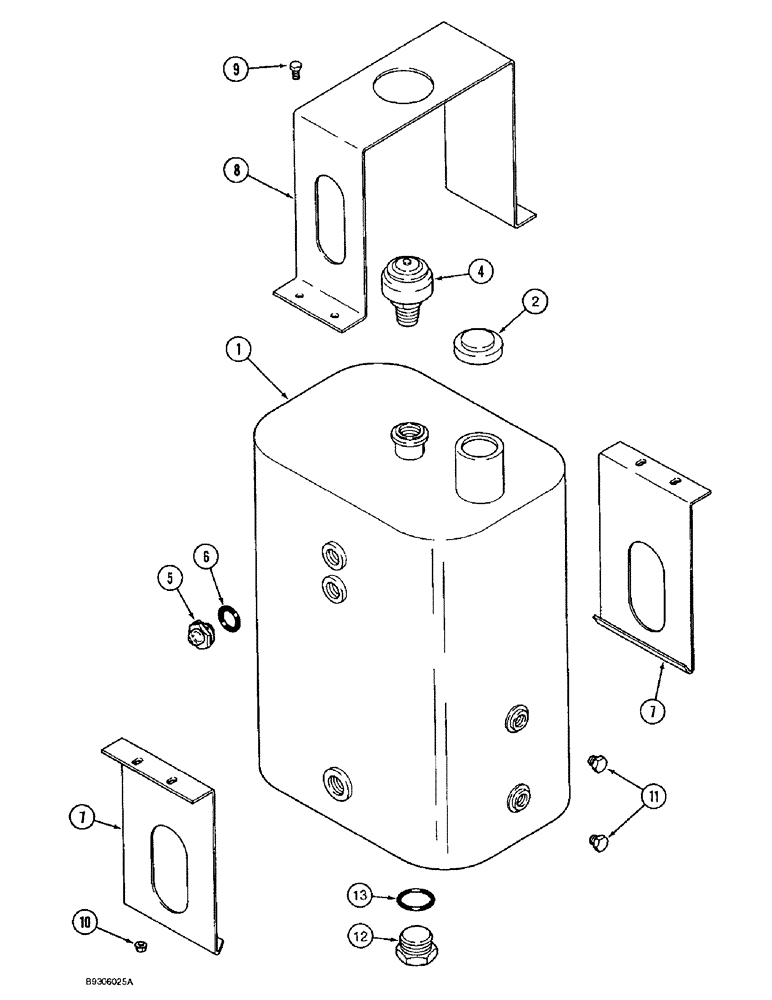

Запчасти Case IH 1644 (8-02) - HYDRAULIC RESERVOIR, PRIOR TO P.I.N. JJC0098005 (07) - HYDRAULICS

1343660C1

RESERVOIR

ASSY., hydraulic oil, 10 gallon, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

TANK, hydraulic reservoir

1шт.

2

1272941C1

CAP

brether fill, non vented, replaces 1346309c1, Includes: Ref. 3

1шт.

3

104407A1

SCREEN

filter, fill cap, not shown

1шт.

4

923745C91

BREATHER ASSY.

reservoir

1шт.

5

244600R92

SIGHTGLASS

GAUGE oil level

2шт.

6

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

7

1979829C1

SUPPORT

reservoir, hydraulic

2шт.

8

1347146C1

CLAMP

CLAMP reservoir

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

11

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

2шт.

12

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

hex, 1-5/8-12 in. O-ring boss, Includes: Ref. 13

1шт.

13

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.
