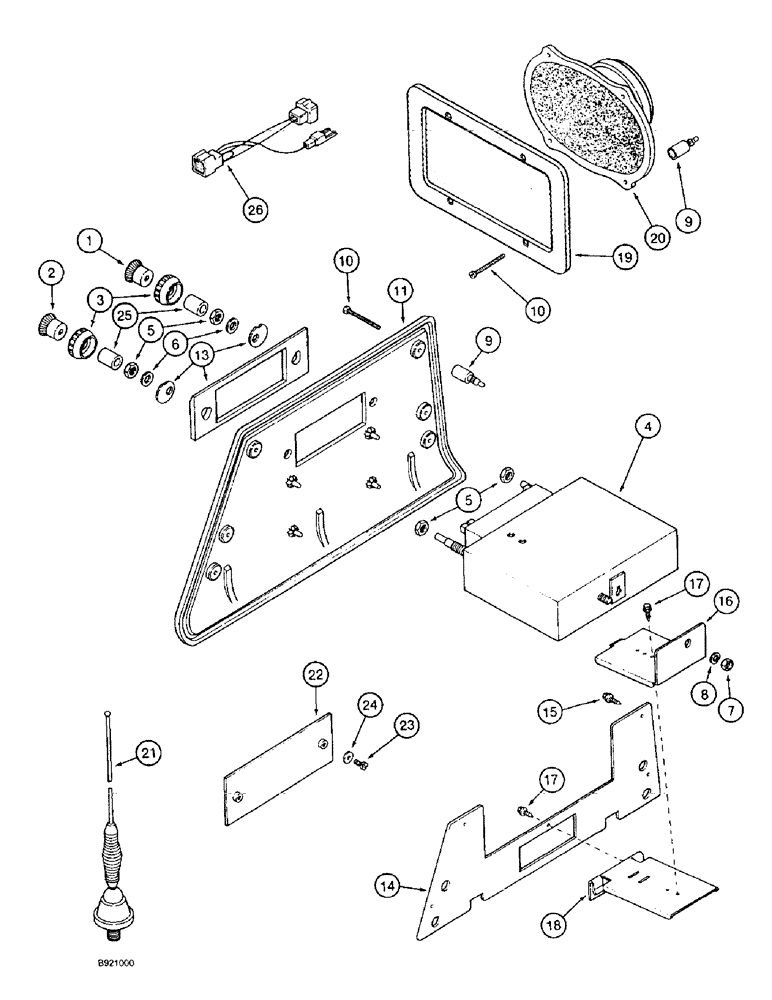

Запчасти Case IH 1644 (4-56) - RADIO (06) - ELECTRICAL

1

111381C1

KNOB

control volume

1шт.

Part of KIT, part number 84226C91

1шт.

2

111382C1

KNOB

control tuning

1шт.

Part of KIT, part number 84226C91

1шт.

3

385532C1

KNOB

control tone and balance

2шт.

Part of KIT, part number 84226C91

1шт.

4

245344C91

RADIO

AM

1шт.

4

245160C91

RADIO

AM-FM stereo

1шт.

5

142921C1

NUT

hex, special, 3/8 inch - 32

4шт.

6

142920C1

WASHER

flat, 9.72 x 15.00 x 0.60 mm

2шт.

7

425-144

JAM NUT,Jam, 1/4"-20, G5

1шт.

8

492-11025

LOCK WASHER,1/4"

1шт.

9

117995C1

PACKAGE

KIT fastener, toggle type, contains 5

3шт.

Part of KIT, part number 84226C91

1шт.

10

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

self-tapping, oval head, No. 8-18 x 1-3/4 inch

14шт.

11

1280182C2

PANEL

radio trim

1шт.

13

84103C1

PANEL

radio trim highlight

1шт.

Part of KIT, part number 84226C91

1шт.

14

91484C1

PLATE

radio support

1шт.

Part of KIT, part number 84226C91

1шт.

15

280-14510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

self-tapping, hex washer head, No. 10-16 x 5/8 inch

4шт.

16

84048C1

BRACKET

radio support, rear slide

1шт.

Part of KIT, part number 84226C91

1шт.

17

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

self-tapping, hex washer head, No. 10-16 x 1/2 inch

2шт.

18

84049C1

BRACKET

radio support, rear

1шт.

Part of KIT, part number 84226C91

1шт.

19

245806C1

PANEL

speaker grille

2шт.

Part of KIT, part number 84226C91

1шт.

20

245343C2

SPEAKER

radio 5 x 7 inch, 4 ohm

2шт.

Part of KIT, part number 84226C91

1шт.

21

60-6490T1

ANTENNA

radio

1шт.

Part of KIT, part number 84226C91

1шт.

22

1321384C1

PANEL

radio insert

1шт.

23

436746

SCREW

machine, special, No. 10 NF x 1/4 inch

2шт.

24

195-513

WASHER,#10

flat, 7/32 x 1/2 x 3/64 inch

2шт.

25

84240C1

SPACER

3/8 x 5/8 x 3/4 inch

2шт.

Part of KIT, part number 84226C91

1шт.

26

1964513C1

HARNESS

adapter

1шт.

84226C91

KIT

radio installation, cab, includes Ref. 1, 2, 3, 9, 13, 14, 16, 18 - 21, and 25 together with mounting hardware and instructions

1шт.
