Запчасти Case IH 1644 (4-44) - ALTERNATOR MOUNTING, STARTER MOUNTING (06) - ELECTRICAL

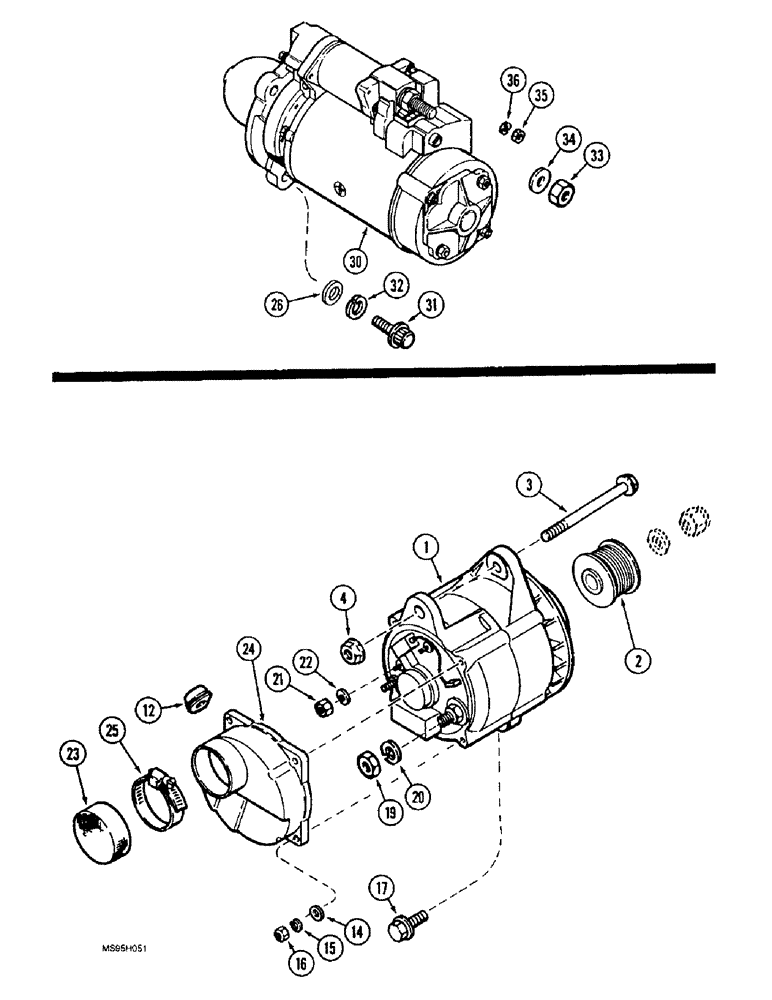

Схема запчастей Case IH 1644 - (4-44) - ALTERNATOR MOUNTING, STARTER MOUNTING (06) - ELECTRICAL
14
25
23
24
2
31
26
36
21
4
33
22
20
12
15
35
32
19
17
16
34
3
1
30

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY engine, parts list Figure 4-48

1шт.

2

A189616

PULLEY

alternator

1шт.

3

J903105

FLANGE BOLT,Hex, M12 x 1.75 x 150mm, Cl 8.8

BOLT hex flange, special, 12 - 1.75 x 150 mm

1шт.

4

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

1шт.

12

1964826C1

GROMMET

condensate hose

1шт.

13

1979627C1

COVER

SCREEN alternator dust cover, not shown

1шт.

14

495-31025

WASHER,3/16"

flat, 1/4 x 9/16 x 3/64 inch

4шт.

15

892-11005

LOCK WASHER,M5

4шт.

16

825-1405

NUT,M5, Cl 8

8шт.

17

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

BOLT hex flange, 1/2 NC x 1-1/4 inch, grade 8

1шт.

19

425-147

JAM NUT,Jam, 7/16"-14, G5

hex, jam, 7/16 inch NC

1шт.

20

492-11044

LOCK WASHER,7/16"

1шт.

21

825-1404

NUT,M4, Cl 8

1шт.

22

892-11004

LOCK WASHER,M4

1шт.

23

1979627C1

COVER

SCREEN alternator dust cover

1шт.

24

1338890C1

COVER

end, alternator

1шт.

25

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

adj. No. 32, type F, retaining

1шт.

26

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

30

REF

INSTRUCTION

STARTER engine, mounting, parts list Figure 4-50

1шт.

31

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

BOLT 12 point flange, 12 - 1.75 x 35 mm, starter mounting

3шт.

32

892-11012

LOCK WASHER,M12

Starter Mounting

3шт.

33

425-108

NUT,1/2" - 13, Gr 5

Starter mounting

1шт.

34

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Starter mounting

1шт.

35

225-14210

NUT,#10-32

Starter mounting

1шт.

36

492-11010

LOCK WASHER,#10

Starter mounting

1шт.

Выбрано товаров: 25
