Запчасти Case IH 1644 (4-42) - BATTERY AND BATTERY CABLES (06) - ELECTRICAL

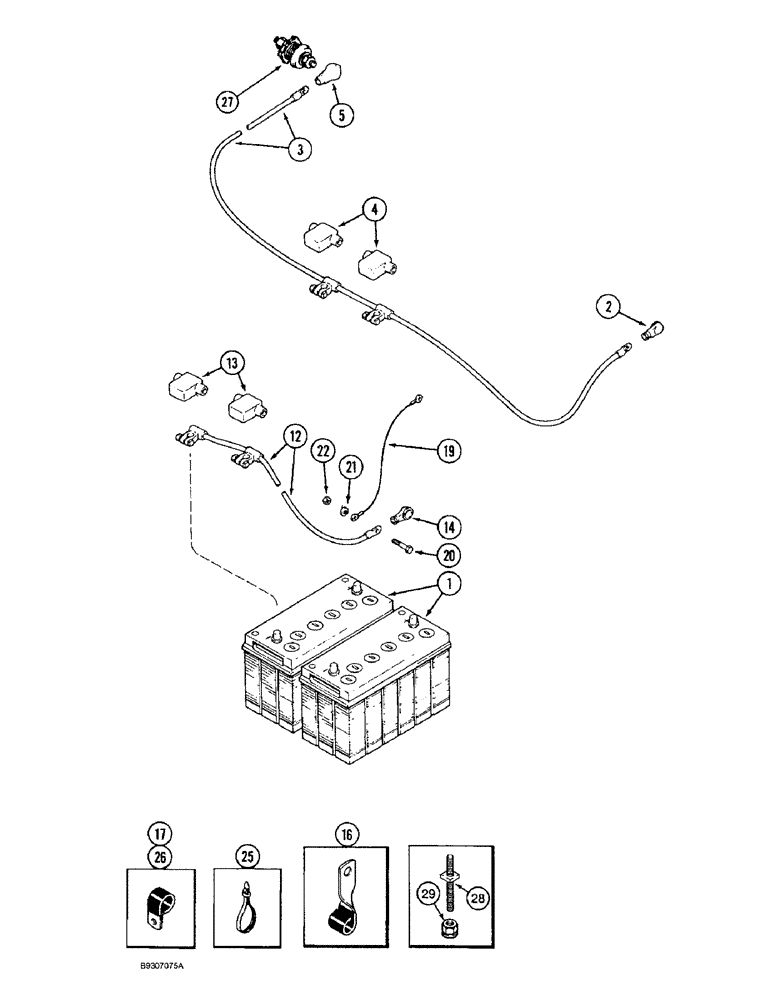

Схема запчастей Case IH 1644 - (4-42) - BATTERY AND BATTERY CABLES (06) - ELECTRICAL
22
29
17
3
25
1
28
14
12
20
13
26
16
4
5
27
2
21
19

Артикул

Название

Примечание

Количество

1

BMF31G

BATTERY, DRY

BATTERY DRY 12V, Electrical supply

2шт.

2

S115407

BOOT

rubber, battery cable starter solenoid

1шт.

3

103842A1

CABLE

ASSEMBLY battery, positive, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

BOOT battery cable

2шт.

5

NSS

NOT SOLD SEPARAT

BOOT battery cable

1шт.

12

92023C3

CABLE

ASSEMBLY battery, ground, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

BOOT battery cable

2шт.

14

NSS

NOT SOLD SEPARAT

BOOT battery cable

1шт.

16

363660R1

CLIP

CLAMP battery cable, positive

1шт.

17

299414C1

CLAMP,7/8", Insul, 1/4" Bolt

CLAMP battery cable, positive

1шт.

19

158477C91

CABLE

ground, Serial Range: engine-combine

2шт.

20

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

22

425-106

NUT,3/8"-16, Cl 5

1шт.

25

702093C1

CABLE TIE

CABLE STRAP

2шт.

26

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type, Harness retaining

1шт.

27

A187523

JUNCTION BLOCK

cable junction

1шт.

28

128289A1

BOLT,5/16" - 18 x 2 3/16"

BOLT battery cable, special

2шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

Выбрано товаров: 19
