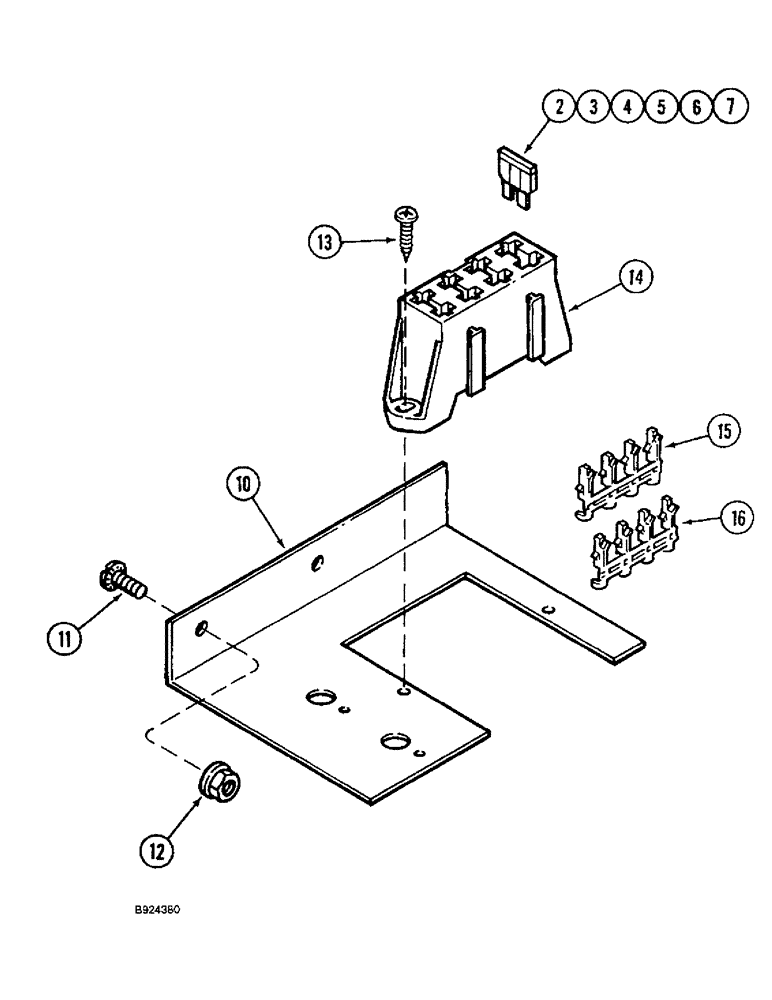

Запчасти Case IH 1644 (4-41A) - FUSE AND FUSE BLOCK (06) - ELECTRICAL

2

A149801

FUSE,Lt Blue, 15 Amp

light blue, 15 ampere

2шт.

3

A149800

FUSE,10 Amp

red, 10 ampere

5шт.

4

A149804

FUSE

light green, 30 ampere

1шт.

5

A149798

FUSE

tan, 5 ampere

2шт.

6

A149796

FUSE

violet, 3 ampere

2шт.

7

A149799

FUSE

brown, 7-1/2 ampere

3шт.

10

1280162C3

SUPPORT

fuse block

1шт.

11

937875R1

SCREW,Serr, 1/4" - 20

slotted truss head, 1/4 NC x 3/4 inch

2шт.

12

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

13

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

self-tapping, hex washer head, 1/4 NC x 1/2 inch

2шт.

14

245435C1

FUSE HOLDER

BLOCK part of console harness, parts list Figure 4-6

3шт.

15

506504C1

TERMINAL CONNECTOR,Female, 1 - 2 mm2

TERMINAL fuse block type L10

1шт.

16

506498C1

TERMINAL CONNECTOR

TERMINAL fuse block type L11

1шт.
