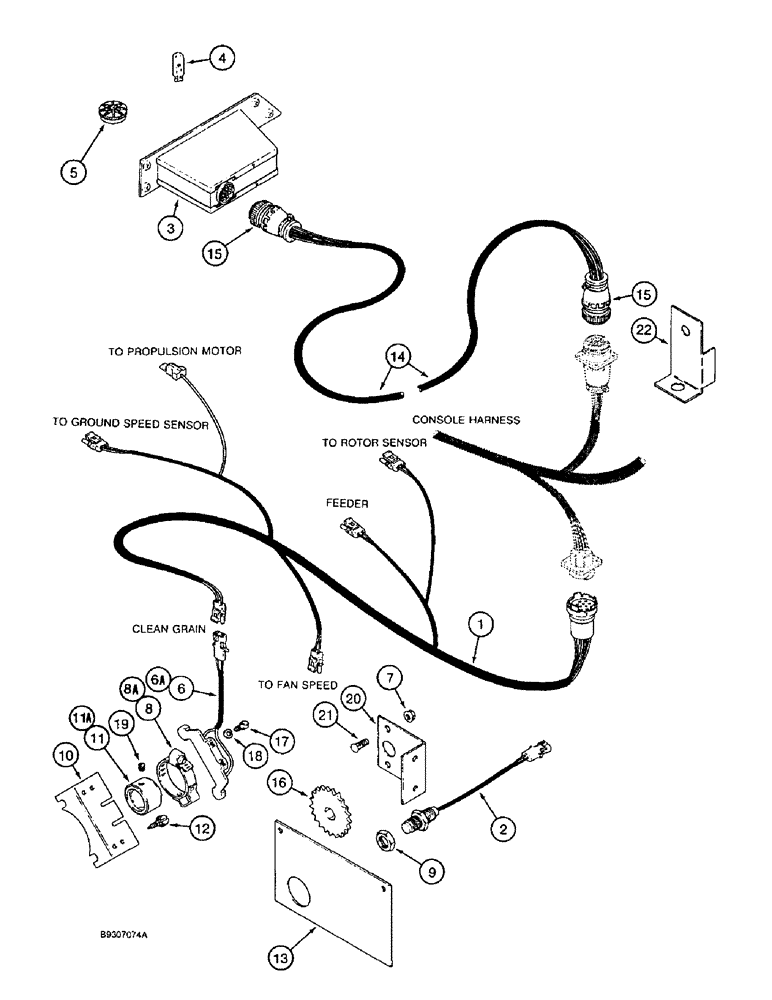

Запчасти Case IH 1644 (4-38) - SHAFT SPEED MONITOR CONTROL (06) - ELECTRICAL

1

1994837C1

HARNESS

shaft speed, rear

1шт.

2

245193C2

SENSOR

transducer, feeder, ground speed, rotor, and fan

4шт.

3

245275C91

CASE ASSY.

MONITOR shaft speed, includes decal, Includes: Ref. 4 and 5

1шт.

3

1935072C1

REMAN-ELECT MONITOR

1644 CASE IH AXIAL-FLOW COMBINE, MONITOR shaft speed (1/93-12/94)

1шт.

3

1935071C1

CORE-MONITOR

Return Number

1шт.

4

A48888

BULB

lamp

1шт.

5

178876C1

SUPPRESSOR

audible alarm

1шт.

6

245365C1

TRANSMITTER

SENSOR monitor control clean grain, Serial Range: -JJC0097782

1шт.

6a

1345482C1

TRANSMITTER

SENSOR clean grain, Start Serial: JJC0097782

1шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

8

178800C1

CLAMP

sensor clean grain, if used

1шт.

8a

178799C1

CLAMP,44.45mm - 63.5mm

MAGNET sensor straw chopper

1шт.

9

84116C1

NUT

hex, self-locking, 3/4 inch NF

1шт.

10

183869C3

SUPPORT

BRACKET sensor clean grain, if used

1шт.

11

1319397C1

COLLAR,31.88mm ID x 44.45mm OD x 23.24mm L

locking clean grain auger, Serial Range: -JJC0097782

1шт.

11a

557115R11

COLLAR

locking clean grain auger, Start Serial: JJC0097782

1шт.

12

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

self-tapping, hex washer head, 1/4-14 x 1/2 inch

4шт.

13

1979323C1

SHIELD

COVER clean grain auger

1шт.

14

245242C1

HARNESS

ASSEMBLY shaft speed, front, Includes: Ref. 15

1шт.

15

131498C1

ELEC CONNECTOR

harness

2шт.

16

1317973C2

SPROCKET ASSY.

feeder sensor with rock trap, if used

1шт.

17

470-1086

SCREW,Pan HD, #8 - 32 x 3/8"

machine, pan head slotted, No. 8 NC x 3/8 inch

3шт.

18

492-11008

LOCK WASHER,#8

3шт.

19

483-1256

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

set, hex socket headless, 1/4 NC x 3/8 inch, cup point, if used

1шт.

20

1330063C1

SUPPORT

sensor, feeder shaft with rock trap, if used

1шт.

21

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

If used

2шт.

22

1317950C1

SUPPORT

sensor feeder, without rock trap

1шт.
