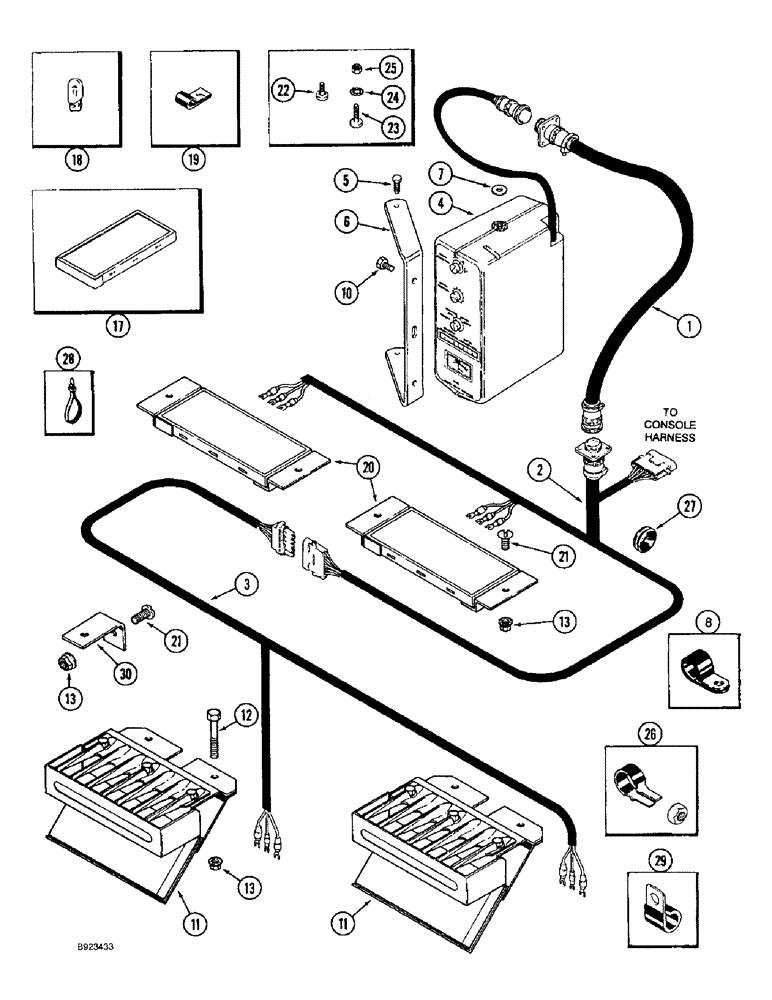

Запчасти Case IH 1644 (4-36) - GRAIN SCAN MONITOR (06) - ELECTRICAL

1

245237C1

HARNESS

cab grain scan

1шт.

2

1994838C1

HARNESS

main sensor

1шт.

3

245930C2

HARNESS

chaffer sensor, if used, With Chaffer Extension

1шт.

3

92047C1

HARNESS

chaffer sensor, Standard (Short) Chaffer

1шт.

1935074C2

REMAN-ELECT MONITOR

REMAN-MONITOR grain scan, remanufactured, North America only

1шт.

1935073C2

CORE-MONITOR

RETURN NUMBER use this part number to return monitor for credit when using a remanufactured assembly

1шт.

4

245360C3

CASE

MONITOR grain scan, new

1шт.

5

326-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

2шт.

6

1280160C2

SUPPORT

BRACKET monitor mounting

1шт.

7

179454C1

RUBBER WASHER

flat, rubber, special

2шт.

8

299565C1

CLAMP

P-type, 11/16 inch ID harness, closed

1шт.

10

313-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

BOLT hex, 5/16 NC x 1/2 inch

2шт.

11

245361C2

TRANSMITTER

BLOCK chaffer sensor

2шт.

12

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

17

245884C1

TRANSMITTER

BLOCK grain sensor

1шт.

18

A48888

BULB

lamp

1шт.

19

A38799

CLAMP

P-type retaining

2шт.

20

245362C1

TRANSMITTER

BLOCK rotor sensor

2шт.

21

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

6шт.

22

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

self-tapping, pan Phillips, No. 10-16 x 3/8 inch

4шт.

23

440-10610

SCREW,Phillips Drive, Pan HD, #6 - 32 x 5/8"

machine, pan Phillips, No. 6 NC x 5/8 inch

4шт.

24

493-11014

LOCK WASHER,Ext-Int Tooth, #6

internal-external tooth, 1/8 inch

4шт.

25

225-14106

NUT,#6-32

4шт.

26

245738C2

CLAMP

retaining, includes 6 clamps and 6 hex nuts

1шт.

27

195806C1

GROMMET

left hand side sheet

1шт.

28

702093C1

CABLE TIE

CABLE STRAP

1шт.

29

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

8шт.

29

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Retaining

2шт.

30

1301242C1

BRACKET

retaining

1шт.
