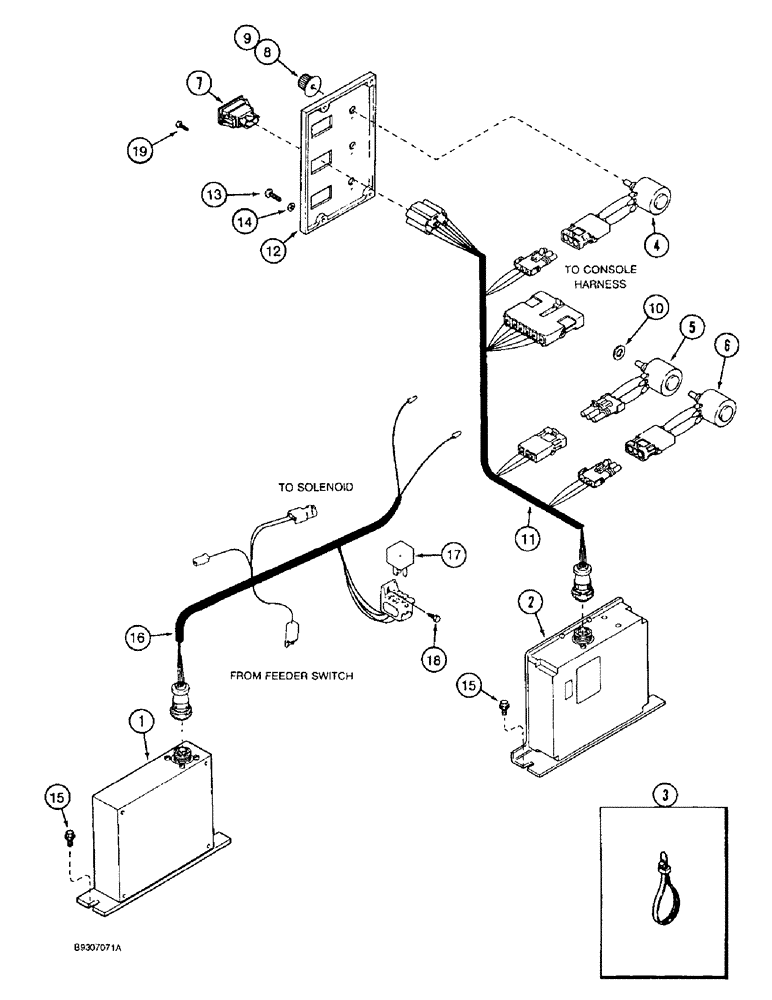

Запчасти Case IH 1644 (4-32) - AUTOMATIC FEEDER CUT-OFF AND AUTOMATIC REEL SPEED, TO GROUND SPEED CONTROLS (06) - ELECTRICAL

1

1983214C1

CONTROL BLOCK

automatic, feeder cutoff

1шт.

2

1983212C1

CONTROL BLOCK

automatic, reel, Serial Range: speed-ground

1шт.

3

702093C1

CABLE TIE

CABLE STRAP

1шт.

4

245637C1

POTENTIOMETER,2500 Ohm

Single, Reel to Ground Speed Ratio

1шт.

5

245925C1

POTENTIOMETER,1000 Ohm

Single, Speed Setting

1шт.

6

245638C1

POTENTIOMETER,200,000 Ohm

Single, Calibration

1шт.

7

245697C1

SWITCH

automatic manual, rocker

1шт.

8

1301036C1

BUTTON

KNOB control, without pointer

1шт.

9

1345235C1

BUTTON

KNOB control, with pointer

1шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

11

245923C1

HARNESS

reel to ground speed

1шт.

12

1280158C2

PANEL

control front, parts list Figure 9G-16, Ref. 28

1шт.

13

265-13516

SELF-TAP SCREW,Cross Oval Hd, #10 x 1"

self-tapping, oval Phillips, No. 10-16 x 1 inch

4шт.

14

1329968C1

WASHER

oval head, finishing No. 10

4шт.

15

281-1476

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

self-tapping, hex washer head, 1/4 NC x 3/8 inch

4шт.

16

1994836C1

HARNESS

automatic feeder cutoff

1шт.

17

1983394C2

RELAY

electrical, 12 volt

1шт.

19

342-10610

SCREW,Cross Oval Hd, #6-32 x 5/8"

machine, oval Phillips, No. 6 NC x 5/8 inch

2шт.
