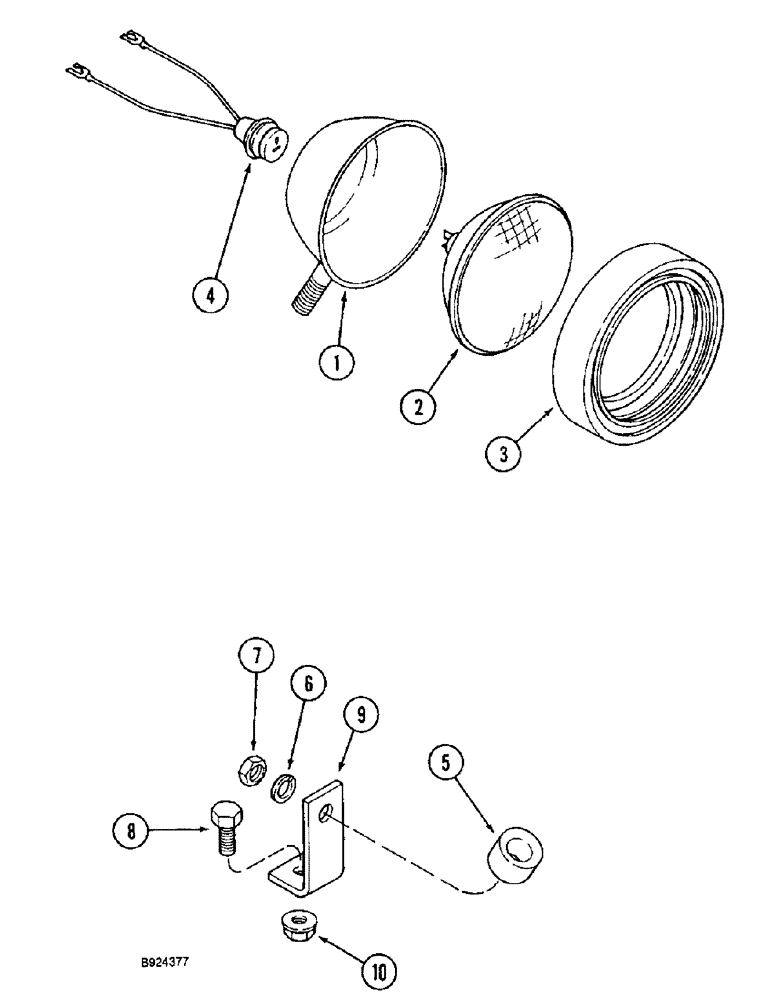

Запчасти Case IH 1644 (4-26) - GRAIN TANK AND UNLOADER LAMP (06) - ELECTRICAL

245954C91

LAMP

ASSEMBLY grain tank and unloader, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY lamp

1шт.

2

A42294

SEALED BEAM UNIT

sealed beam, No. 4406

1шт.

3

A25213

RETAINER

sealed lamp rubber shockproof, use with Hobbs lamp

1шт.

3

1252609C1

RETAINER

shockproof, use with Midwest lamp

1шт.

4

530029R91

CONNECTOR, ELEC

CONNECTOR lamp

1шт.

5

1267358C2

SEAT

lamp mounting

1шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

7

425-108

NUT,1/2" - 13, Gr 5

1шт.

8

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self-locking, special, 3/8 NC x 1 inch

1шт.

9

1317942C1

BRACKET

grain tank light

1шт.

10

231-5146

FLANGE NUT,3/8"-16

1шт.
