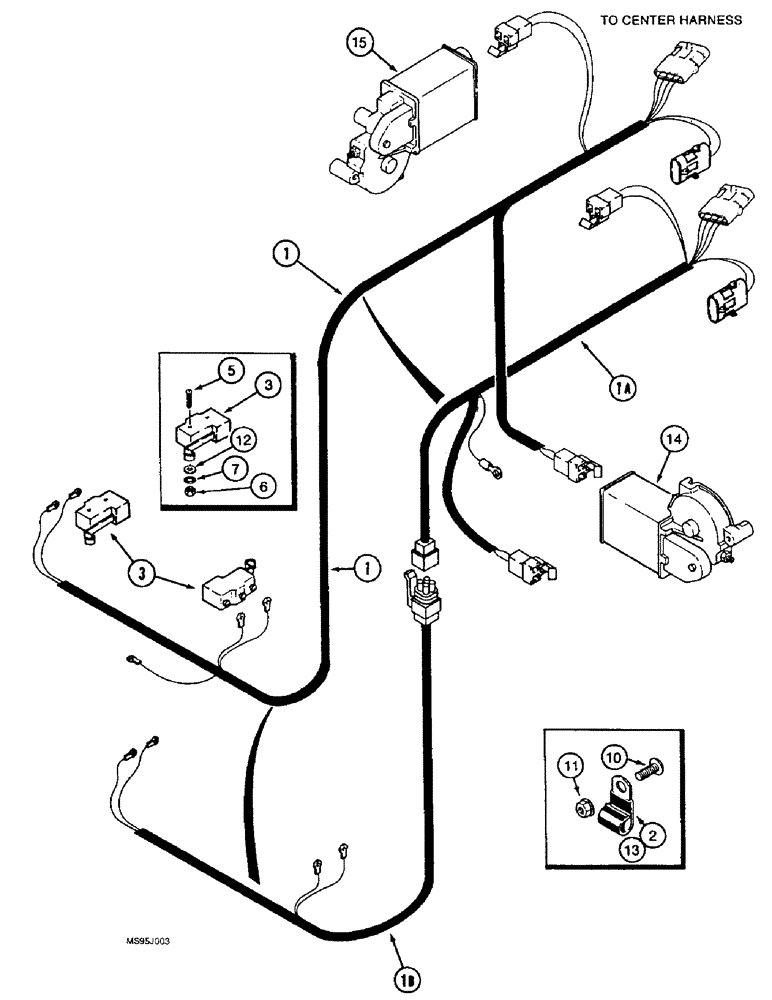

Запчасти Case IH 1644 (4-23A) - FAN AND ROTOR SPEED HARNESS, P.I.N. JJC009794 AND AFTER (06) - ELECTRICAL

1

113982A2

HARNESS

fan and rotor speed, Replaced by 175949A1, Ref. 1A and 245240C1, Ref. 1B

1шт.

1a

175949A1

HARNESS

fan and rotor speed, also order 245240C1, Ref. 1B, Replaces 113982A2, Ref. 1

1шт.

1b

245240C1

WIRE HARNESS

rotor limit switch, also order 175949A1, Ref. 1A, Replaces 113982A2, Ref. 1

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP P-type harness

1шт.

3

128298A1

IGNITION SWITCH

rotor limit

2шт.

5

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

4шт.

6

225-14106

NUT,#6-32

4шт.

7

138526

LOCK WASHER

internal tooth lock, special No. 6

4шт.

10

116494C1

SCREW,Sl Serr Truss Hd, 3/8" - 16 x 1/2"

1шт.

11

231-5146

FLANGE NUT,3/8"-16

1шт.

12

495-31016

WASHER,#6

2шт.

13

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

retaining

1шт.

14

REF

INSTRUCTION

MOTOR electric, variable speed, parts list Figure 9C-12

1шт.

15

REF

INSTRUCTION

MOTOR electric, rotor speed, parts list Figure 9B-8

1шт.
