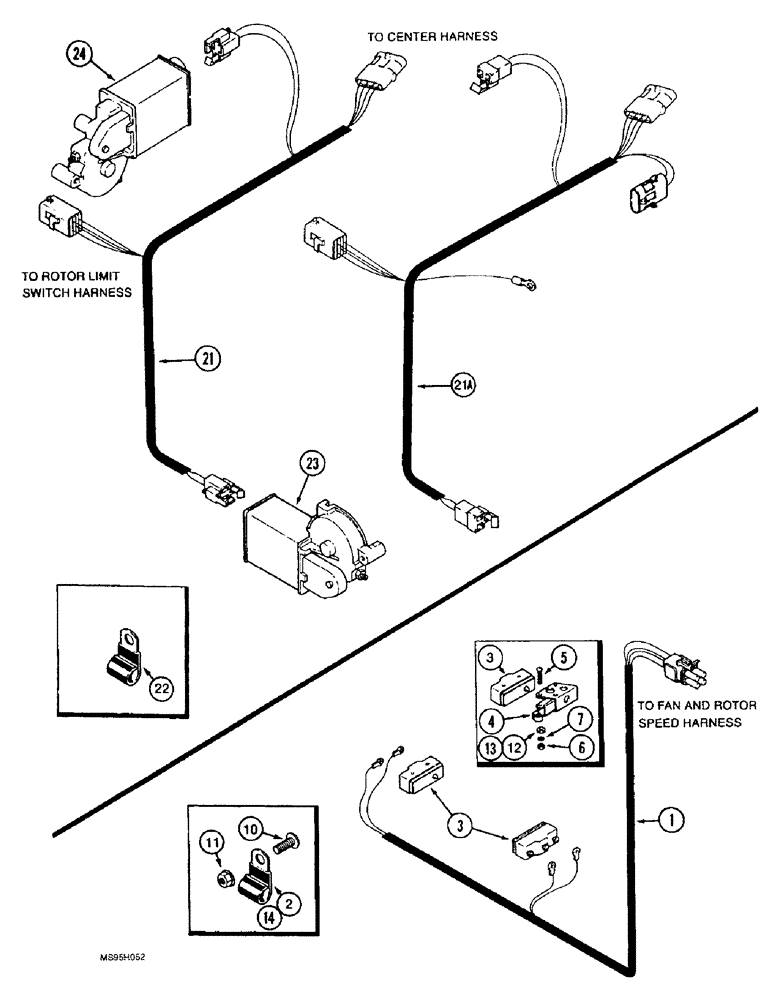

Запчасти Case IH 1644 (4-22) - ROTOR LIMIT SWITCH HARNESS, PRIOR TO P.I.N. JJC0097942, FAN AND ROTOR SPEED HARNESS (06) - ELECTRICAL

1

245240C1

WIRE HARNESS

rotor limit switch

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP P-type harness

1шт.

3

186057C1

SWITCH

rotor limit

2шт.

4

186058C1

IGNITION SWITCH

ACTUATOR rotor limit

2шт.

5

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

4шт.

6

225-14106

NUT,#6-32

4шт.

7

138526

LOCK WASHER

internal tooth lock, special No. 6

4шт.

10

116494C1

SCREW,Sl Serr Truss Hd, 3/8" - 16 x 1/2"

1шт.

11

231-5146

FLANGE NUT,3/8"-16

1шт.

12

495-31016

WASHER,#6

2шт.

13

495-81006

WASHER,6.76mm ID x 19.05mm OD x 1.7mm Thk

flat, 17/64 x 3/4 x 1/16 inch

2шт.

14

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

retaining

1шт.

21

1983397C1

HARNESS

fan and rotor speed, Serial Range: -JJC0097942

1шт.

21a

113982A1

HARNESS

fan and rotor speed, Serial Range: -JJC0097942

1шт.

22

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

retaining harness, fan and rotor speed, Serial Range: -JJC0097942

1шт.

23

REF

INSTRUCTION

MOTOR electric, variable speed, fan and rotor harness, parts list Figure 9C-12, Serial Range: -JJC0097942

1шт.

24

REF

INSTRUCTION

MOTOR ASSEMBLY electric, rotor speed, fan harness, parts list Figure 9B-8, Serial Range: -JJC0097942

1шт.
