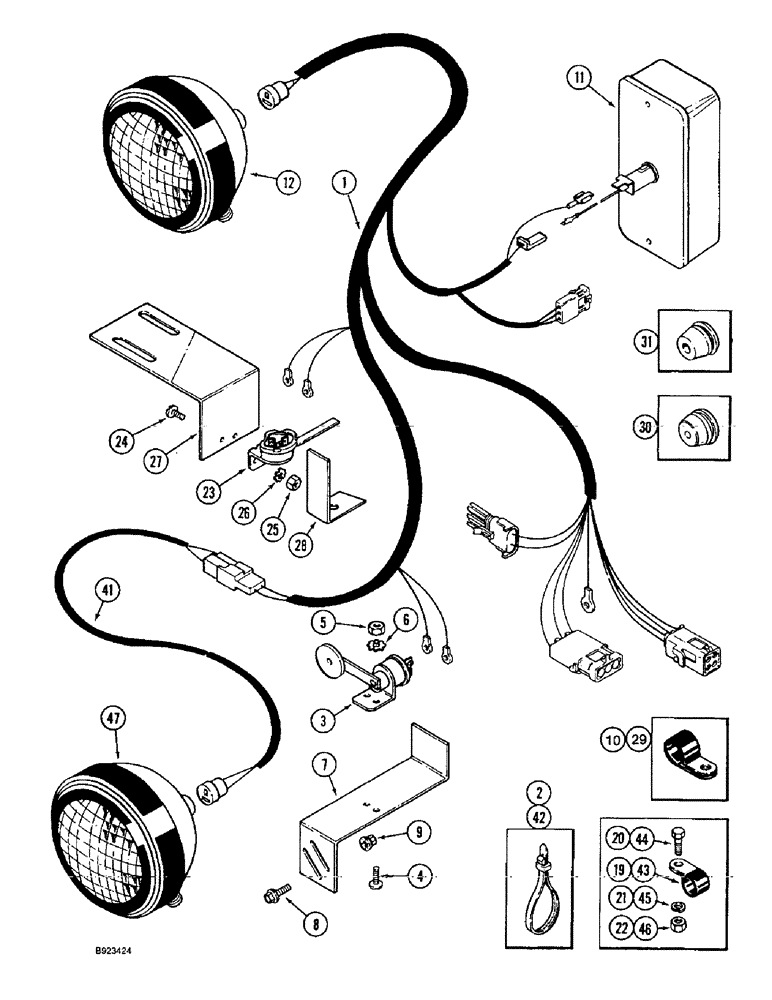

Запчасти Case IH 1644 (4-18) - GRAIN TANK HARNESS, UNLOADER LAMP HARNESS (06) - ELECTRICAL

1

245243C3

HARNESS

grain tank

1шт.

2

702093C1

CABLE TIE

CABLE STRAP

1шт.

3

91436C4

SWITCH

unloader in

1шт.

4

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

2шт.

5

225-14110

NUT,#10-24

2шт.

6

493-81001

LOCK WASHER,Ext-Int Tooth, #10

internal-external tooth lock, 3/16 inch

2шт.

7

1338022C1

SUPPORT

BRACKET unloader in switch

1шт.

8

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

BOLT hex flange, 1/4 NC x 3/4 inch

2шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

10

370383R1

CLIP

CLAMP harness

6шт.

11

130882C91

LAMP

ASSEMBLY warning, right hand front, parts list Figure 4-30

1шт.

12

245954C91

LAMP

ASSEMBLY grain tank, parts list Figure 4-26

1шт.

19

362123R1

CLIP

harness

7шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

21

492-11031

LOCK WASHER,5/16"

12шт.

22

425-105

NUT,5/16"-18, G5

12шт.

23

537641R2

SWITCH ASSY

limit unloader out

1шт.

24

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

2шт.

25

225-13210

NUT,#10-32

2шт.

27

1338003C1

BRACKET

SUPPORT unloader out switch

1шт.

28

1338004C1

BRACKET

unloader out switch

1шт.

29

384557R1

CLIP

CLAMP P-type harness

1шт.

30

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

rubber, 3/8 inch ID grain bin, 3/8 x 1-5/8 x 1-1/16 inch

1шт.

31

195803C1

GROMMET

3/8 inch grain tank harness, upper

2шт.

41

91828C1

HARNESS

unloader lamp

1шт.

42

702093C1

CABLE TIE

CABLE STRAP unloader lamp harness

1шт.

43

299401C1

CLAMP,5/16", Insul, 1/4" Bolt

harness, unloader lamp

3шт.

44

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Unloader lamp harness

3шт.

45

492-11031

LOCK WASHER,5/16"

Unloader lamp harness

3шт.

46

425-105

NUT,5/16"-18, G5

Unloader lamp harness

3шт.

47

245954C91

LAMP

ASSEMBLY unloader, parts list Figure 4-26, unloader harness

1шт.

26

493-81000

LOCK WASHER,Ext-Int Tooth, #10

(3/16")

2шт.
