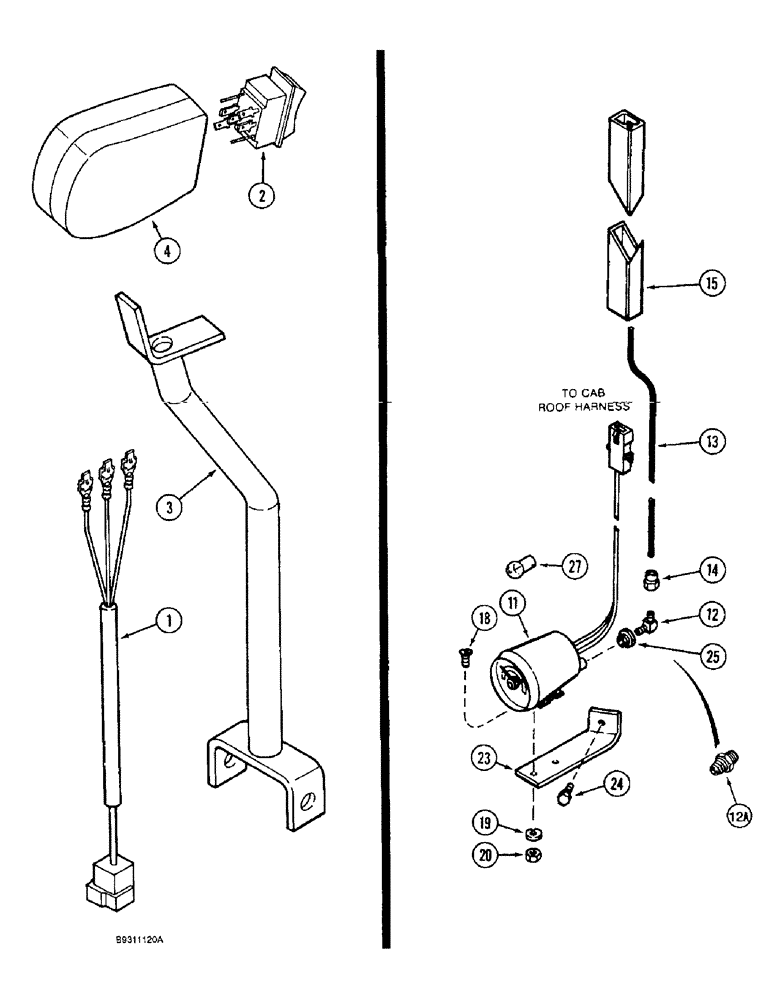

Запчасти Case IH 1644 (4-16) - HEADER LIFT HANDLE HARNESS, POWER BOOST MONITOR (06) - ELECTRICAL

1

245245C2

HARNESS

header lift handle

1шт.

2

91926C1

SWITCH

header lift control

1шт.

3

183508C94

LEVER

propulsion control, see Figure 6-12, Ref. 1 for correct assembly

1шт.

4

1301180C92

HANDLE

control propulsion, see Figure 6-12, Ref. 6 for correct assembly

1шт.

11

1977143C3

GAUGE ASSY.

MONITOR power boost, 15 psi

1шт.

12

222-5115

ELBOW,90 Degree, 5/16"-24 x 1/8" NPTF

90 degree, compression 1/8 tube OD x 1/8 inch PT, if used, power boost monitor

1шт.

12a

222-5104

FITTING,5/16"-24 x 1/8" NPT

ADAPTER compression 1/8 tube OD x 1/8 inch PT, if used, power boost monitor

1шт.

13

1977140C1

PLASTIC-RUBBER TUBE,0.125" OD

204 inch (5182 mm) long, cut from 1954063C1 bulk, see this Figure, engine to monitor, power boost

1шт.

14

1977102C1

FITTING

CONNECTOR tube retaining, power boost monitor

1шт.

15

1977142C1

CONDUIT

harness and tubing, power boost monitor

1шт.

18

368-10810

SCREW,Sl Oval Hd, #8 - 32 x 5/8"

machine, oval head slotted, No. 8 NC x 5/8 inch, power boost monitor

2шт.

19

392-11008

LOCK WASHER,#8

power boost monitor #8

2шт.

20

225-13108

NUT,#8-32

Power boost monitor

2шт.

23

1979103C2

ANGLE

BRACKET monitor support, power boost

1шт.

24

313-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

BOLT hex, 5/16 NC x 1/2 inch, power boost monitor

1шт.

25

1989678C1

FITTING

REDUCER 7/8 PT x 1/8 inch female PT, Replaces 221-87, power boost monitor

1шт.

1979215C1

TAPE

adhesive, not shown, power boost monitor

1шт.

27

28791R1

BULB

lamp, No. 161 monitor, power boost monitor

1шт.

1954063C1

PLASTIC-RUBBER TUBE,0.125" OD

bulk, nylon, 1/16 (2) x 1/8 (3) x 1200 inch (30480 mm) long, see Ref. 13, power boost monitor

1шт.
