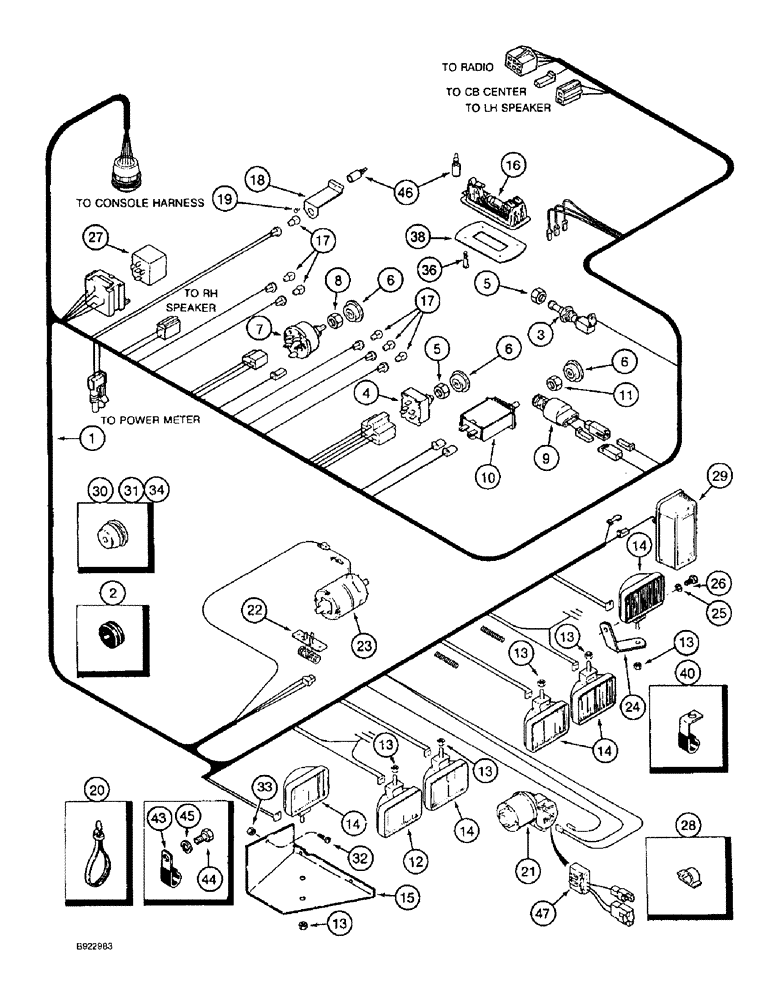

Запчасти Case IH 1644 (4-12) - CAB ROOF HARNESS (06) - ELECTRICAL

1

1994715C1

HARNESS

cab roof

1шт.

2

3063674R1

GROMMET

blower harness

1шт.

3

245175C1

SWITCH

door dome lamp control

1шт.

4

168822C2

SWITCH

blower

1шт.

5

109311H

JAM NUT

hex, jam, 7/16 inch NF

1шт.

6

111282C1

KNOB

KNOB control blower, wiper and thermostat switch

3шт.

7

245734C1

SWITCH

wiper control

1шт.

8

109311H

JAM NUT

hex, jam, 7/16 inch NF

1шт.

9

111267C4

SWITCH, A/C LOW PRES

air conditioner, low pressure

1шт.

9

111267C4GV

SWITCH, A/C LOW PRES

air conditioner, low pressure

1шт.

10

109268C2

SWITCH

cab thermostat

1шт.

11

109311H

JAM NUT

hex, jam, 7/16 inch NF

2шт.

12

245555C1

LAMP

40 x 7 Halogen, hi-low, fog

1шт.

14

245897C91

LAMP, WORK

LIGHT, WORK LAMP 80 x 30 Halogen, work and outer flood

5шт.

15

1283449C3

BRACKET

lamp mounting, includes shield

1шт.

16

1983391C1

LAMP,12V, 10W

ASSEMBLY parts list Figure 4-30

1шт.

17

A14553

BULB

No. 57 cab instrument panel and warning lamp

4шт.

18

1281975C1

BRACKET

SUPPORT instrument panel bulb mounting

4шт.

19

260-5448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

Phillips

4шт.

20

111619C1

STRAP

tie adjustable

6шт.

21

109740A1

WIPER MOTOR

MOTOR, WIPER ASSEMBLY includes mounting bracket, parts list Figure 4-54

1шт.

22

1255876C1

RESISTOR

blower motor

1шт.

23

142990C2

MOTOR, ELECTRIC

blower, 12 volt DC, PM, for blower assembly parts list Figure 9G-38

1шт.

190333A1R

REMAN-ELECTRIC MOTOR,12V

1644, Reman For New P/N's 142990C2 & 190333A1,

1шт.

190333A1C

CORE-ELECTRIC MOTOR,12V

Return Number

1шт.

24

1281876C1

BRACKET

outer flood lamp mounting, left hand

1шт.

25

492-21050

LOCK WASHER,1/2"

1шт.

26

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

27

1983394C2

RELAY

electrical, 12 volt, air conditioner

1шт.

28

169850C2

CABLE CLIP

Retaining harness, plastic

7шт.

29

130882C91

LAMP

ASSEMBLY warning, parts list Figure 4-30

1шт.

30

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

rubber, 1/2 inch ID, lamp harness, right hand

1шт.

31

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

5/8 inch ID, lamp harness, left hand

1шт.

32

436746

SCREW

machine, special, No. 10 NF x 1/4 inch

2шт.

33

225-13110

NUT,#10-24

1шт.

34

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

1 inch ID, deck harness, right hand

1шт.

36

260-53424

SELF-TAP SCREW,Cross Pan Hd, #8 x 1 1/2"

self-tapping, pan Phillips, No. 8-18 x 1-1/2 inch dome lamp plate

4шт.

38

1979628C1

LARGE PLATE

PLATE, LARGE dome lamp

1шт.

40

370383R1

CLIP

CLAMP warning lamp

4шт.

43

371036R1

CLIP

CLAMP retaining rubber covered

1шт.

44

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

hex, 5/16 NC x 1/2 inch

1шт.

45

492-11031

LOCK WASHER,5/16"

1шт.

46

117995C1

PACKAGE

KIT fastener, includes 5 fasteners

1шт.

47

115400A1

HARNESS

ADAPTER cab roof to wiper motor

1шт.
