Запчасти Case IH 1644 (4-06) - CONSOLE HARNESS, RIGHT HAND SIDE (06) - ELECTRICAL

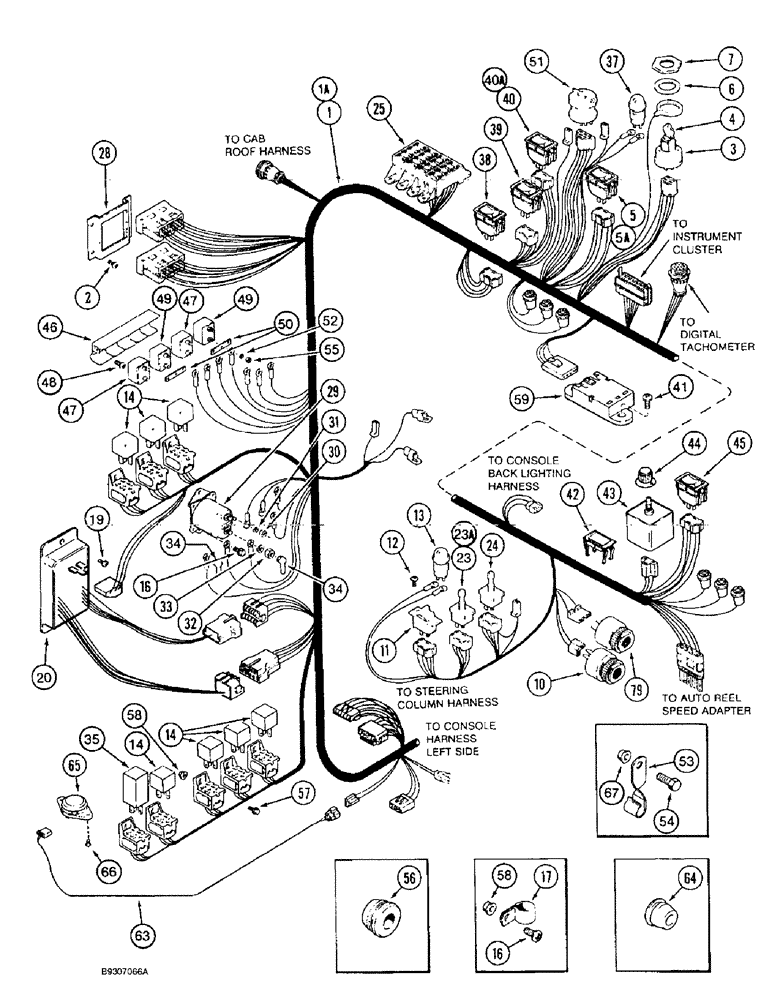

Схема запчастей Case IH 1644 - (4-06) - CONSOLE HARNESS, RIGHT HAND SIDE (06) - ELECTRICAL
20
53
58
1
40a
64
23
34
16
57
30
3
2
44
5
33
52
50
10
13
38
58
5a
45
56
17
55
49
46
35
59
25
49
16
4
34
54
14
39
41
14
42
14
1a
11
65
66
47
32
29
31
43
37
67
19
6
19
28
48
24
51
47
40
12
23a
7
63

Артикул

Название

Примечание

Количество

1

1994820C1

HARNESS

console, Serial Range: -JJC0097942

1шт.

1a

114976A2

HARNESS

console, Start Serial: JJC0097942

1шт.

2

281-6456

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

self-tapping, hex washer head, No. 10 NF x 3/4 inch

10шт.

2

261-13512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

self-tapping, pan Phillips No. 10 NC x 3/4 inch

2шт.

3

1252476C1

SWITCH

ignition, key starting

1шт.

4

131313C1

KEY, IGNITION

starting switch

1шт.

5

245219C1

SWITCH

rotor speed, Serial Range: -JJC0097942

1шт.

5a

113971A1

SWITCH

rotor speed, Start Serial: JJC0097942

1шт.

6

375431R1

LOCK WASHER

flat, special

1шт.

7

365502R1

NUT

flat hex, special mounting

1шт.

10

245854C1

BUZZER

ALARM audible

1шт.

11

1301175C1

SWITCH

reel lift control

1шт.

12

342-10610

SCREW,Cross Oval Hd, #6-32 x 5/8"

machine, oval Phillips No. 6 NC x 5/8 inch

2шт.

13

453453C1

SWITCH

push button feeder reverser

1шт.

14

1983394C2

RELAY

electrical, 12 volt

7шт.

16

281-1476

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

self-tapping, hex washer head, 1/4 NC x 3/8 inch

1шт.

17

299277C91

CLIP

CLAMP console harness

2шт.

19

281-6456

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

self-tapping, hex washer head, No. 10 NF x 3/4 inch

2шт.

20

1994871C1

GOVERNOR

RECTIFIER central load dump

1шт.

23

1964919C1

IGNITION SWITCH

feeder clutch, Serial Range: -JJC0097942

1шт.

23a

122332A1

SWITCH

feeder clutch, Start Serial: JJC0097942

1шт.

24

245632C1

SWITCH

seperator clutch

1шт.

25

245435C1

FUSE HOLDER

BLOCK fuse parts list Figure 4-41A for terminals and fuses

1шт.

28

NSS

NOT SOLD SEPARAT

BRACKET feedback module mounting, 1994820C1 harness

1шт.

29

107655C1

SOLENOID SWITCH

SWITCH magnetic cab power, Includes: Ref. 30 - 33

1шт.

30

225-14210

NUT,#10-32

1шт.

31

492-11010

LOCK WASHER,#10

1шт.

32

425-105

NUT,5/16"-18, G5

2шт.

33

492-11031

LOCK WASHER,5/16"

2шт.

34

399470R1

BOOT

cable

2шт.

35

1994819C1

RELAY

time delay

1шт.

37

453453C1

SWITCH

push button ether start

1шт.

38

245012C1

SWITCH

rocker, 4 wheel drive

1шт.

39

245012C1

SWITCH

rocker, two speed, variable propulsion

1шт.

40

245219C1

SWITCH

fan speed, Serial Range: -JJC0097942

1шт.

40a

245336C1

SWITCH

fan speed, Start Serial: JJC0097942

1шт.

41

260-1448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

self-tapping, pan Phillips No. 8-18 x 1/2 inch

2шт.

42

245334C1

PLUG

panel switch cover

1шт.

43

245653C2

SWITCH

reel speed manual

1шт.

44

1301036C1

BUTTON

KNOB control reel speed switch

1шт.

45

245509C1

SWITCH

reel, fore and aft

1шт.

46

245871C1

BRACKET

circuit breaker

1шт.

47

245765C1

CIRCUIT-BREAKER,30A

30 ampere work lamp and blower

2шт.

48

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

2шт.

49

245763C1

CIRCUIT-BREAKER,20A

20 ampere cab

2шт.

50

245860C1

BAR

circuit breaker

2шт.

51

107200C2

LIGHT SWITCH

lamp

1шт.

52

492-11010

LOCK WASHER,#10

8шт.

53

363660R1

CLIP

CLAMP twisted, console harness

1шт.

54

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

1шт.

55

225-14210

NUT,#10-32

8шт.

56

92065C1

GROMMET

rubber console harness

1шт.

57

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

slotted truss head, 1/4 NC x 1/2 inch

1шт.

58

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

59

121770C2

TRANSMITTER

MODULE low coolant

1шт.

63

1345209C1

HARNESS

seat switch

1шт.

64

195804C1

GROMMET

console

1шт.

65

1983395C1

IGNITION SWITCH

seat

1шт.

66

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

2шт.

67

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

79

1983568C1

BUZZER

ALARM grain tank level

1шт.

Выбрано товаров: 61
