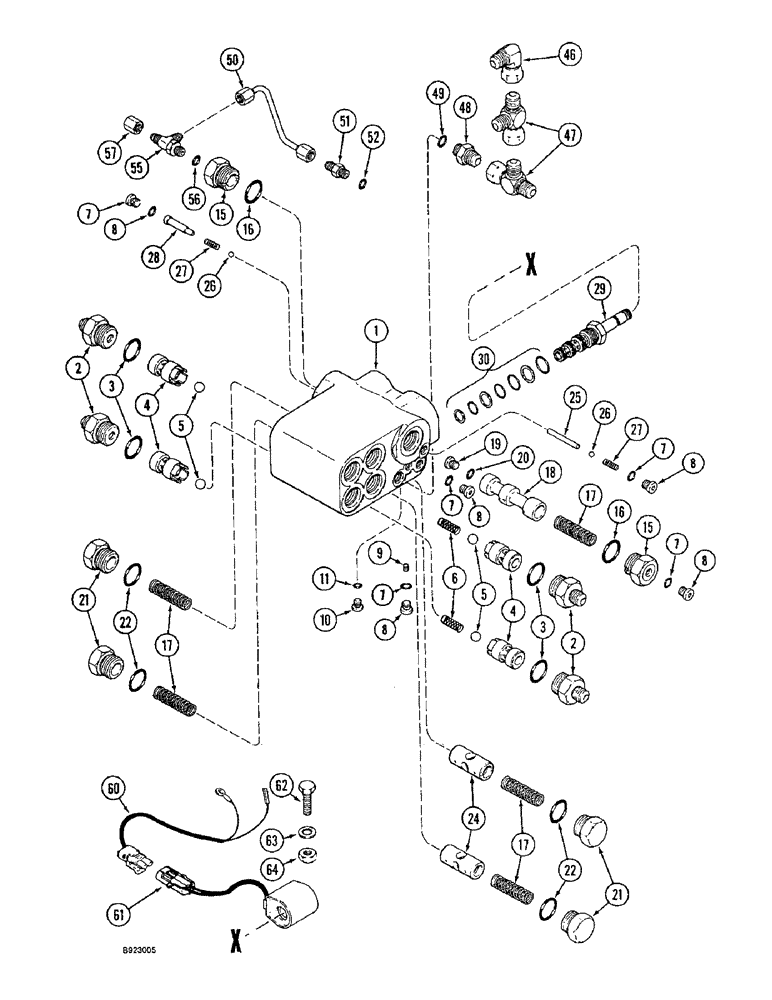

Запчасти Case IH 1644 (5-40) - SELECTOR VALVE, POWER GUIDE AXLE (04) - STEERING

1978000C1

VALVE

ASSEMBLY selector steering, Includes: Ref. 1 - 30

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 3/4 - 16 flare x 1-1/16 - 12 inch O-ring boss

4шт.

3

NSS

NOT SOLD SEPARAT

O-RING connector

4шт.

4

NSS

NOT SOLD SEPARAT

SEAT check ball

4шт.

5

NSS

NOT SOLD SEPARAT

BALL check, 9/16 inch diameter

4шт.

6

NSS

NOT SOLD SEPARAT

SPRING check, reverse

2шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

7шт.

8

278548

PLUG,Hex, 7/16"-20 ORB

6шт.

9

NSS

NOT SOLD SEPARAT

PLUG orifice, 1/16 - 27 PT

1шт.

10

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

hex, 5/16 - 24 inch O-ring boss

1шт.

11

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

15

1970176C1

PLUG

hex, special

2шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

17

NSS

NOT SOLD SEPARAT

SPRING spool, flow divider and selector

5шт.

18

NSS

NOT SOLD SEPARAT

SPOOL selector

1шт.

19

NSS

NOT SOLD SEPARAT

PLUG orifice

1шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

21

1979118C1

PLUG

hex flow divider spool

4шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

24

NSS

NOT SOLD SEPARAT

SPOOL flow divider

2шт.

25

NSS

NOT SOLD SEPARAT

PIN dowel

1шт.

26

211-1010

BALL,5/16" OD

chrome alloy steel, 5/16 inch, grade 24

2шт.

27

NSS

NOT SOLD SEPARAT

SPRING shuttle, low priority

2шт.

28

NSS

NOT SOLD SEPARAT

SPACER spring

1шт.

29

187849C1

SOLENOID VALVE

4-way, cartridge only, Includes: Ref. 30

1шт.

30

187850C1

SEAL KIT

KIT replacement service, washer and O-ring, solenoid valve

1шт.

46

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

47

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

2шт.

48

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER straight, 3/4 - 16 flare x 9/16 - 18 inch O-ring boss

1шт.

49

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

50

1970140C1

TUBE,4.78 mm ID

pressure, charge

1шт.

51

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER

1шт.

52

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

55

218-5289

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

TEE 7/16 - 20 inch flare branch x flare x adj O-ring boss

1шт.

56

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

57

218-752

CAP,37 Degree, 7/16"-20

Hex

1шт.

1345300C1

KIT

KIT solenoid coil, Includes: Ref. 60 - 64

1шт.

60

1340843C1

SOLENOID,12V

KIT solenoid, 12 volt, Includes: Ref. 61 - 64

1шт.

61

1345302C1

WIRE HARNESS

solenoid

1шт.

62

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

63

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

64

425-106

NUT,3/8"-16, Cl 5

1шт.
