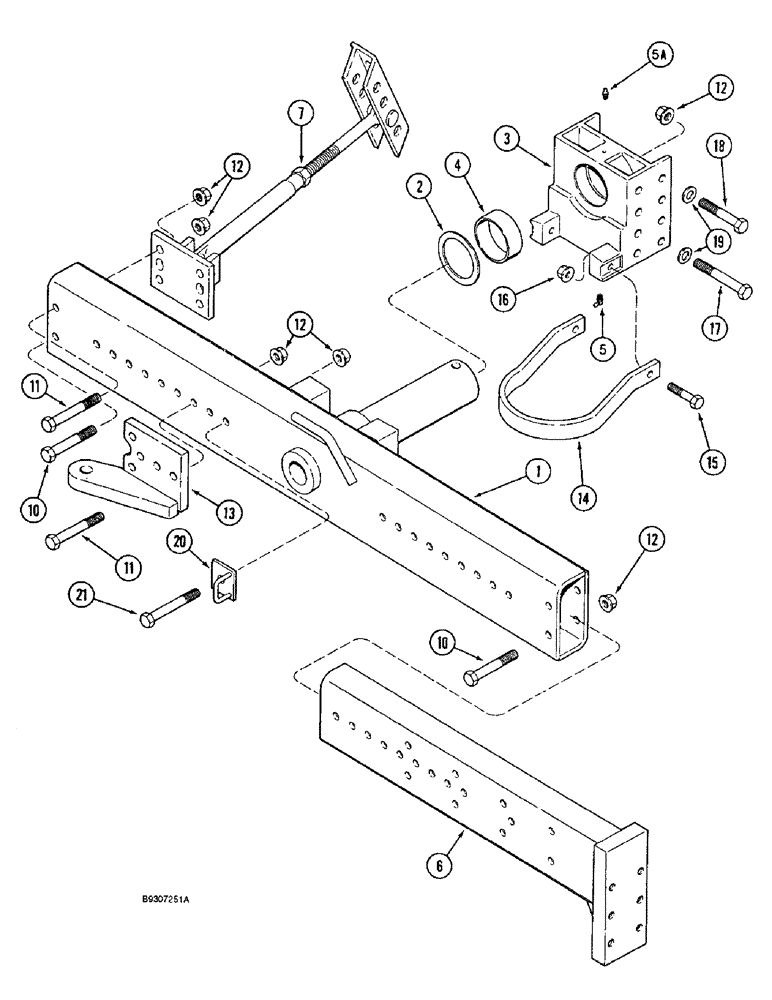

Запчасти Case IH 1644 (5-36) - STEERING AXLE AND EXTENSIONS, POWER GUIDE AXLE (04) - STEERING

1

1968991C1

AXLE

adjustable, 108 to 144 inch

1шт.

2

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

flat, special thrust, pivot shaft

4шт.

3

186599C93

SUPPORT

axle pivot, Includes: Ref. 4

1шт.

4

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

pivot, axle

2шт.

5

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper

2шт.

5a

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

6

1968992C1

AXLE

EXTENSION

2шт.

7

REF

INSTRUCTION

SUPPORT ASSEMBLY axle, parts list Figure 5-34

2шт.

10

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

10шт.

11

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

4шт.

12

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

1шт.

13

1968993C1

SUPPORT

steering bracket

1шт.

14

1979114C1

STRAP

tow

1шт.

15

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

16

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

2шт.

17

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

2шт.

18

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

6шт.

19

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

20

1979120C1

GUIDE

CLAMP P-type, special, 1-1/2 inch ID hose, cylinder

1шт.

21

326-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

1шт.
