(5-30) - SELECTOR VALVE MOUNTING, POWER GUIDE AXLE

Запчасти Case IH 1644 (5-30) - SELECTOR VALVE MOUNTING, POWER GUIDE AXLE (04) - STEERING

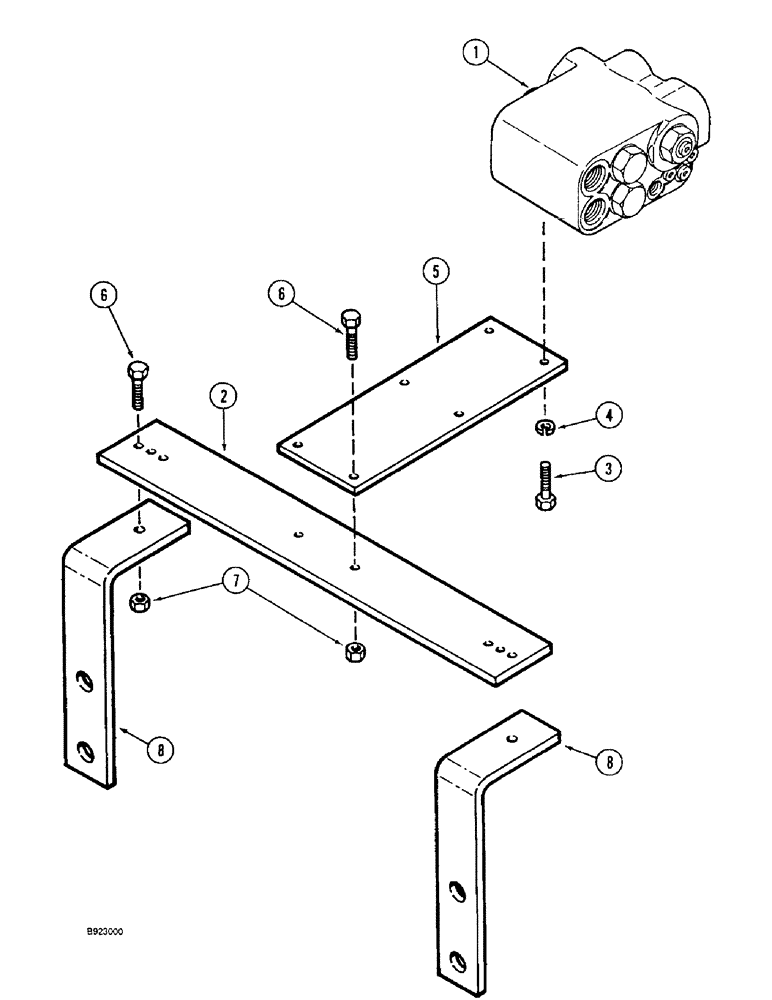

Схема запчастей Case IH 1644 - (5-30) - SELECTOR VALVE MOUNTING, POWER GUIDE AXLE (04) - STEERING
2
5
8
7
8
4
6
1
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1978000C1

VALVE

ASSEMBLY selector, parts list Figure 5-40

1шт.

2

1324455C2

PLATE

PLATE mounting valve

1шт.

3

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

1324454C3

BAR

PLATE mounting valve

1шт.

6

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

7

232-4116

NUT,3/8"-16, GC

4шт.

8

1324471C1

BRACKET

SUPPORT valve

2шт.
