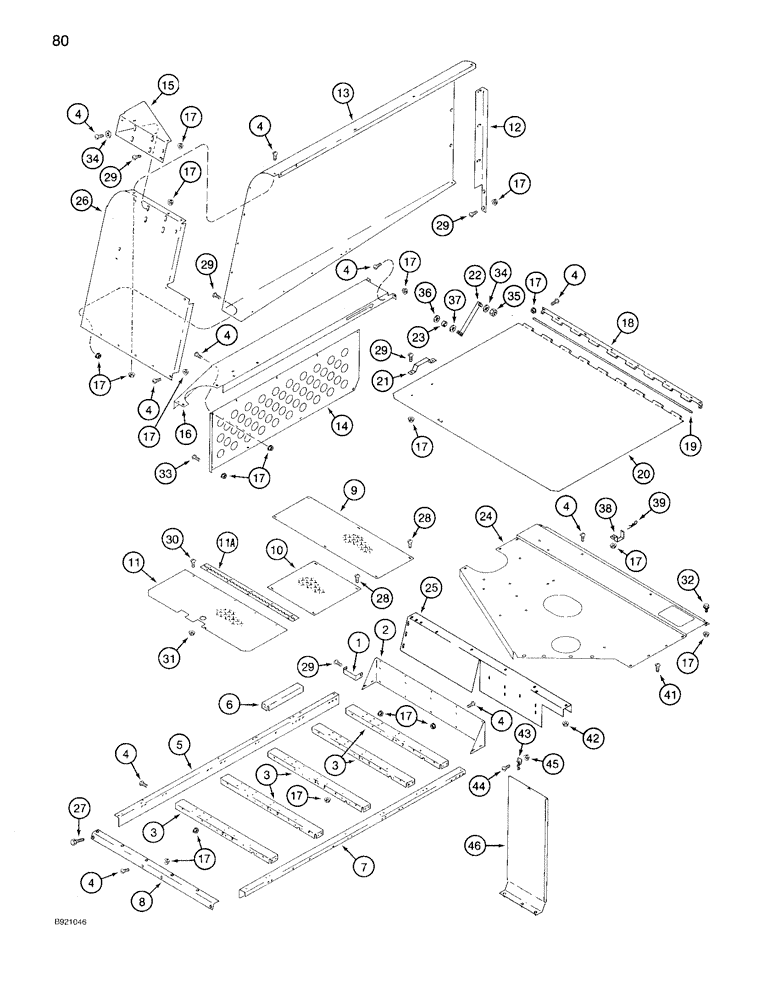

Запчасти Case IH 1640 (80) - ENGINE SHIELD AND SERVICE DECK (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

188419C1

CHANNEL

BRACKET - grain tank rear upper left

1шт.

2

193435C2

SUPPORT

- engine service deck

1шт.

3

192959C6

SUPPORT

- deck

5шт.

4

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

69шт.

4

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

4

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

5шт.

5

188368C4

ANGLE

BRACKET - left, deck support

1шт.

6

1979830C1

SUPPORT

- deck

1шт.

7

192960C6

ANGLE BAR

SUPPORT - deck, right

1шт.

8

193146C3

ANGLE

- engine deck, rear support

1шт.

9

1979874C1

PLATE

- engine compartment, front

1шт.

10

1979827C1

PLATE

- engine compartment

1шт.

11

1977155C1

DOOR

- service deck

1шт.

11a

186695C1

HINGE

- service deck door

1шт.

12

188377C1

ANGLE

- shield stiffner, left upper

1шт.

13

1347060C2

SUPPORT

- rear upper left trim

1шт.

14

1302703C2

SHEET ASSY.

PLATE - rotor cover to service deck

1шт.

15

1330481C2

SUPPORT

- LH Rear, Upper shield

1шт.

16

1541854C2

SUPPORT

- door and hood

1шт.

17

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

115шт.

18

194477C2

HINGE

- rotor cover door

1шт.

19

194478C1

ROD

- rotor door hinge

1шт.

20

186197C92

DOOR

- engine and rotor drive cover

1шт.

21

160638C1

HANDLE

- rotor door

1шт.

22

1302413C1

PROP

LINK - door hold up

1шт.

23

568257R1

SPACER,1/2" Tube x 3/8"

- 1/2 x 3/8 inch tube

1шт.

24

1541844C3

SUPPORT

- top cover, rear

1шт.

25

1541955C1

SUPPORT

- air cleaner

1шт.

26

1347130C1

PROTECTION PLATE

SUPPORT - engine, left rear

1шт.

27

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

28

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

20шт.

29

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 x 1/2 inch

29шт.

30

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

BOLT - slotted truss head, 1/4 x 1/2 inch

18шт.

31

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch

18шт.

32

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

19шт.

33

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss head 5/16 x 1 inch

3шт.

34

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

2шт.

35

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - prevailing torque lock, 5/16 NC inch

2шт.

36

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 3/64 inch

1шт.

37

567532R1

WASHER

- flat, 21/64 x 1/2 x 5/32 inch

1шт.

38

1979316C2

SUPPORT

- engine compartment door

1шт.

39

480523R1

HAIR PIN COTTER

9/64" dia

1шт.

40

D55216

PAD,2" x 9"

STRIP - anti-skid, not shown

10шт.

41

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

2шт.

42

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

43

167800C1

CLIP

LATCH - door

2шт.

44

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan head Phillips, No. 10 NC x 1/2 inch

2шт.

45

174097C1

FLANGE NUT,Flg, USR, #10-24

- hex flange lock, No. 10-24

2шт.

46

1977286C3

SUPPORT

- air shield

1шт.
