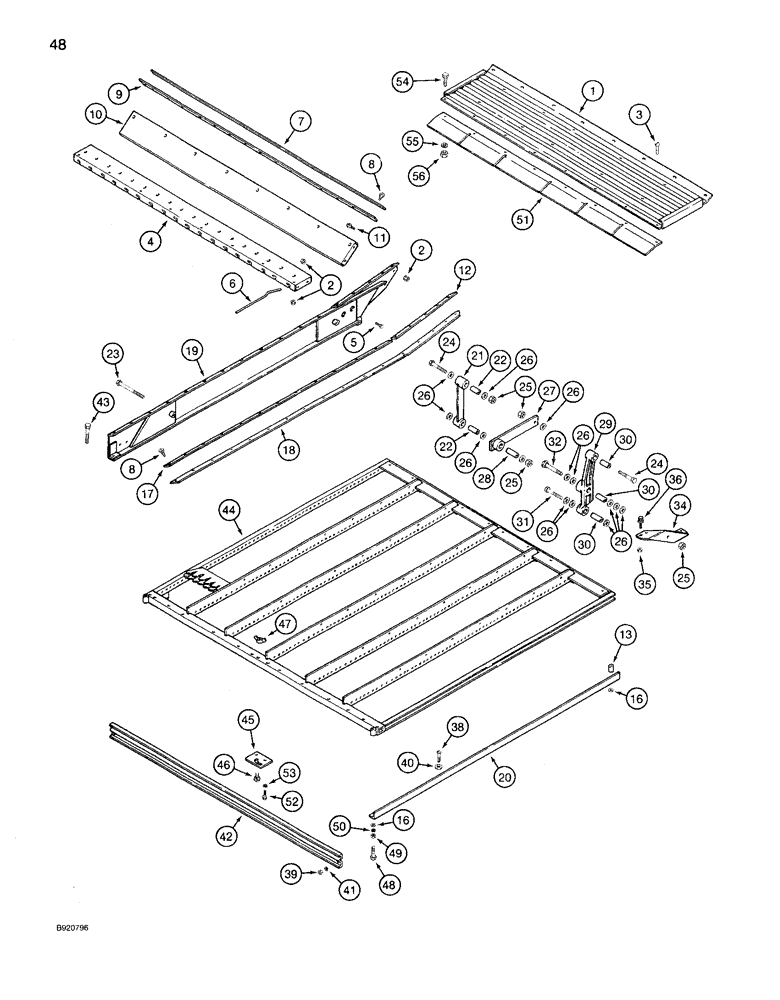

Запчасти Case IH 1640 (48) - CHAFFER SIEVE, EXTENDED LENGTH CLEANING SYSTEM (74) - CLEANING
№
Артикул
Название
Примечание
Количество
1
1312154C1
SIEVE
PAN - grain
1шт.
2
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
- hex flange lock, 5/16 inch NC
24шт.
3
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
- slotted truss head, 5/16 NC x 1/2 inch
20шт.
4
1312156C1
SUPPORT
- chaffer pan
1шт.
5
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
Hex Flg, 5/16-18 x 3/4", Serr
4шт.
6
175114C1
FINGER,Formed, 1 Prong, 264mm L
- auger bed, short
20шт.
6
1312476C1
FINGER,Formed, 1 Prong, 495.5mm L
- auger bed, long
20шт.
7
192048C2
BAR
- front chaffer frame seal
1шт.
8
SELF-TAP SCREW,1/4" - 20 x 1/2"
SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch
1шт.
9
192047C1
SEAL,63.5mm W x 1143mm L
STRIP - chaffer frame front
1шт.
10
192044C1
SUPPORT
- chaffer frame
1шт.
11
202107C1
BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"
- hex flange lock, 5/16 NC x 3/4 inch
8шт.
12
192052C2
BAR
- chaffer frame seal, short
2шт.
13
645342C1
SPACER,10.34mm ID x 15.87mm OD x 25.4mm L
- chaffer sieve support, front
2шт.
16
495-81138
WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk
- flat, 13/32 x 1 x 11/64 inch
4шт.
17
1325332C1
BAR
- chaffer frame seal, long
2шт.
18
1325331C1
SEALING STRIP
STRIP - chaffer frame
2шт.
19
1979206C1
RAIL
- chaffer, left
1шт.
19
1979207C1
RAIL
- chaffer, right
1шт.
20
1325334C2
ANGLE
- chaffer support, right
1шт.
20
1325333C3
SUPPORT
ANGLE - chaffer support, left
1шт.
21
1957455C1
ARM
- rear hanger
2шт.
22
1330324C1
BUSHING
- front hanger
2шт.
23
326-10112
BOLT,Hex, 5/8" - 11 x 7", Gr 8
2шт.
24
326-1064
BOLT,Hex, 5/8" - 11 x 4", Gr 8
2шт.
25
131-1219
LOCK NUT,5/8"-11, GC
NUT, LOCK, 5/8"-11, GC
10шт.
25
425-1410
JAM NUT,Jam, 5/8"-11, G5
- hex, jam, 5/8 inch NC
3шт.
26
495-81057
WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk
- flat, 29/32 x 1-1/2 x 7/64 inch
2шт.
27
1330357C1
ARM
- shoe rear
2шт.
28
1330324C1
BUSHING
- shoe arm
1шт.
29
1957460C2
LEVER
- shoe
2шт.
30
1330323C2
BUSHING
- shoe lever
3шт.
31
433-1080
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5
BOLT - hex, 5/8 NC x 5 inch, grade 8
2шт.
31
326-1092
BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 8
2шт.
32
433-1080
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5
BOLT - carriage, 5/8 x 6 inch
2шт.
34
1968827C1
SUPPORT
- shoe lever, left
1шт.
34
1968828C1
SUPPORT
- shoe lever, right
1шт.
35
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
- hex, self-locking, 3/8 inch
4шт.
36
541313R1
BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"
- hex, 3/8 x 3/4 inch
4шт.
38
443-13116
SCREW,Cross Flat Hd, 5/16"-18 x 1"
1шт.
39
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
1шт.
40
495-81112
WASHER,.344" x 3/4" x .120"
- flat, 11/32 x 3/4 x 7/64 inch
2шт.
42
1322458C3
SUPPORT
CHANNEL - rear
1шт.
43
426-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8
1шт.
44
1957314C4
GRAIN SIEVE
SIEVE - 1-5/8 inch extended, closz slat chaffer
1шт.
44
1957316C3
GRAIN SIEVE
SIEVE - 1-1/8 inch extended, adjustable chaffer
1шт.
44
1957315C4
GRAIN SIEVE
SIEVE - 1-5/8 inch extended, corn slat chaffer
1шт.
44
1325323C4
GRAIN SIEVE
SIEVE - extended length, with piano wire
1шт.
44
1970516C4
GRAIN SIEVE
SIEVE - Petersen extended chaffer
1шт.
45
186675C1
ADJUSTING PLATE
- chaffer lever
1шт.
46
434-48
CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5
Bolt, Carriage, Short NK, 1/4"-20 x 1/2", G5, Full Thd
1шт.
47
126177
WING NUT
NUT - wing, 1/4 inch NC
1шт.
48
426-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8
2шт.
49
429-106
NUT,3/8"-16, G8
- hex, 3/8 inch NC, grade 8
4шт.
50
366862C1
LOCK WASHER,3/8"
3/8"
2шт.
51
1319259C1
COVER
- chaffer finger
1шт.
52
1327799C1
BOLT,Hex Wshr Hd, 3/8" x 1 1/4"
BOLT - hex washer head, 3/8 x 1-1/4 inch
2шт.
53
492-11038
LOCK WASHER,3/8"
2шт.
54
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
- hex, 1/4 NC x 3/4 inch
8шт.
55
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
8шт.
56
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC
8шт.
Выбрано товаров: 63
