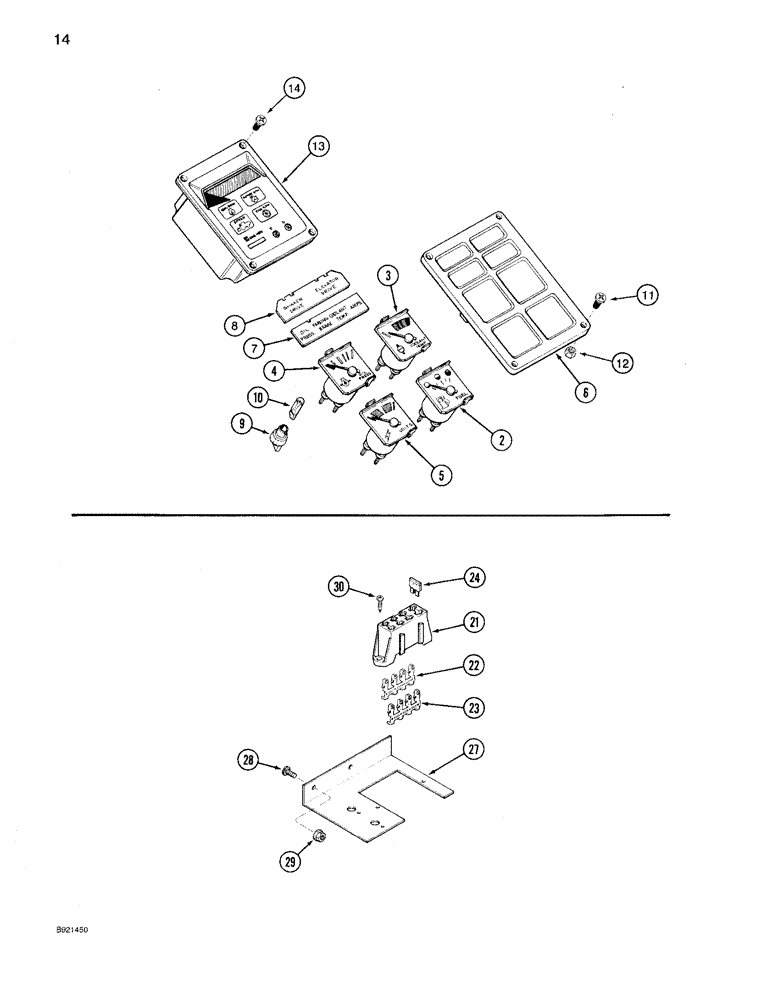

Запчасти Case IH 1640 (14) - INSTRUMENT CLUSTER AND TACHOMETER (55) - ELECTRICAL SYSTEMS

1983246C1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT CLUSTER ASSEMBLY - instrument gauges

1шт.

2

121604C1

ELECTRICAL GAUGE

GAUGE - fuel

1шт.

3

121605C2

ELECTRICAL GAUGE

GAUGE - coolant temperature

1шт.

4

121606C1

ELECTRICAL GAUGE

GAUGE - oil pressure

1шт.

5

121607C1

METER

GAUGE - voltmeter

1шт.

6

121608C1

GASKET

COVER - bezel, includes gasket

1шт.

7

1979357C1

LENS

LENS - lamp, oil pressure, brake, temperature and ampere

1шт.

8

187597C1

LENS

LENS - warning lamp, shaker and elevator drive

1шт.

9

121611C1

SOCKET

SOCKET - lamp

8шт.

10

W10478

LAMP

LAMP - Type C-2F, No. 194

8шт.

11

265-13512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - oval head cross recessed, No. 10-16 x 3/4 inch

4шт.

12

225-14210

NUT,#10-32

NUT, #10-32

4шт.

13

1987322C2

TACHOMETER

TACHOMETER - engine

1шт.

13

1935114C2

REMAN-ELECT GAUGE

Tachometer - engine, remanufactured (replaces 1935068C2)

1шт.

13

1935113C2

CORE GAUGE ELECT

Core-Electrical Gauge Return Number - tachometer, use this part number to return for credit when using a remanufactured assembly

1шт.

14

265-13512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - oval head cross recessed, No. 10-16 x 3/4 inch

4шт.

21

REF

INSTRUCTION

BLOCK - fuse (See Page 4-15)

3шт.

22

506504C1

TERMINAL CONNECTOR,Female, 1 - 2 mm2

TERMINAL - fuse block (Type L10)

1шт.

23

506498C1

TERMINAL CONNECTOR

TERMINAL - fuse block (Type L11)

1шт.

24

A149801

FUSE,Lt Blue, 15 Amp

FUSE - 15 ampere (Light blue), fuse block

2шт.

24

A149800

FUSE,10 Amp

FUSE - 10 ampere (Red), fuse block

5шт.

24

A149799

FUSE

FUSE - 7.5 ampere (Brown)(if equipped), fuse block

3шт.

24

A149804

FUSE

FUSE - 30 ampere (Light green), fuse block

1шт.

24

A149798

FUSE

FUSE - 5 ampere (Tan), fuse block

2шт.

24

A149796

FUSE

FUSE - 3 ampere (Violet), fuse block

2шт.

27

1280162C3

SUPPORT

SUPPORT - fuse block

1шт.

28

937875R1

SCREW,Serr, 1/4" - 20

SCREW - slotted truss head, 1/4 NC x 3/4 inch, fuse and fuse block

2шт.

29

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT - flanged lock, 1/4 inch NC, fuse and fuse block

2шт.

30

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

BOLT - self-tapping, 1/4 x 1/2 inch, fuse and fuse block

2шт.
