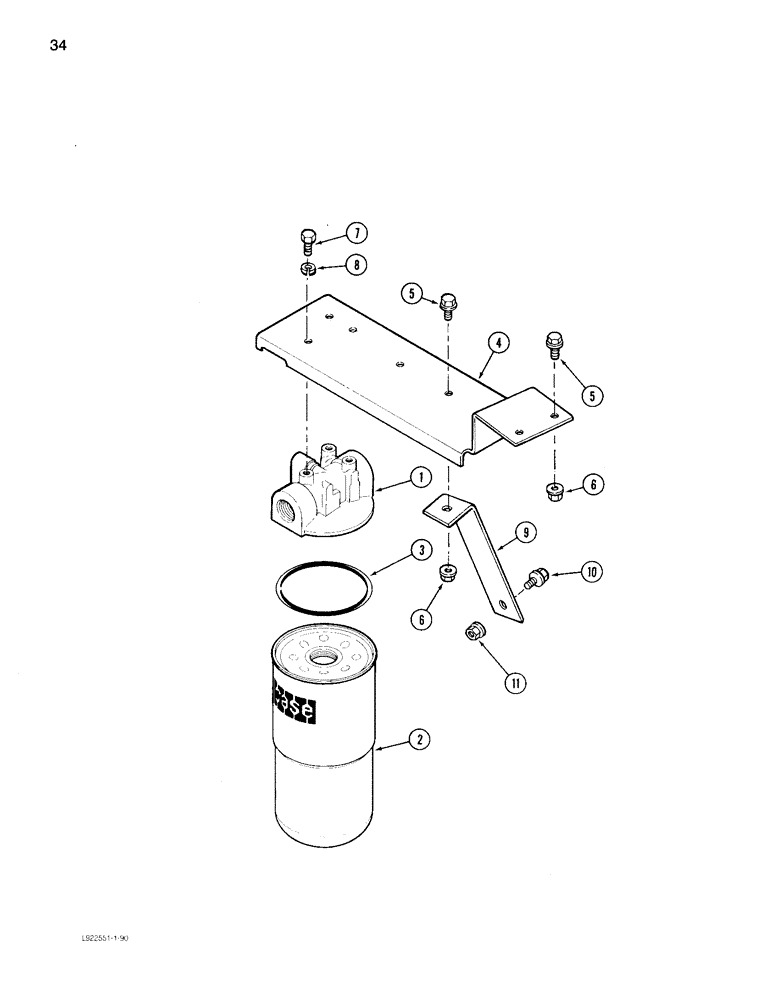

Запчасти Case IH 1640 (34) - HYDRAULIC CHARGE FILTER (35) - HYDRAULIC SYSTEMS

87784C91

FILTER ASSY

FILTER ASSEMBLY - hydraulic, used with corn and grain units

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

2

A177605

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

Part of Element Service Kit P/N 1329214C1

1шт.

3

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

GASKET - filter

1шт.

Part of Element Service Kit P/N 1329214C1

1шт.

1329214C1

HYDRAULIC OIL FILTER

KIT - element service, Includes: Ref. 2 and 3, charge filter mounting

1шт.

4

1347113C2

SUPPORT

- charge pump filter, mounting

1шт.

5

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch, charge filter mounting

4шт.

6

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, self-locking, 3/8 inch NC, charge filter mounting

4шт.

7

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

Charge filter mounting Hex, 3/8"-16 x 5/8", G5, Full Thd

3шт.

8

492-11038

LOCK WASHER,3/8"

charge filter mounting 3/8"

3шт.

9

1347116C2

SUPPORT

BRACKET - charge filter support, mounting

1шт.

10

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch, mounting

2шт.

11

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, self-locking, 3/8 inch NC, charge filter mounting

2шт.
