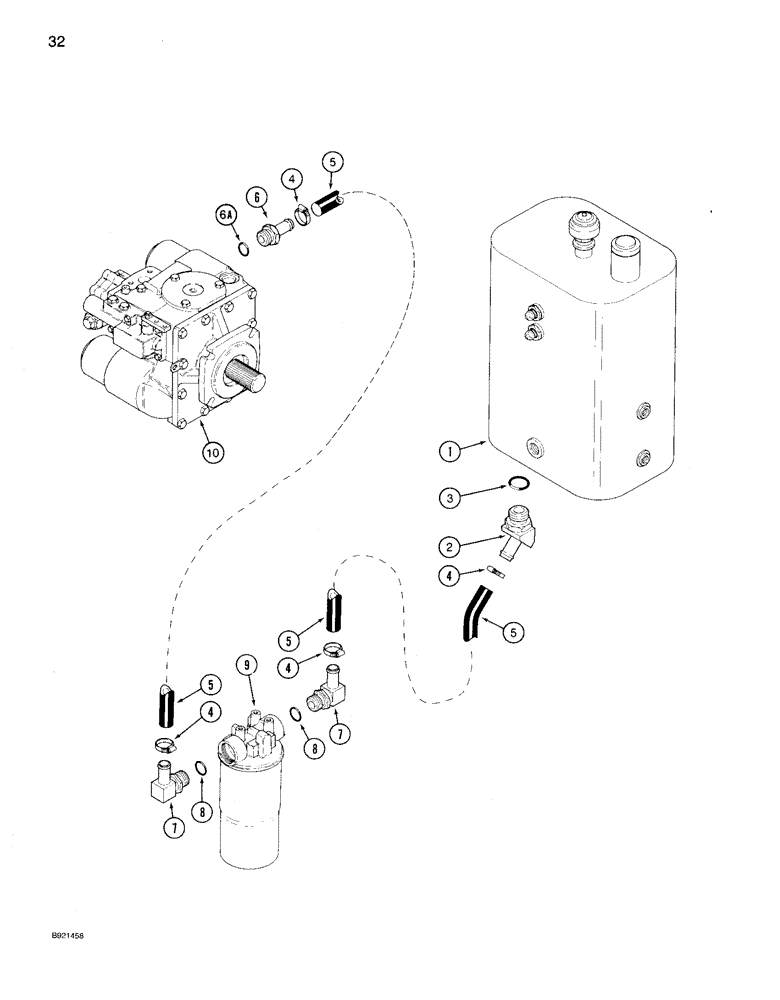

Запчасти Case IH 1640 (32) - HYDROSTATIC PUMP SYSTEM, RESERVOIR TO PUMP (29) - HYDROSTATIC DRIVE

1

1986534C3

RESERVOIR

ASSEMBLY - hydraulic, (see page 31)

1шт.

2

217-317

FITTING,45 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

(Elbow), Adj. 45º, 1 1/4" Hose x 1 5/8"-12 ORB Beaded

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

4

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

CLAMP, HOSE, 1.25/2.125 HD Worm, W/liner

4шт.

5

REF

INSTRUCTION

HOSE - 1-1/4 inch ID x 660 mm long, cut from 1541953C1 bulk roll

2шт.

6

217-184

FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

6a

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

7

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

ELBOW, 90°, 1 1/4" Hose x 1 5/8"-12 ORB Beaded, Adjustable

2шт.

8

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

2шт.

9

87784C91

FILTER ASSY

FILTER ASSEMBLY - charge pump suction (see page 35)

1шт.

10

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic (see page 6-25 or 6-33)

1шт.
