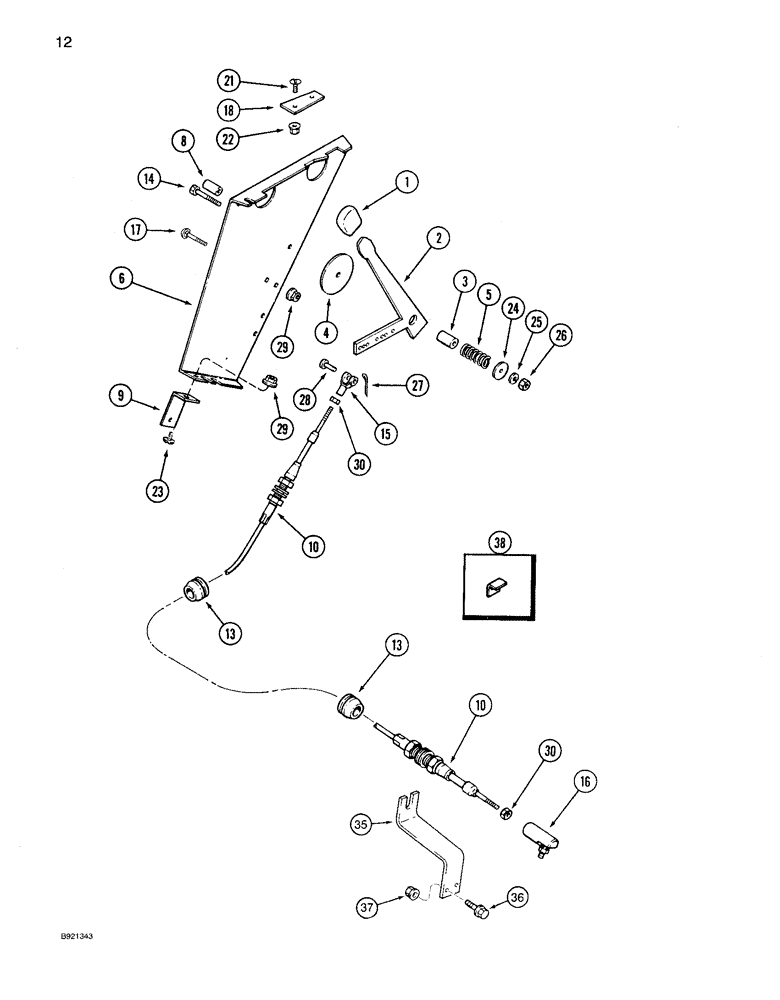

Запчасти Case IH 1640 (12) - THROTTLE CONTROL (10) - ENGINE

1

1259760C1

BALL KNOB

KNOB - throttle lever

1шт.

2

1301183C95

LEVER ASSY.

LEVER - throttle control

1шт.

3

154397C1

SPACER,5/8" Tube x 1 1/4"

- 5/8 x 1-1/4 inch tube

1шт.

4

941133C1

WASHER

- throttle lever

1шт.

5

PO22

SPRING

- throttle control lever

1шт.

6

1977092C4

SUPPORT

- throttle control

1шт.

8

K11064

SPACER,3/8" Pipe x 1 1/4"

- pipe, 3/8 x 1-1/4 inch

2шт.

9

1301242C1

BRACKET

ANGLE - throttle support

1шт.

10

1329389C1

CABLE

- throttle

1шт.

13

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- throttle cable grain tank

2шт.

14

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

15

117824

YOKE

CLEVIS - No. 10-32 x 1-9/16 inch

1шт.

16

1541861C1

BALL JOINT

JOINT - ball, throttle cable

1шт.

17

12-632

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 2", G2

2шт.

18

1329861C1

PLATE

- throttle control, North America only

1шт.

21

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

BOLT - slotted truss head, 1/4 NC x 1/2 inch

4шт.

22

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch NC

4шт.

23

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 x 3/4 inch

2шт.

24

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

1шт.

25

492-11038

LOCK WASHER,3/8"

1шт.

26

425-106

NUT,3/8"-16, Cl 5

1шт.

27

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

1шт.

28

20155R1

CLEVIS PIN,3/16" x .719"

PIN - clevis, 3/16 x 23/32 inch

1шт.

29

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

4шт.

30

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.

35

1541850C1

SUPPORT

- throttle cable rear

1шт.

36

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

- hex flanged, 1/4 NC x 3/4 inch

2шт.

37

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

38

1338891C4

ANGLE

BRACKET - throttle stop

1шт.
