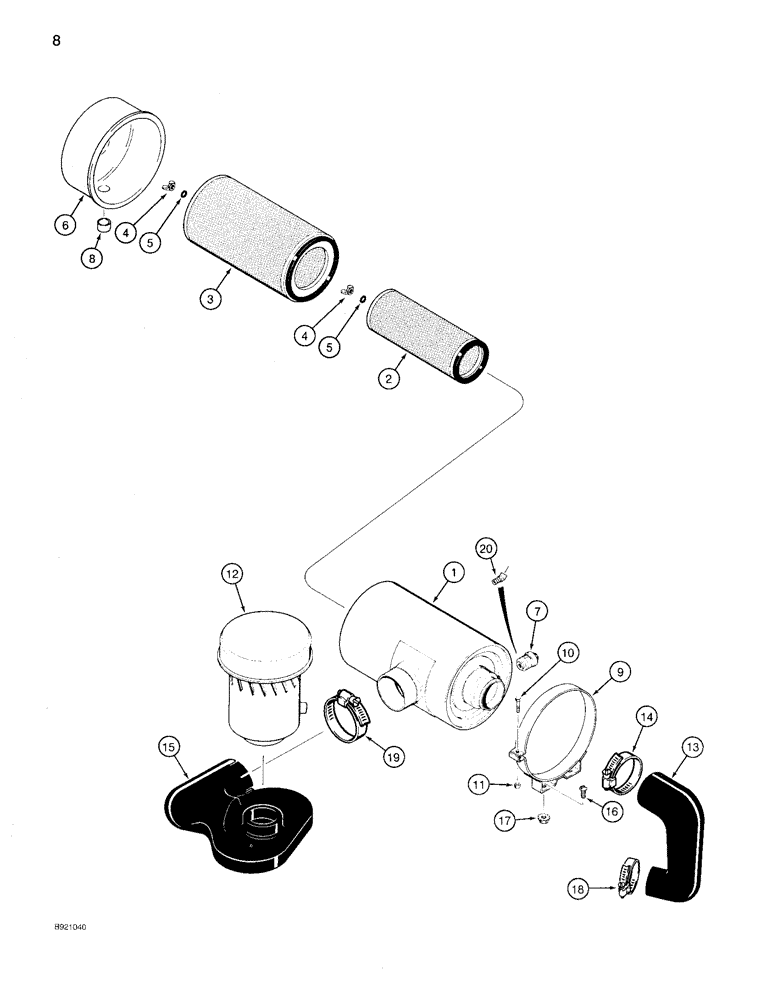

Запчасти Case IH 1640 (08) - AIR CLEANER (10) - ENGINE

1547900C2

AIR CLEANER

CLEANER ASSEMBLY - air, engine

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

2

A171256

AIR FILTER

ELEMENT - secondary

1шт.

3

A171255

AIR FILTER

ELEMENT - primary

1шт.

4

1547947C1

WING NUT

NUT - wing, element retainer

2шт.

5

1547948C1

SEALING WASHER

WASHER - retainer nut

2шт.

6

1547910C1

COVER

- air cleaner, includes wing nut

1шт.

7

1541610C1

INDICATOR

- air restriction

1шт.

8

353-174

PLUG

- cover, aspiration outlet

1шт.

9

A56089

SUPPORT

BAND - air cleaner mounting, induction system

2шт.

10

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Air induction system Hex, 5/16"-18 x 2", G5

2шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Air induction system

2шт.

12

1275728C2

PRECLEANER

- air induction, system, includes clamp and hardware

1шт.

13

1541864C2

LARGE HOSE

HOSE - turbo inlet, air induction system

1шт.

14

214-3296

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm, W/ Liner

CLAMP, HOSE, , Air cleaner outlet, Induction system 5.25/6.125 HD Worm, W/liner

1шт.

15

1541943C1

TUBE

PLENUM - air cleaner inlet, induction system

1шт.

16

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss head, 3/8 NC x 1 inch, air induction system

4шт.

17

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC, air induction system

4шт.

18

214-3264

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm, W/ Liner

CLAMP - hose, turbocharger inlet, air induction system

1шт.

19

214-32112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm, W/ Liner

CLAMP, HOSE, , Plenum to air cleaner inlet, Induction system 6.25/7.125 HD Worm, W/liner

1шт.

20

9409927

ELBOW,45 Degree, 1/8"-27 NPTF, Fem x 1/8"-27 NPTF Male

- 45 degree, 1/8 inch PT, brass, air induction system

1шт.
