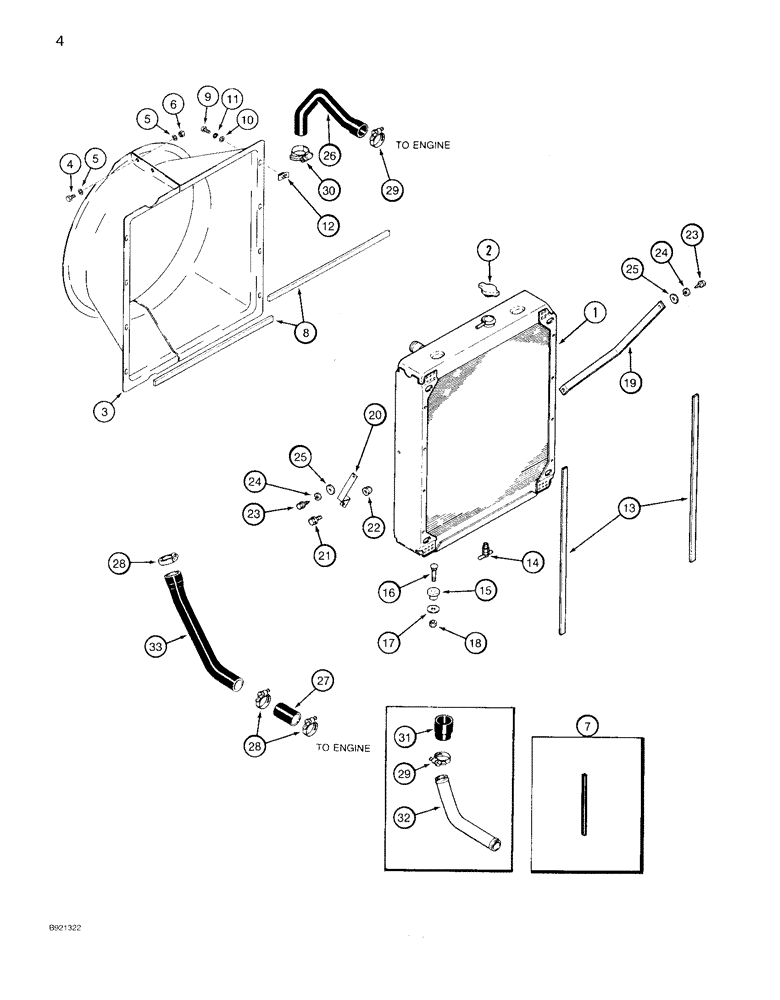

Запчасти Case IH 1640 (04) - RADIATOR AND ATTACHING PARTS (10) - ENGINE

1

105943A2

RADIATOR - cooling system

1шт.

Ref. 1 - 105943A2 is the PRODUCTION part number. Use A189067 for service (7/12/99 Tech)

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

106200A1

ORIFICE RING

SHROUD - fan

1шт.

4

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 mm x 20 mm

4шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL - radiator, 12-5/16 inch long (cut to length from 196707C1 bulk roll, 50 ft long)

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - radiator to shroud, 787 mm long (order 1319664C3, Serial Range: cut-length)

2шт.

9

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

8шт.

10

495-81001

WASHER,5/16"

- flat, 3/8 x 1-1/8 x 1/64 inch

8шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

12

131-636

SPRING NUT,J, Ret, 5/16"-18

- J-type, 5/16 inch NC

8шт.

13

NSS

NOT SOLD SEPARAT

SEAL - radiator to air chute, 875 mm long, (order 195917C2, Serial Range: cut-length)

2шт.

14

86982771

VALVE

- pipe, 1/4 inch, drain cock

1шт.

15

R29799

SHOCK ABSORBER

ABSORBER - radiator

2шт.

16

434-736

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

BOLT - carriage, 7/16 NC x 2-1/4 inch

2шт.

17

495-81013

WASHER,.469" x 1 3/4" x .120"

4шт.

18

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

2шт.

19

1329863C1

SUPPORT

- radiator, left

1шт.

20

1347184C1

SUPPORT

- radiator, right

1шт.

21

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

2шт.

22

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

23

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

2шт.

24

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

25

134238R1

WASHER

- flat, 11/32 x 1 x 3/64 inch

2шт.

26

1329919C2

HOSE,44.00 mm ID, 50.80 mm ID x 447.9 mm, SAE 20R4 CLASS D1

44.00 mm ID, 50.80 mm ID x 447.90 mm, SAE 20R4, CLASS D-I, Engine Outlet

1шт.

27

1329393C1

RADIATOR HOSE,50.80 mm ID x 101.60, SAE 20R4 CLASS D-1 OR SAE 20R1 CLASS B

50.80 mm ID x 101.60, SAE 20R4 CLASS D-1 OR SAE 20R1 CLASS B

1шт.

28

224910C1

HOSE CLAMP,1.75/2.625 HD Worm, W/liner

CLAMP - hose retaining (used with Ref 27 and 33)

3шт.

29

224910C1

HOSE CLAMP,1.75/2.625 HD Worm, W/liner

CLAMP - hose retaining (used with Ref 26, 31, or 32)

4шт.

30

1979481C1

HOSE CLAMP,2.25/3.125 HD Worm, W/liner

CLAMP - hose retaining

1шт.

31

1329898C1

HOSE,50.80 - 60 mm ID x 80.00 mm, SAE 20R4 CLASS D 1

50.80 mm ID, 60.00 mm ID x 80.00 mm, SAE 20R4, CLASS D-I, Engine Inlet, If Equipped

1шт.

32

1329893C1

TUBE,50.8 mm OD, 345, 292 mm Length

- engine inlet (if equipped)

1шт.

33

1979373C2

LARGE HOSE

HOSE - engine inlet

1шт.
